CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
301671638
Arrival, 400 MHz
2023-07-06 12:09:39.798 UTC
Right ascension
347.373°
Declination
48.795°

Loading

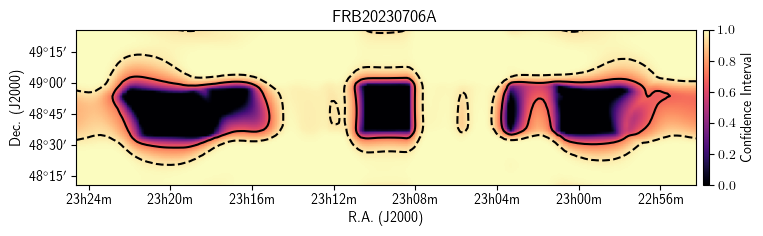

Localization

Loading

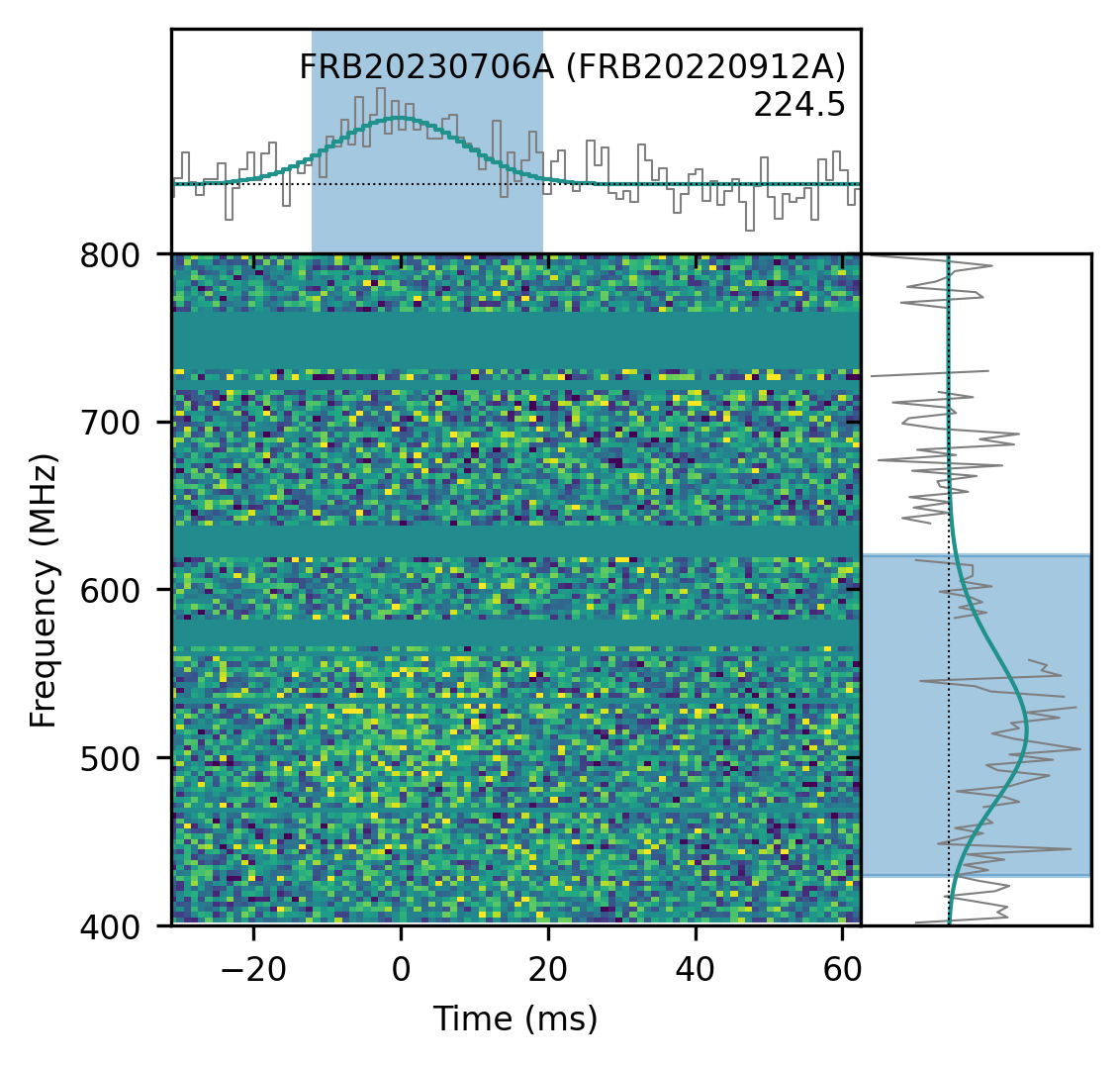

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.373± 0.244degrees
dec
48.795± 0.244degrees
gl
106.16degrees
gb
-10.73degrees

Detection and dispersion

bonsai_snr
8.7
snr_fitb
13.8
bonsai_dm
225.6pc cm⁻³
dm_fitb
224.4948± 0.53060pc cm⁻³
dm_exc_ne2001
98.5pc cm⁻³
dm_exc_ymw16
101.4pc cm⁻³

Arrival time

mjd_400
60131.50671063021± 6.19 × 10⁻⁸MJD
mjd_inf
60131.50664331217± 1.71 × 10⁻⁷MJD

Burst shape

bc_width
0.03146s
width_fitb
0.008824± 0.0009667s
scat_time
0.000000s

Flux and spectrum

flux
0.31± 0.15Jy
fluence
3.32± 0.78Jy ms
peak_freq
516.1MHz
low_freq
429.6MHz
high_freq
620.2MHz
sp_idx
34.75± 7.75
sp_run
-68.29± 14.21

Exposure and fluence thresholds

exp_up
114.22± 65.57hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1820688.468
dof
1820874
flag_frac
0.314
