CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
302485335
Arrival, 400 MHz
2023-07-12 11:45:51.017 UTC
Right ascension
347.287°
Declination
48.696°

Loading

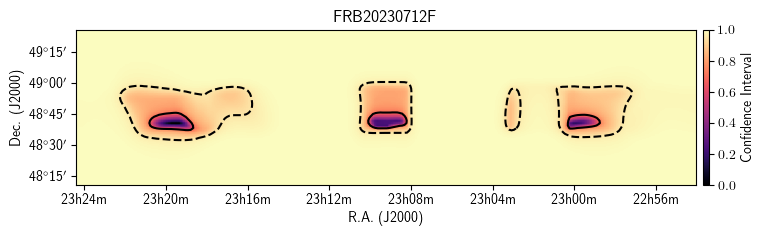

Localization

Loading

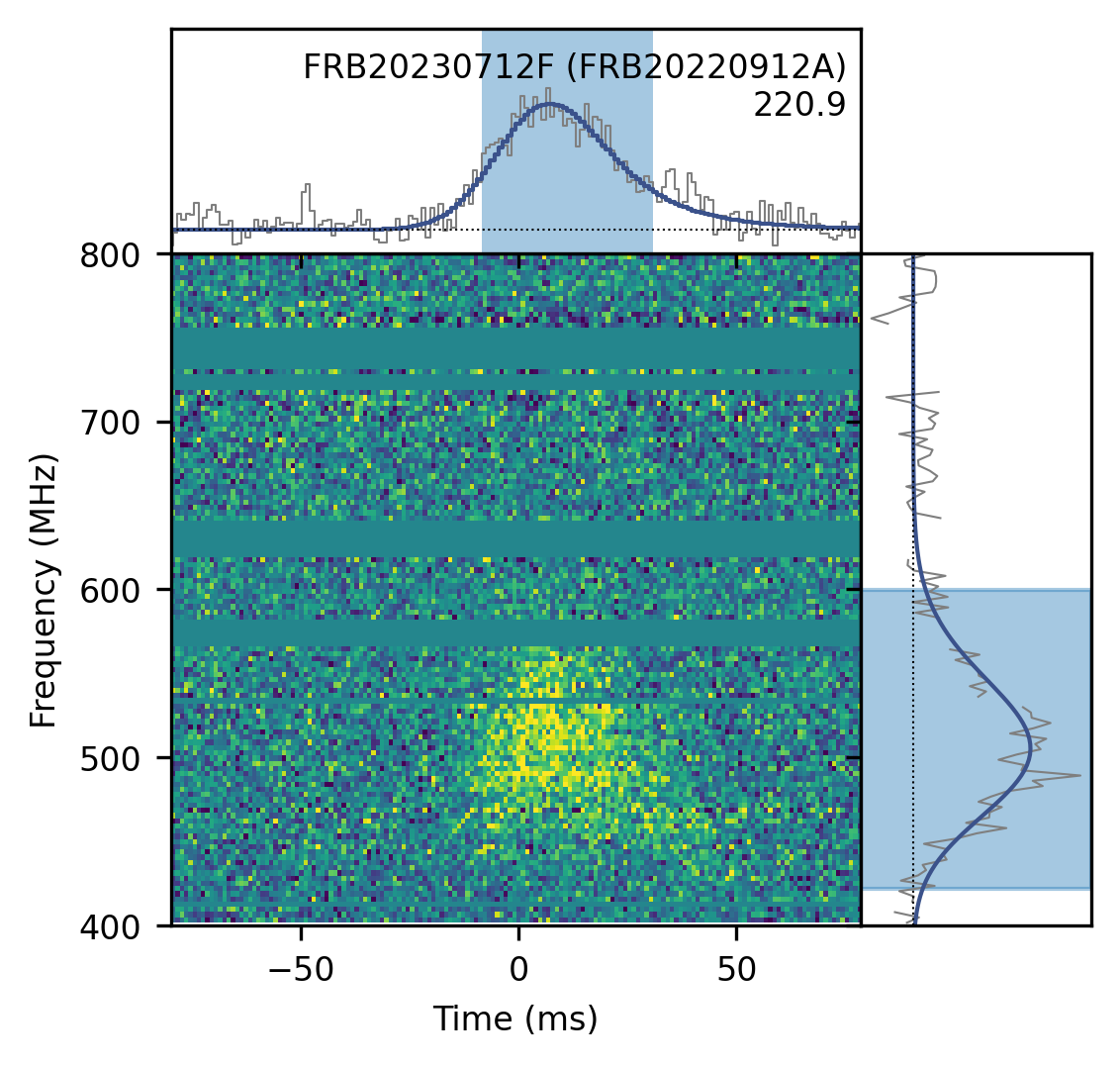

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.287± 0.156degrees
dec
48.696± 0.064degrees
gl
106.07degrees
gb
-10.80degrees

Detection and dispersion

bonsai_snr
22.3
snr_fitb
54.6
bonsai_dm
223.2pc cm⁻³
dm_fitb
220.9165± 0.25746pc cm⁻³
dm_exc_ne2001
95.7pc cm⁻³
dm_exc_ymw16
98.7pc cm⁻³

Arrival time

mjd_400
60137.49017380776± 3.50 × 10⁻⁸MJD
mjd_inf
60137.490107562706± 8.48 × 10⁻⁸MJD

Burst shape

bc_width
0.03932s
width_fitb
0.010274± 0.0006394s
scat_time
0.030752± 0.0033787s

Flux and spectrum

flux
0.64± 0.31Jy
fluence
14.13± 4.51Jy ms
peak_freq
502.9MHz
low_freq
421.8MHz
high_freq
599.7MHz
sp_idx
33.99± 1.97
sp_run
-74.37± 4.18

Exposure and fluence thresholds

exp_up
114.23± 61.36hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1797650.344
dof
1800623
flag_frac
0.322
