CHIME/FRBPublic data

FRB 20230716A

One-off burst

Event ID
303405507
Arrival, 400 MHz
2023-07-16 18:18:41.618 UTC
Right ascension
88.993°
Declination
38.400°

Loading

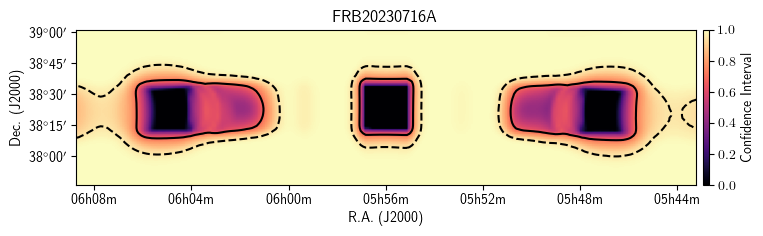

Localization

Loading

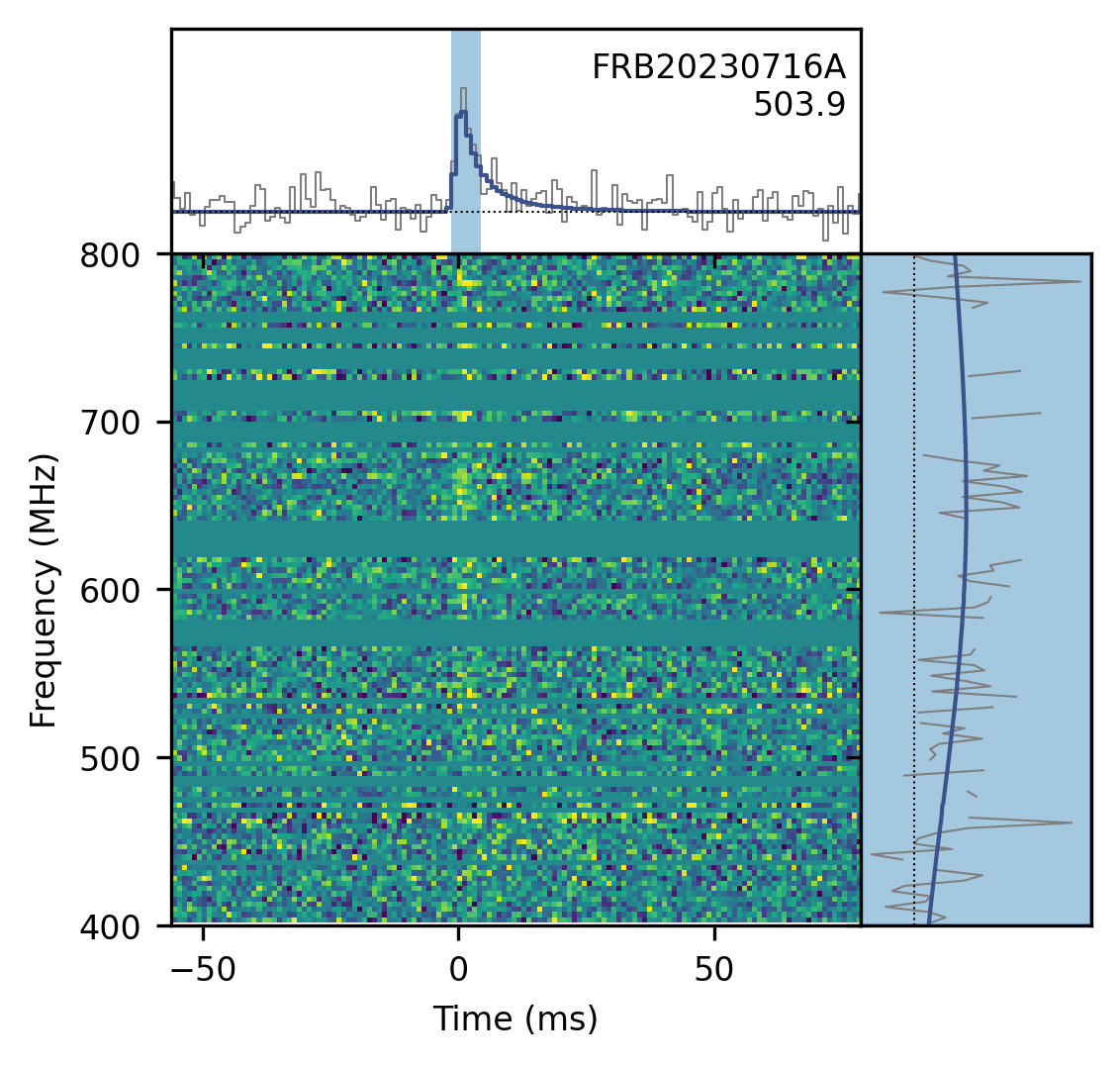

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
88.993± 0.217degrees
dec
38.400± 0.227degrees
gl
172.93degrees
gb
6.67degrees

Detection and dispersion

bonsai_snr
10.9
snr_fitb
15.4
bonsai_dm
503.4pc cm⁻³
dm_fitb
503.9159± 0.06566pc cm⁻³
dm_exc_ne2001
349.5pc cm⁻³
dm_exc_ymw16
282.2pc cm⁻³

Arrival time

mjd_400
60141.762981685184± 1.32 × 10⁻⁸MJD
mjd_inf
60141.76283057863± 2.37 × 10⁻⁸MJD

Burst shape

bc_width
0.00590s
width_fitb
0.000631± 0.0001674s
scat_time
0.019684± 0.0031381s

Flux and spectrum

flux
0.69± 0.21Jy
fluence
3.17± 0.80Jy ms
peak_freq
505.7MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
1.34± 1.52
sp_run
-2.86± 1.92

Exposure and fluence thresholds

exp_up
95.23± 57.14hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.4Jy ms
low_ft_95
—
up_ft_95
4.2Jy ms

Fit quality

chi_sq
1632074.213
dof
1632305
flag_frac
0.385
