CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
308809206
Arrival, 400 MHz
2023-08-07 10:05:12.205 UTC
Right ascension
347.087°
Declination
48.671°

Loading

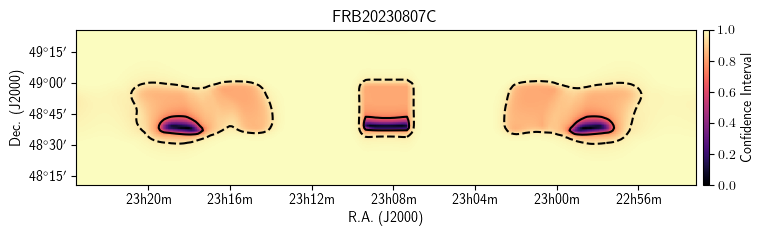

Localization

Loading

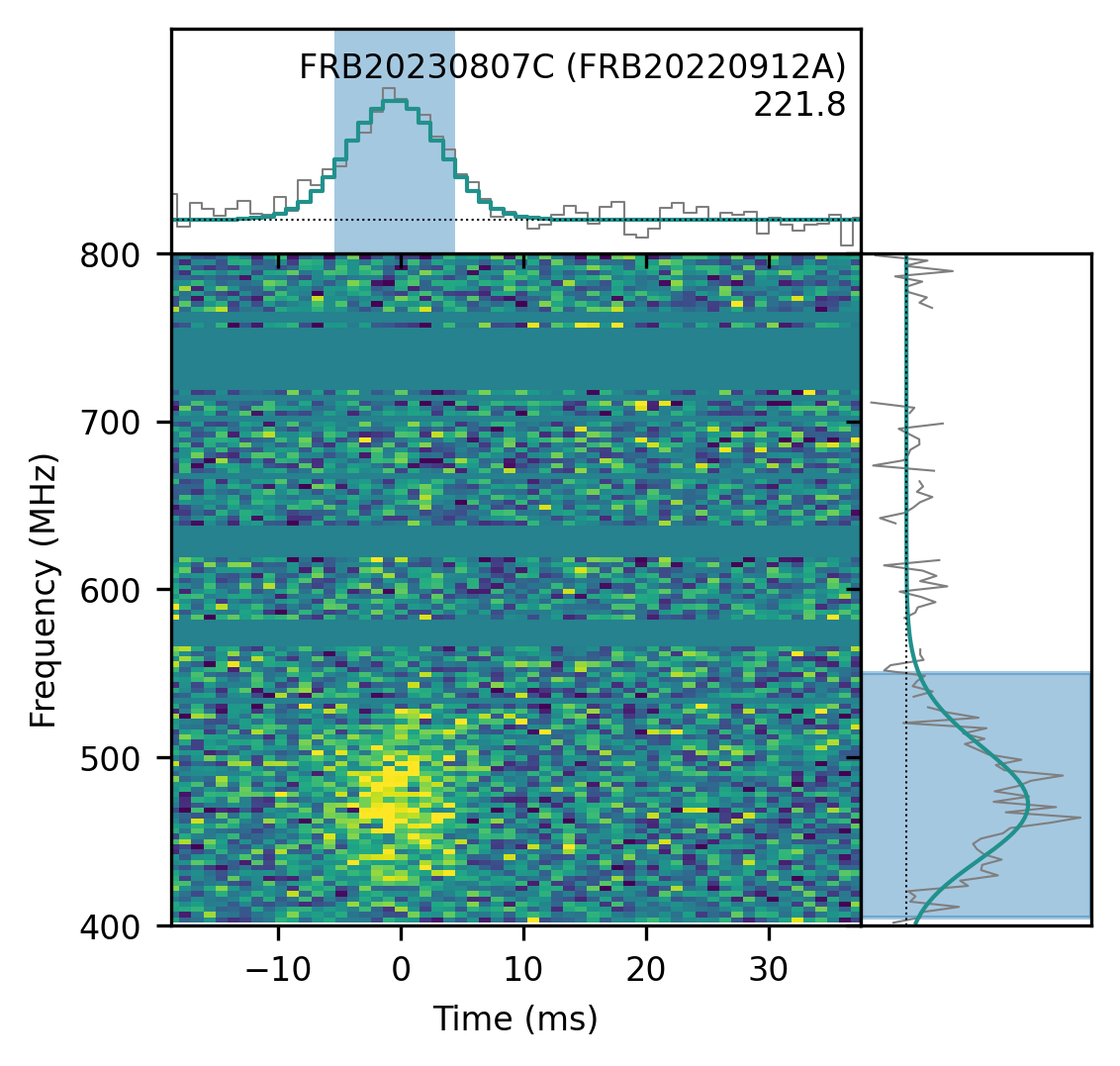

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.087± 0.183degrees
dec
48.671± 0.055degrees
gl
105.94degrees
gb
-10.77degrees

Detection and dispersion

bonsai_snr
17.3
snr_fitb
30.3
bonsai_dm
220.8pc cm⁻³
dm_fitb
221.7894± 0.09638pc cm⁻³
dm_exc_ne2001
96.2pc cm⁻³
dm_exc_ymw16
99.4pc cm⁻³

Arrival time

mjd_400
60163.4202801519± 8.35 × 10⁻⁹MJD
mjd_inf
60163.4202136451± 3.01 × 10⁻⁸MJD

Burst shape

bc_width
0.00983s
width_fitb
0.003751± 0.0001807s
scat_time
0.000000s

Flux and spectrum

flux
0.54± 0.23Jy
fluence
4.89± 1.19Jy ms
peak_freq
472.2MHz
low_freq
405.0MHz
high_freq
550.5MHz
sp_idx
32.33± 3.19
sp_run
-97.75± 9.30

Exposure and fluence thresholds

exp_up
100.84± 68.96hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1770551.573
dof
1771464
flag_frac
0.333
