CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
312304238
Arrival, 400 MHz
2023-08-18 09:23:29.377 UTC
Right ascension
347.471°
Declination
48.688°

Loading

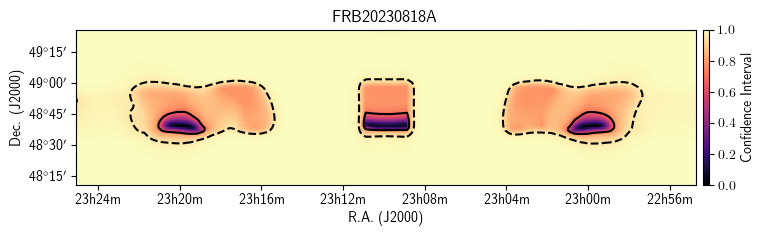

Localization

Loading

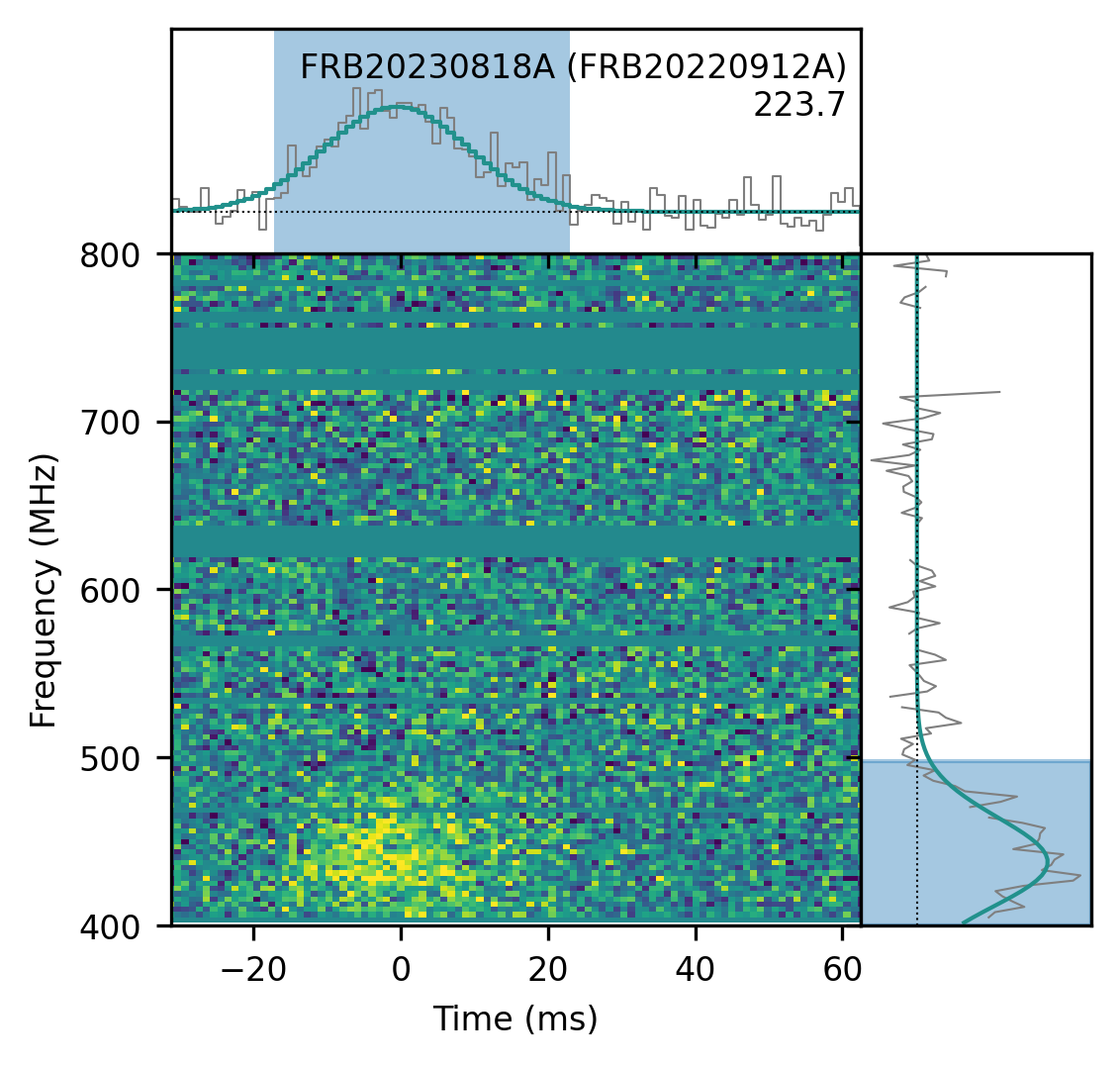

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.471± 0.184degrees
dec
48.688± 0.070degrees
gl
106.18degrees
gb
-10.85degrees

Detection and dispersion

bonsai_snr
16.9
snr_fitb
32.2
bonsai_dm
221.6pc cm⁻³
dm_fitb
223.7245± 0.25843pc cm⁻³
dm_exc_ne2001
99.0pc cm⁻³
dm_exc_ymw16
102.0pc cm⁻³

Arrival time

mjd_400
60174.39131223887± 1.40 × 10⁻⁸MJD
mjd_inf
60174.39124515181± 7.87 × 10⁻⁸MJD

Burst shape

bc_width
0.04030s
width_fitb
0.009849± 0.0004496s
scat_time
0.000000s

Flux and spectrum

flux
0.39± 0.18Jy
fluence
8.61± 2.24Jy ms
peak_freq
437.8MHz
low_freq
400.2MHz
high_freq
497.9MHz
sp_idx
24.92± 2.81
sp_run
-138.80± 13.68

Exposure and fluence thresholds

exp_up
105.89± 66.89hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1802508.975
dof
1803540
flag_frac
0.320
