Repeater
FRB20220912A
Event ID
314742941
Arrival, 400 MHz
2023-09-01 08:27:47.209 UTC
Right ascension
347.306°
Declination
48.803°

Loading

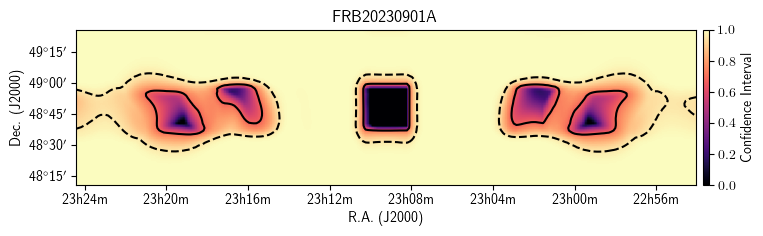

Localization

Loading

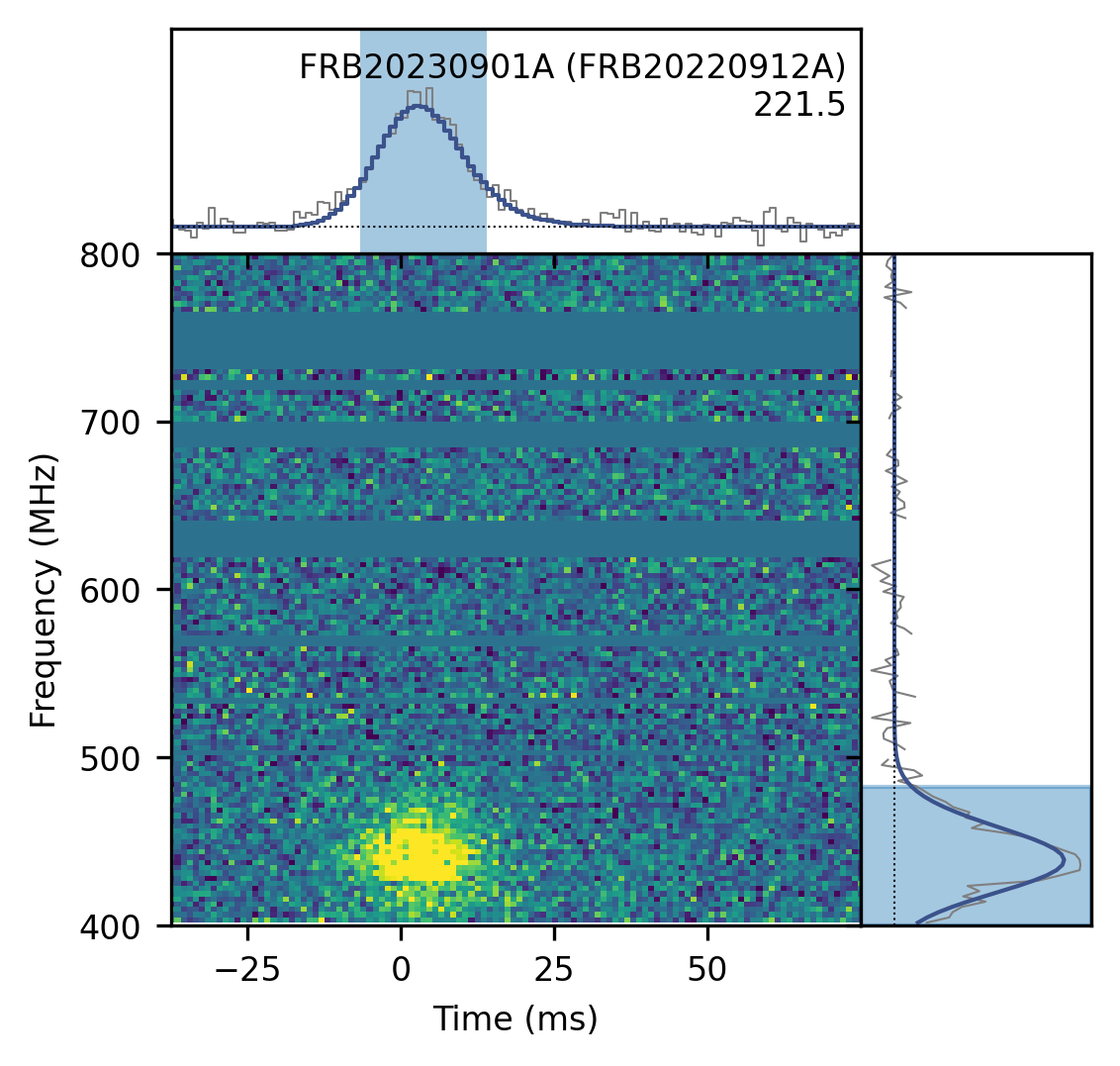

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.306± 0.186degrees
dec
48.803± 0.189degrees
gl
106.13degrees
gb
-10.70degrees

Detection and dispersion

bonsai_snr
19.5
snr_fitb
67.2
bonsai_dm
224.8pc cm⁻³
dm_fitb
221.5101± 0.11771pc cm⁻³
dm_exc_ne2001
95.3pc cm⁻³
dm_exc_ymw16
98.2pc cm⁻³

Arrival time

mjd_400
60188.3526297295± 8.75 × 10⁻⁹MJD
mjd_inf
60188.35256330646± 3.64 × 10⁻⁸MJD

Burst shape

bc_width
0.02064s
width_fitb
0.005994± 0.0002866s
scat_time
0.007007± 0.0010375s

Flux and spectrum

flux
0.78± 0.35Jy
fluence
12.23± 3.79Jy ms
peak_freq
438.4MHz
low_freq
400.2MHz
high_freq
482.4MHz
sp_idx
45.82± 2.37
sp_run
-251.56± 12.20

Exposure and fluence thresholds

exp_up
121.43± 61.65hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1719492.289
dof
1723997
flag_frac
0.350
