CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
316537714
Arrival, 400 MHz
2023-09-07 08:00:37.572 UTC
Right ascension
345.168°
Declination
48.791°

Loading

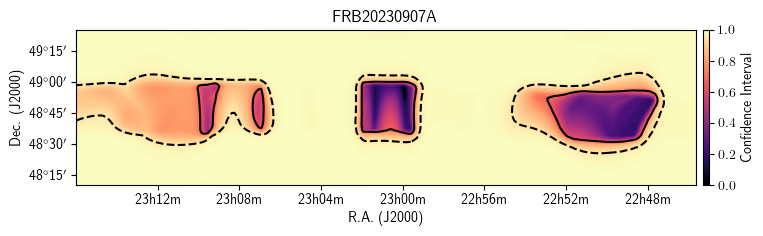

Localization

Loading

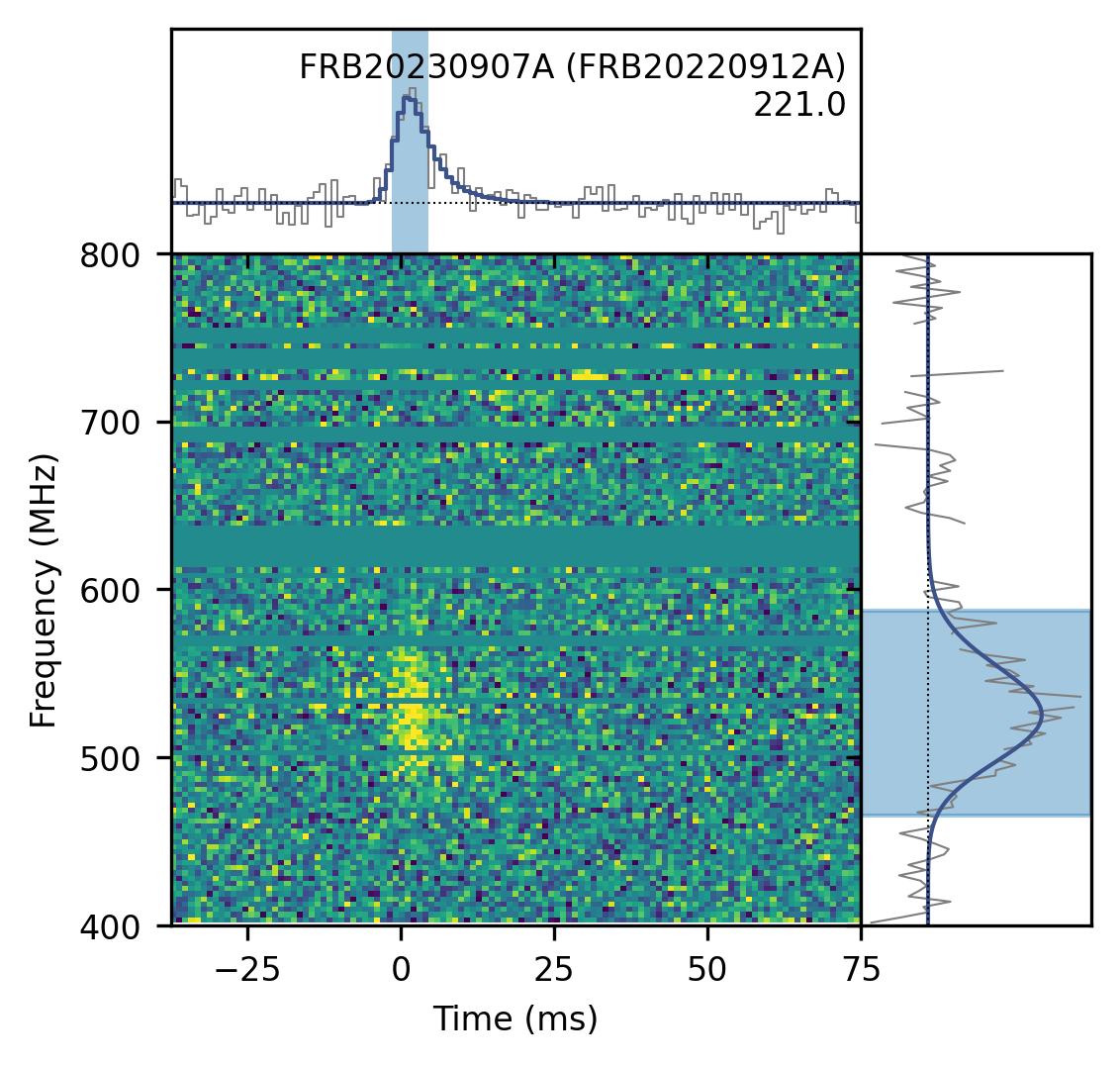

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
345.168± 0.221degrees
dec
48.791± 0.210degrees
gl
104.81degrees
gb
-10.14degrees

Detection and dispersion

bonsai_snr
10.3
snr_fitb
24.6
bonsai_dm
221.2pc cm⁻³
dm_fitb
220.9972± 0.12486pc cm⁻³
dm_exc_ne2001
88.8pc cm⁻³
dm_exc_ymw16
91.9pc cm⁻³

Arrival time

mjd_400
60194.333768194345± 1.61 × 10⁻⁸MJD
mjd_inf
60194.33370192511± 4.07 × 10⁻⁸MJD

Burst shape

bc_width
0.00590s
width_fitb
0.001668± 0.0002115s
scat_time
0.011112± 0.0015966s

Flux and spectrum

flux
0.44± 0.20Jy
fluence
2.95± 0.63Jy ms
peak_freq
522.7MHz
low_freq
465.4MHz
high_freq
587.1MHz
sp_idx
91.21± 10.16
sp_run
-170.75± 18.70

Exposure and fluence thresholds

exp_up
120.97± 61.93hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1756285.425
dof
1756883
flag_frac
0.338
