Repeater
FRB20220912A
Event ID
317003045
Arrival, 400 MHz
2023-09-08 07:55:25.780 UTC
Right ascension
344.860°
Declination
48.790°

Loading

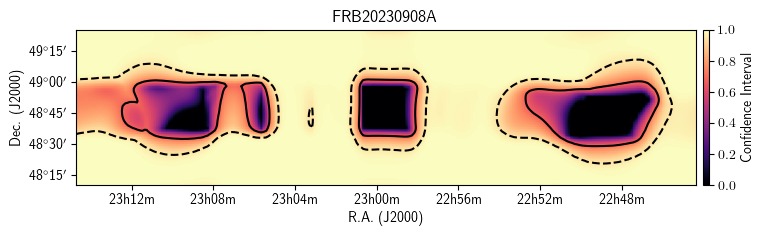

Localization

Loading

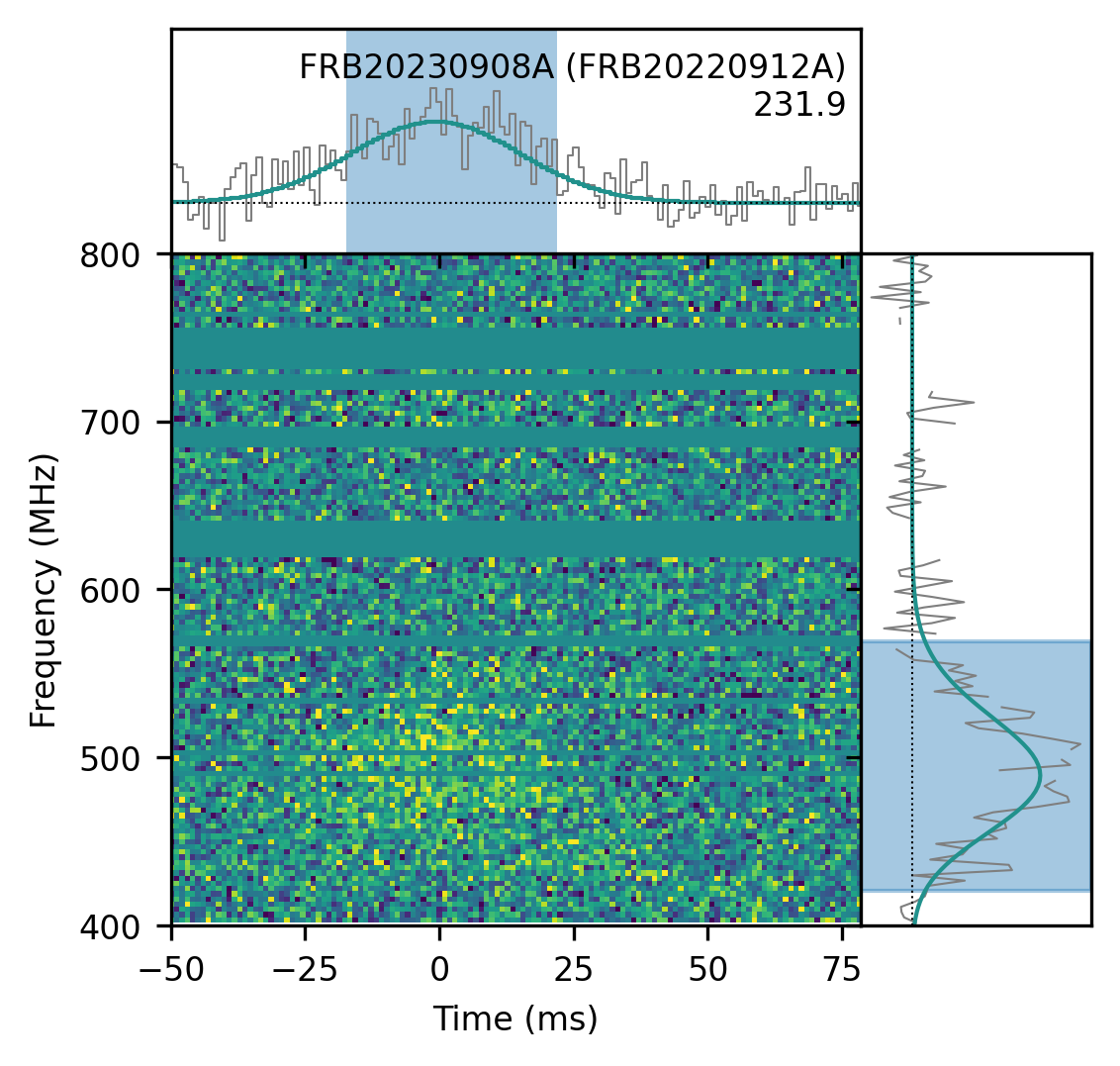

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
344.860± 0.236degrees
dec
48.790± 0.231degrees
gl
104.62degrees
gb
-10.06degrees

Detection and dispersion

bonsai_snr
10.3
snr_fitb
23.8
bonsai_dm
228.9pc cm⁻³
dm_fitb
231.9430± 0.72972pc cm⁻³
dm_exc_ne2001
98.8pc cm⁻³
dm_exc_ymw16
102.0pc cm⁻³

Arrival time

mjd_400
60195.33015949447± 7.69 × 10⁻⁸MJD
mjd_inf
60195.33008994297± 2.32 × 10⁻⁷MJD

Burst shape

bc_width
0.03932s
width_fitb
0.015755± 0.0009124s
scat_time
0.000000s

Flux and spectrum

flux
0.27± 0.20Jy
fluence
4.32± 1.64Jy ms
peak_freq
489.3MHz
low_freq
420.7MHz
high_freq
569.1MHz
sp_idx
40.51± 4.93
sp_run
-100.77± 11.91

Exposure and fluence thresholds

exp_up
115.25± 65.56hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1740121.454
dof
1740684
flag_frac
0.344
