CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
317341304
Arrival, 400 MHz
2023-09-09 07:57:12.090 UTC
Right ascension
347.523°
Declination
48.796°

Loading

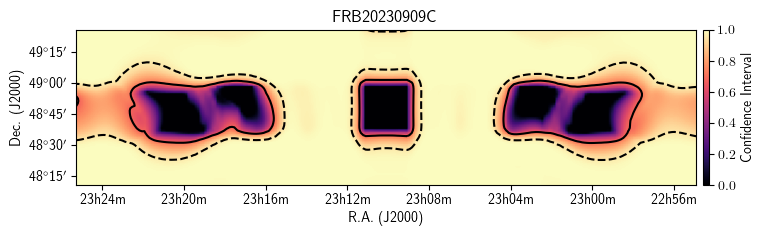

Localization

Loading

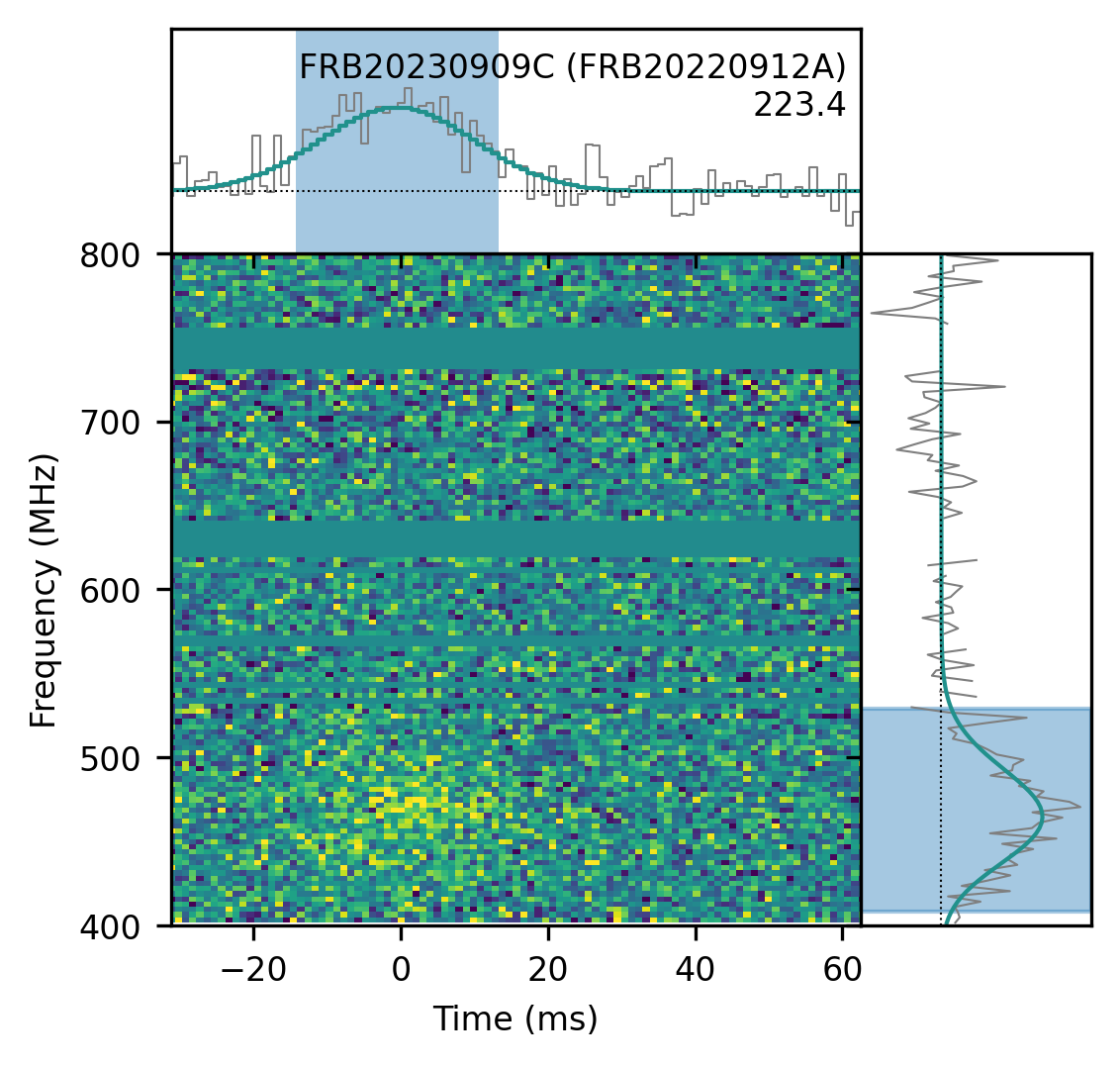

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.523± 0.219degrees
dec
48.796± 0.227degrees
gl
106.26degrees
gb
-10.77degrees

Detection and dispersion

bonsai_snr
10.8
snr_fitb
20.4
bonsai_dm
221.6pc cm⁻³
dm_fitb
223.4179± 0.42479pc cm⁻³
dm_exc_ne2001
97.8pc cm⁻³
dm_exc_ymw16
100.7pc cm⁻³

Arrival time

mjd_400
60196.33138993148± 3.55 × 10⁻⁸MJD
mjd_inf
60196.33132293638± 1.32 × 10⁻⁷MJD

Burst shape

bc_width
0.02753s
width_fitb
0.010492± 0.0007658s
scat_time
0.000000s

Flux and spectrum

flux
0.31± 0.21Jy
fluence
4.26± 1.41Jy ms
peak_freq
464.8MHz
low_freq
408.5MHz
high_freq
528.8MHz
sp_idx
41.37± 6.42
sp_run
-138.29± 20.31

Exposure and fluence thresholds

exp_up
116.68± 64.65hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1804426.471
dof
1804836
flag_frac
0.320
