CHIME/FRBPublic data
Repeater
FRB20190224D
Event ID
318523767
Arrival, 400 MHz
2023-09-14 01:44:39.325 UTC
Right ascension
358.140°
Declination
89.779°

Loading

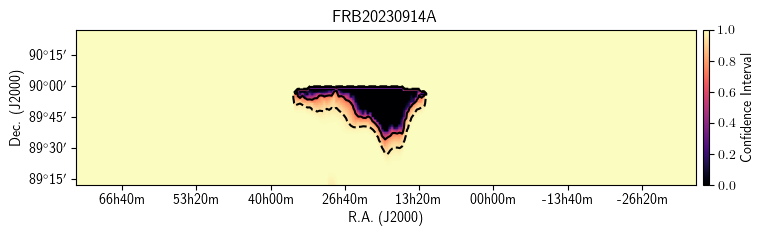

Localization

Loading

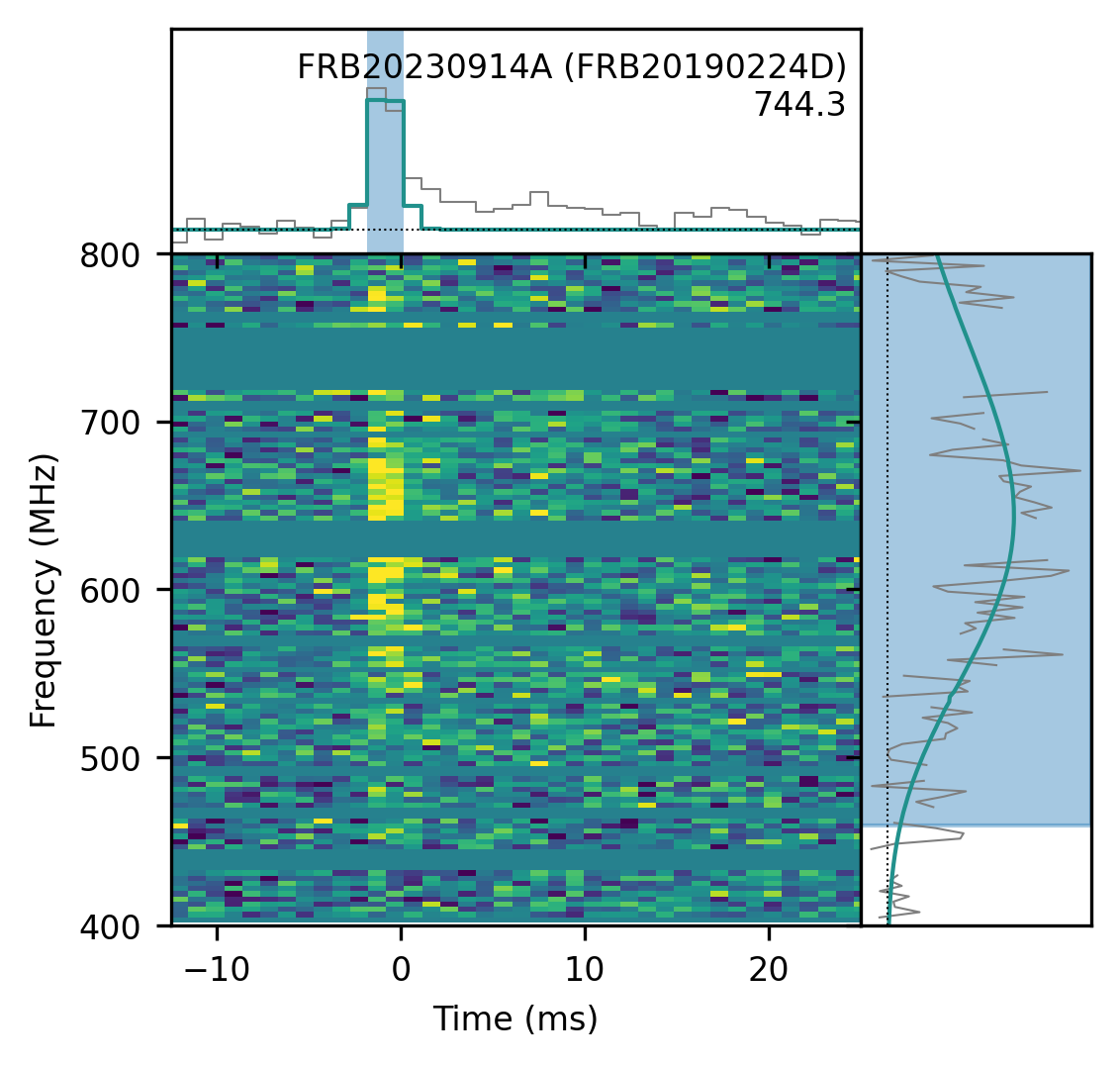

Waterfall

Notes

  • Intrachannel dispersion was not modeled during fit.
  • The pulse emission region was extended during fluence estimation.
  • Flux and fluence. Flux/fluence estimate is invalid due to an unphysical negative value likely caused by errors in baseline subtraction or burst window selection.

Position

ra
358.140± 0.678degrees
dec
89.779± 0.211degrees
gl
122.87degrees
gb
26.91degrees

Detection and dispersion

bonsai_snr
22.1
snr_fitb
26.8
bonsai_dm
743.6pc cm⁻³
dm_fitb
744.3338± 0.01636pc cm⁻³
dm_exc_ne2001
689.6pc cm⁻³
dm_exc_ymw16
691.5pc cm⁻³

Arrival time

mjd_400
60201.07267737002± 3.05 × 10⁻⁹MJD
mjd_inf
60201.07245417066± 5.78 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000643± 0.0000365s
scat_time
0.000000s

Flux and spectrum

flux
—
fluence
—
peak_freq
644.0MHz
low_freq
459.5MHz
high_freq
800.2MHz
sp_idx
19.21± 2.57
sp_run
-20.19± 2.79

Exposure and fluence thresholds

exp_up
13393.31± 4509.01hour
exp_low
3328.02± 3074.57hour
low_ft_68
3.6Jy ms
up_ft_68
3.3Jy ms
low_ft_95
9.6Jy ms
up_ft_95
9.0Jy ms

Fit quality

chi_sq
1764435.401
dof
1765146
flag_frac
0.335
