CHIME/FRBPublic data
Repeater
FRB20180916B
Event ID
20887865
Arrival, 400 MHz
2018-11-20 05:56:06.222 UTC
Right ascension
29.208°
Declination
65.735°

Loading

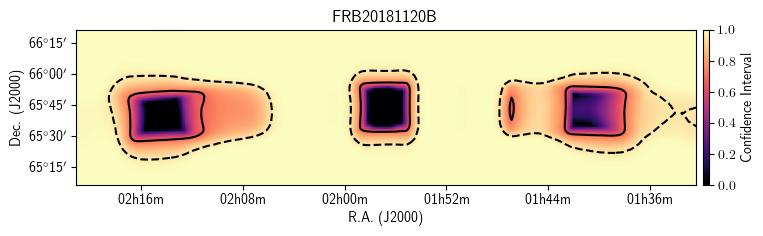

Localization

Loading

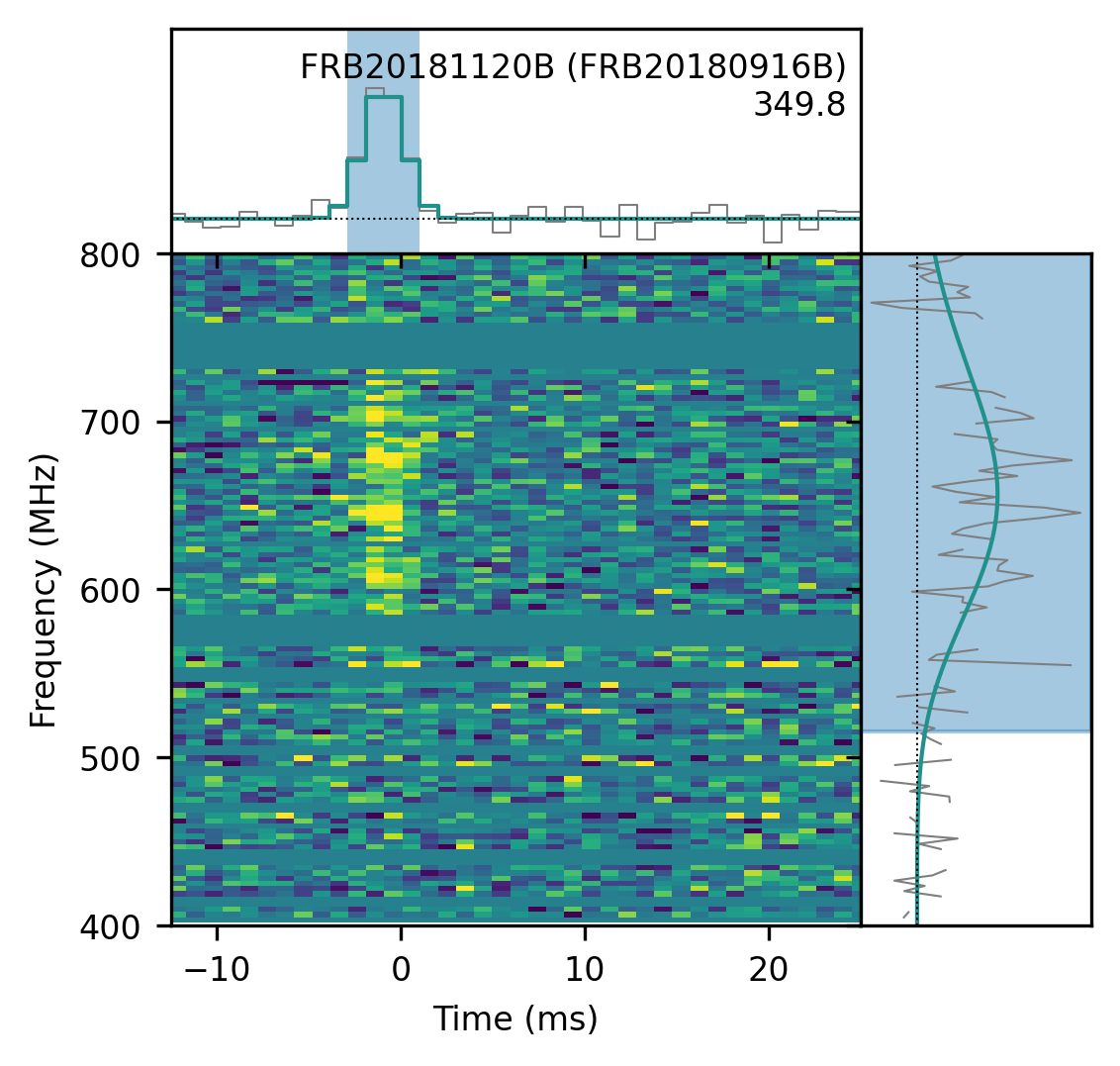

Waterfall

Notes

  • This event was included in Catalog 1.
  • The pulse emission region was extended during fluence estimation.

Position

ra
29.208± 0.201degrees
dec
65.735± 0.199degrees
gl
129.59degrees
gb
3.71degrees

Detection and dispersion

bonsai_snr
18.2
snr_fitb
22.0
bonsai_dm
351.0pc cm⁻³
dm_fitb
349.7617± 0.05531pc cm⁻³
dm_exc_ne2001
150.8pc cm⁻³
dm_exc_ymw16
26.2pc cm⁻³

Arrival time

mjd_400
58442.24729424101± 1.04 × 10⁻⁸MJD
mjd_inf
58442.24718935985± 1.96 × 10⁻⁸MJD

Burst shape

bc_width
0.00393s
width_fitb
0.001067± 0.0000645s
scat_time
0.000000s

Flux and spectrum

flux
1.12± 0.38Jy
fluence
2.72± 0.75Jy ms
peak_freq
656.5MHz
low_freq
515.4MHz
high_freq
800.2MHz
sp_idx
38.92± 6.48
sp_run
-39.31± 6.40

Exposure and fluence thresholds

exp_up
197.81± 103.32hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
5.3Jy ms
low_ft_95
0.0Jy ms
up_ft_95
11.8Jy ms

Fit quality

chi_sq
1408914.194
dof
1409394
flag_frac
0.469
