Repeater
FRB20180814A
Event ID
20899716
Arrival, 400 MHz
2018-11-20 08:25:28.220 UTC
Right ascension
65.376°
Declination
73.651°

Loading

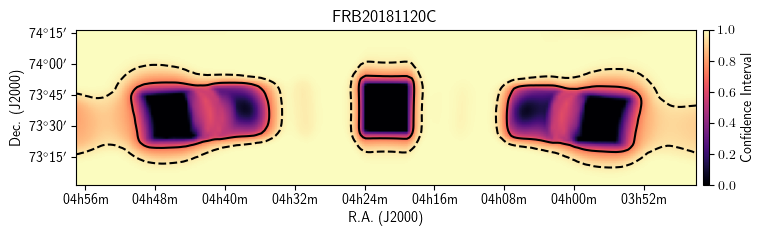

Localization

Loading

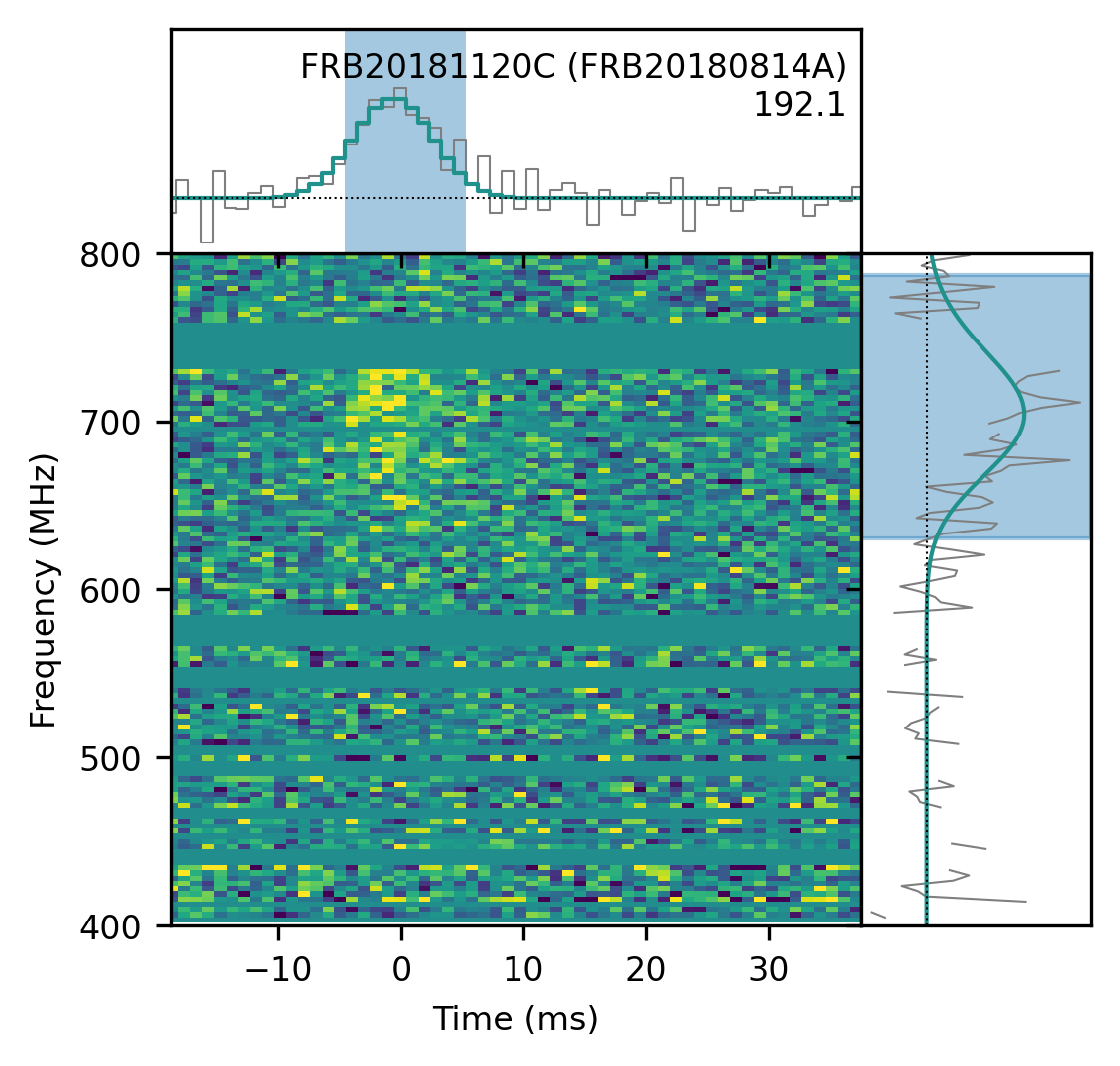

Waterfall

Notes

  • This event was included in Catalog 1.
  • The pulse emission region was extended during fluence estimation.

Position

ra
65.376± 0.223degrees
dec
73.651± 0.254degrees
gl
136.41degrees
gb
16.56degrees

Detection and dispersion

bonsai_snr
10.6
snr_fitb
16.5
bonsai_dm
190.9pc cm⁻³
dm_fitb
192.1414± 0.51439pc cm⁻³
dm_exc_ne2001
104.1pc cm⁻³
dm_exc_ymw16
83.1pc cm⁻³

Arrival time

mjd_400
58442.351021068076± 1.04 × 10⁻⁷MJD
mjd_inf
58442.35096345167± 1.86 × 10⁻⁷MJD

Burst shape

bc_width
0.00983s
width_fitb
0.003222± 0.0002993s
scat_time
0.000000s

Flux and spectrum

flux
0.42± 0.21Jy
fluence
3.92± 0.88Jy ms
peak_freq
704.2MHz
low_freq
630.3MHz
high_freq
786.8MHz
sp_idx
211.68± 35.93
sp_run
-187.28± 31.71

Exposure and fluence thresholds

exp_up
265.02± 156.23hour
exp_low
259.62± 63.74hour
low_ft_68
45.8Jy ms
up_ft_68
7.4Jy ms
low_ft_95
147.3Jy ms
up_ft_95
23.7Jy ms

Fit quality

chi_sq
1408802.478
dof
1409070
flag_frac
0.469
