FRB 20200113A

One-off burst

Event ID
68760798
Arrival, 400 MHz
2020-01-13 21:03:21.237 UTC
Right ascension
307.347°
Declination
75.769°

Loading

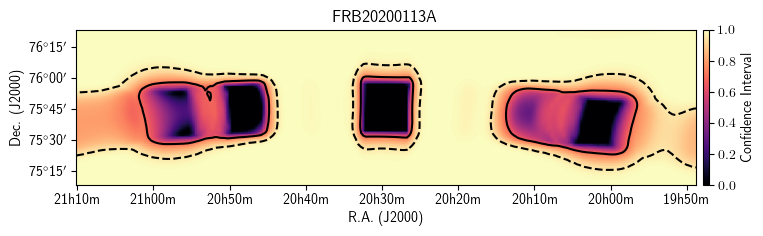

Localization

Loading

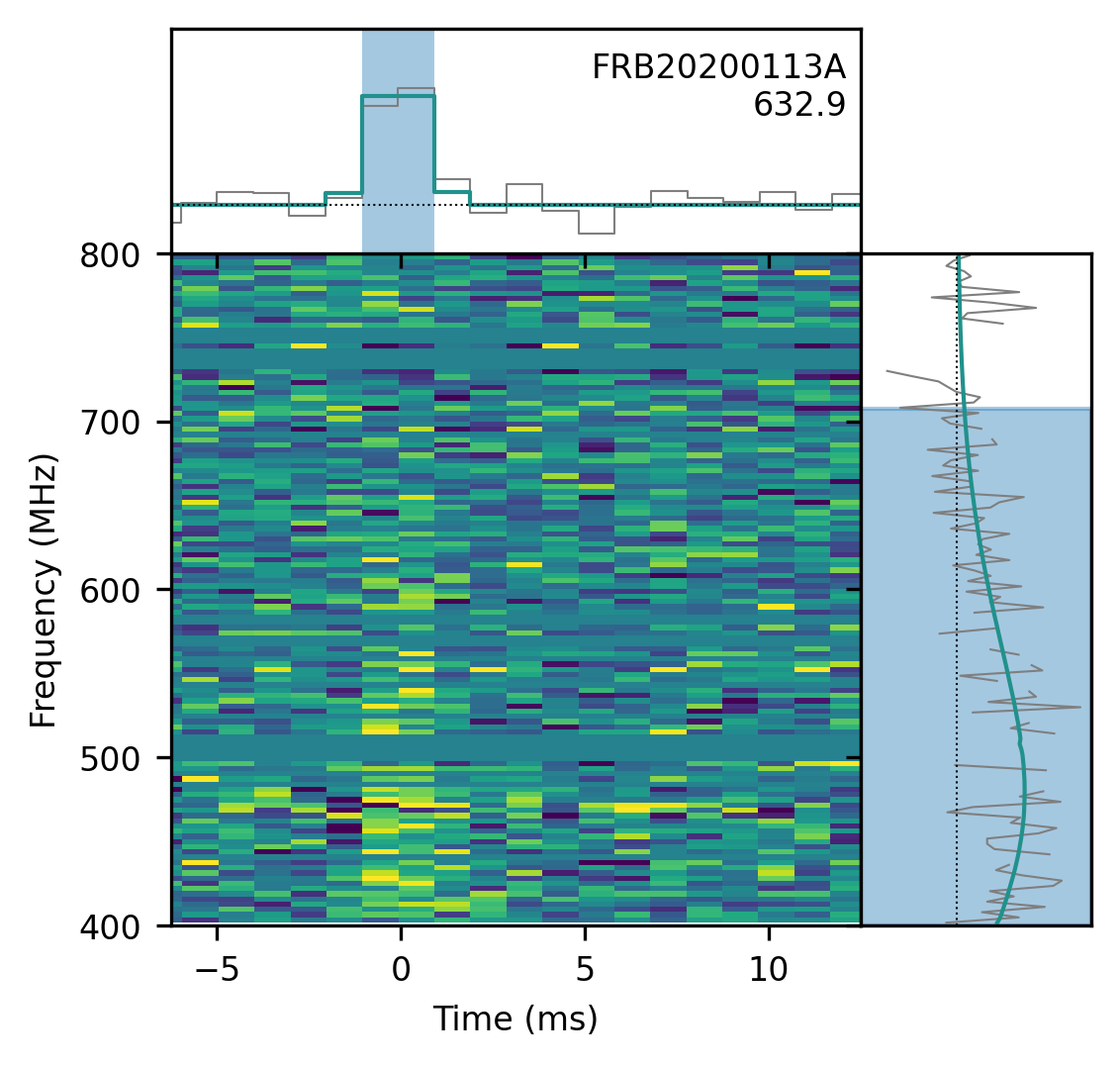

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
307.347± 0.214degrees
dec
75.769± 0.246degrees
gl
109.11degrees
gb
20.57degrees

Detection and dispersion

bonsai_snr
12.1
snr_fitb
15.3
bonsai_dm
632.4pc cm⁻³
dm_fitb
632.9441± 0.00641pc cm⁻³
dm_exc_ne2001
563.9pc cm⁻³
dm_exc_ymw16
560.7pc cm⁻³

Arrival time

mjd_400
58861.87732912869± 6.98 × 10⁻¹⁰MJD
mjd_inf
58861.87713933115± 2.04 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000422± 0.0000214s
scat_time
0.000000s

Flux and spectrum

flux
0.53± 0.23Jy
fluence
1.33± 0.49Jy ms
peak_freq
472.8MHz
low_freq
400.2MHz
high_freq
707.5MHz
sp_idx
4.73± 1.84
sp_run
-14.17± 3.58

Exposure and fluence thresholds

exp_up
288.51± 160.57hour
exp_low
277.46± 107.03hour
low_ft_68
6.2Jy ms
up_ft_68
1.2Jy ms
low_ft_95
11.4Jy ms
up_ft_95
2.3Jy ms

Fit quality

chi_sq
2103822.237
dof
2104050
flag_frac
0.207
