FRB 20200113B

One-off burst

Event ID
68708106
Arrival, 400 MHz
2020-01-13 15:02:26.425 UTC
Right ascension
217.942°
Declination
17.239°

Loading

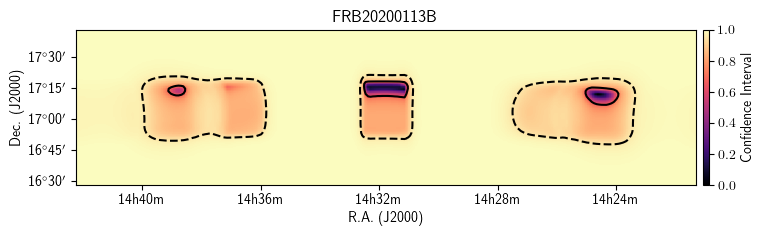

Localization

Loading

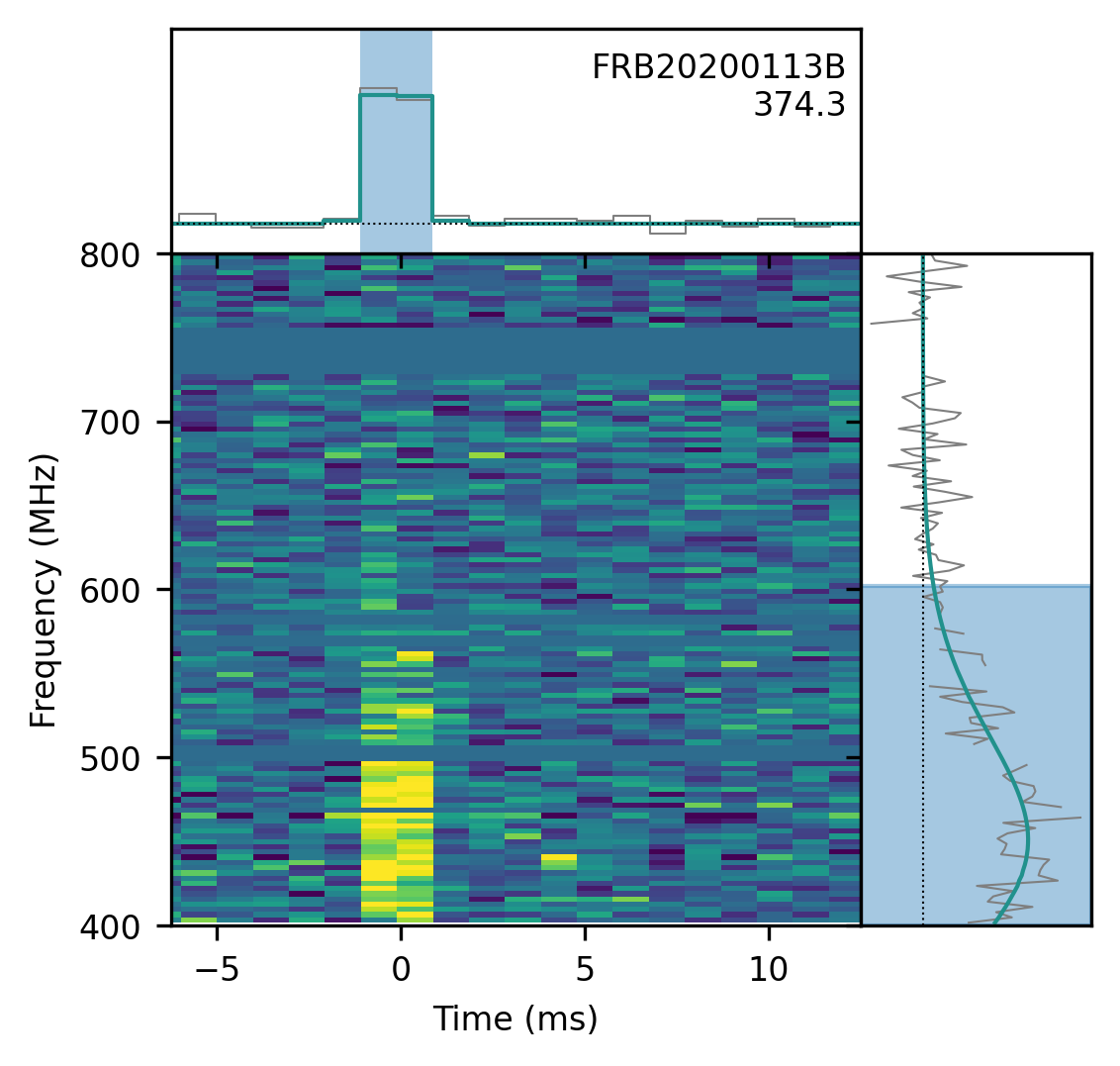

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
217.942± 0.177degrees
dec
17.239± 0.064degrees
gl
15.04degrees
gb
64.82degrees

Detection and dispersion

bonsai_snr
21.9
snr_fitb
36.0
bonsai_dm
373.6pc cm⁻³
dm_fitb
374.3156± 0.00161pc cm⁻³
dm_exc_ne2001
351.6pc cm⁻³
dm_exc_ymw16
352.0pc cm⁻³

Arrival time

mjd_400
58861.62669472985± 1.19 × 10⁻¹⁰MJD
mjd_inf
58861.62658248586± 4.97 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000248± 0.0000028s
scat_time
0.000000s

Flux and spectrum

flux
1.22± 0.46Jy
fluence
2.14± 0.70Jy ms
peak_freq
450.1MHz
low_freq
400.2MHz
high_freq
601.9MHz
sp_idx
6.41± 1.15
sp_run
-27.27± 3.45

Exposure and fluence thresholds

exp_up
82.81± 35.25hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.1Jy ms
low_ft_95
—
up_ft_95
2.0Jy ms

Fit quality

chi_sq
2137263.240
dof
2138556
flag_frac
0.194
