CHIME/FRBPublic data

FRB 20200213D

One-off burst

Event ID
72713970
Arrival, 400 MHz
2020-02-13 18:00:17.550 UTC
Right ascension
294.130°
Declination
43.056°

Loading

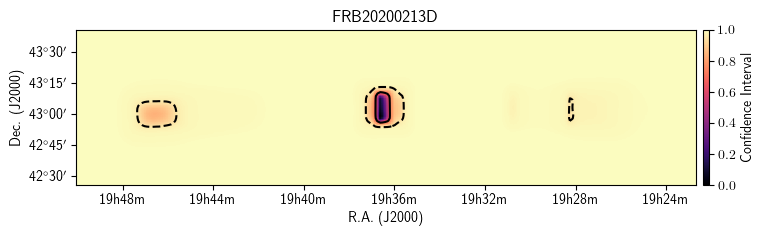

Localization

Loading

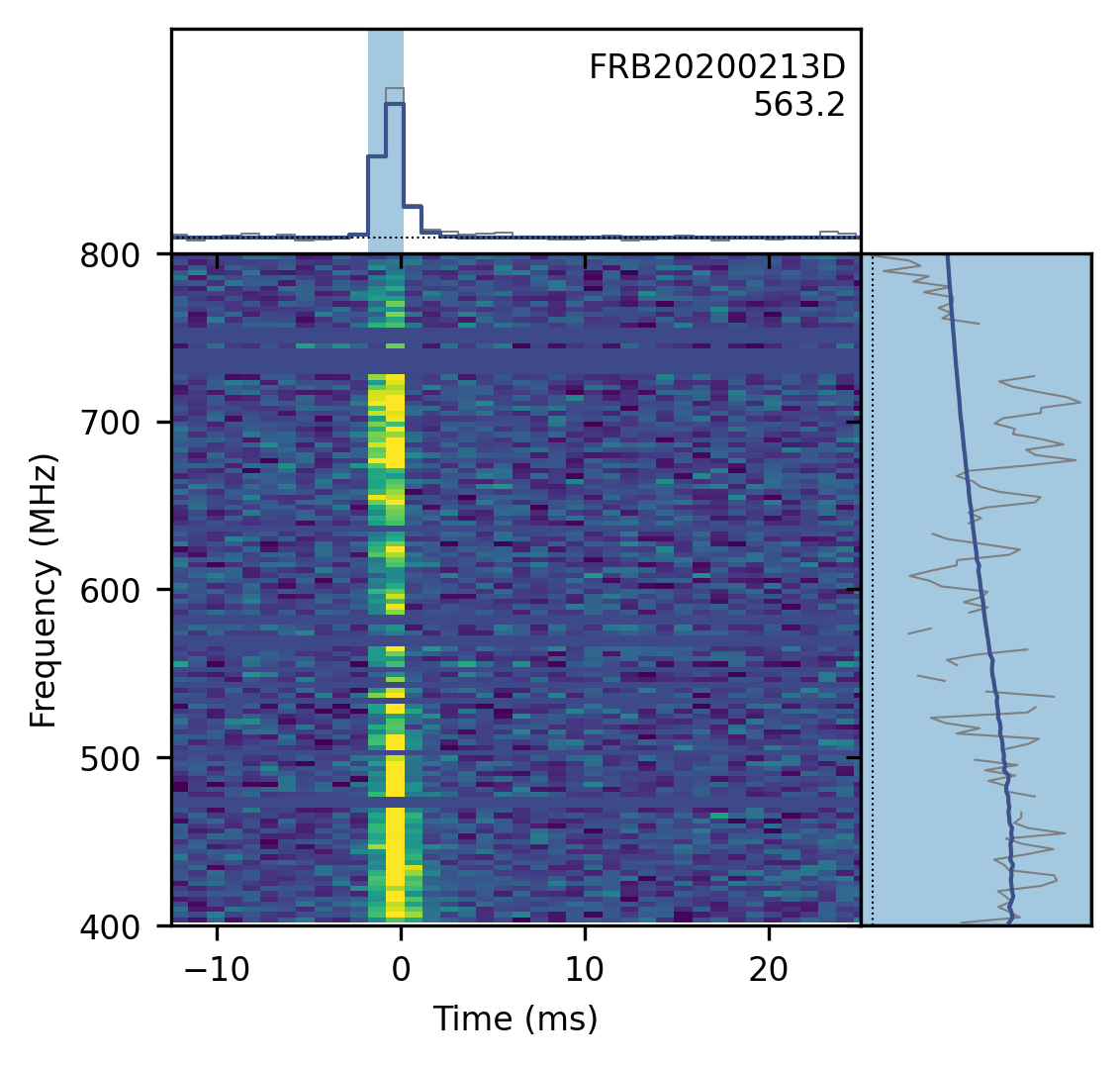

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
294.130± 0.058degrees
dec
43.056± 0.123degrees
gl
76.12degrees
gb
10.62degrees

Detection and dispersion

bonsai_snr
68.9
snr_fitb
90.4
bonsai_dm
561.3pc cm⁻³
dm_fitb
563.2049± 0.00097pc cm⁻³
dm_exc_ne2001
435.7pc cm⁻³
dm_exc_ymw16
430.8pc cm⁻³

Arrival time

mjd_400
58892.75020311966± 1.57 × 10⁻¹⁰MJD
mjd_inf
58892.750034234436± 3.28 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000350± 0.0000037s
scat_time
0.000856± 0.0000079s

Flux and spectrum

flux
1.32± 0.29Jy
fluence
3.10± 0.62Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-1.97± 0.21
sp_run
0.50± 0.30

Exposure and fluence thresholds

exp_up
148.62± 19.49hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.4Jy ms
low_ft_95
—
up_ft_95
0.7Jy ms

Fit quality

chi_sq
2132817.620
dof
2140985
flag_frac
0.193
