CHIME/FRBPublic data

FRB 20200213E

One-off burst

Event ID
72688117
Arrival, 400 MHz
2020-02-13 06:20:27.276 UTC
Right ascension
87.007°
Declination
88.108°

Loading

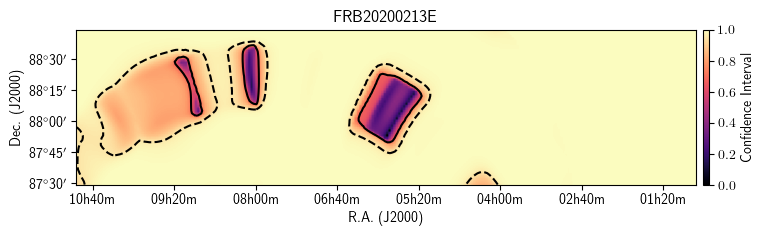

Localization

Loading

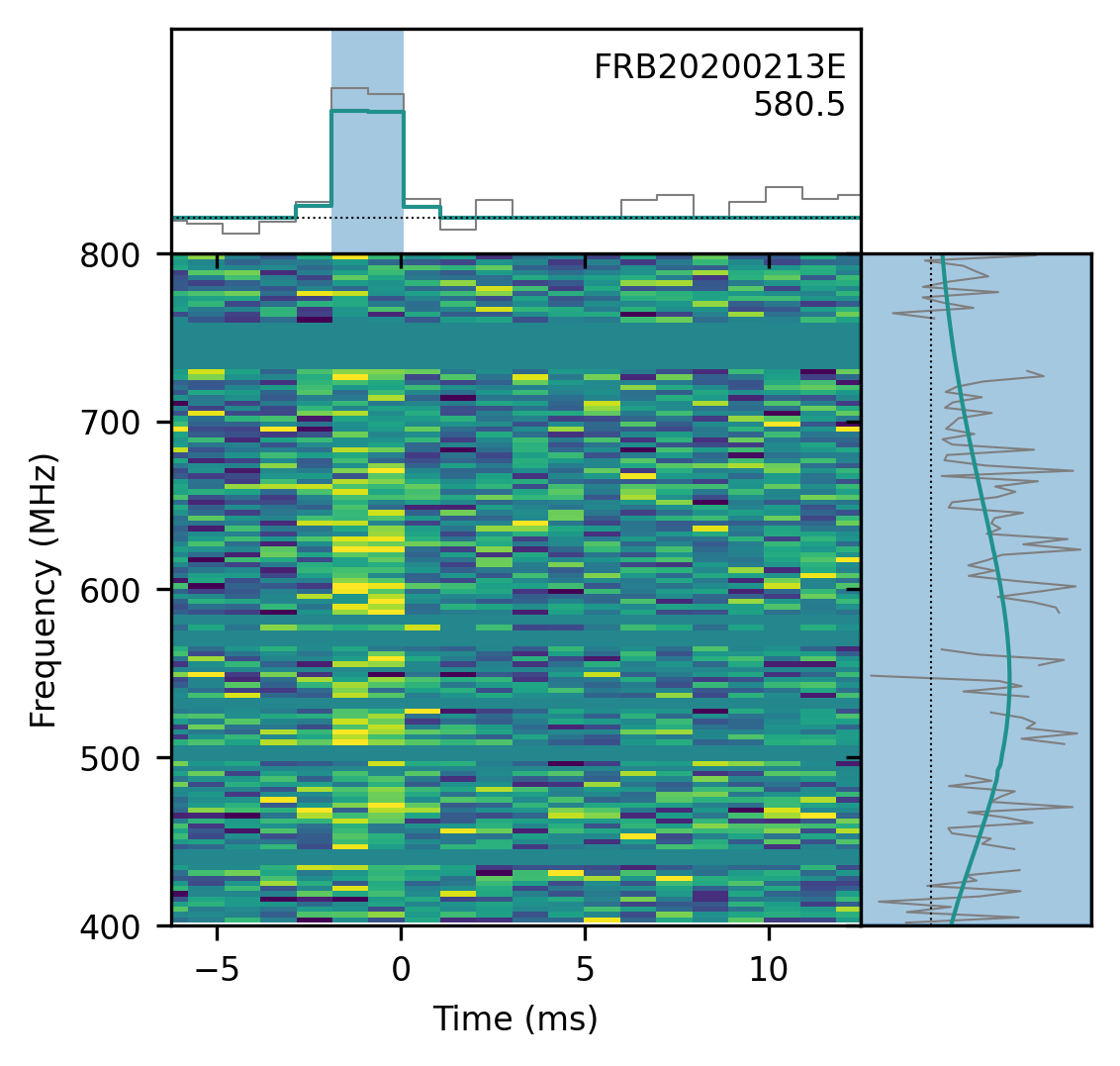

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
87.007± 0.255degrees
dec
88.108± 0.276degrees
gl
124.97degrees
gb
26.60degrees

Detection and dispersion

bonsai_snr
12.6
snr_fitb
16.8
bonsai_dm
580.7pc cm⁻³
dm_fitb
580.5282± 0.00807pc cm⁻³
dm_exc_ne2001
524.8pc cm⁻³
dm_exc_ymw16
527.3pc cm⁻³

Arrival time

mjd_400
58892.26420458543± 1.24 × 10⁻⁹MJD
mjd_inf
58892.26403050557± 2.72 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000469± 0.0000272s
scat_time
0.000000s

Flux and spectrum

flux
1.21± 0.62Jy
fluence
2.14± 0.97Jy ms
peak_freq
543.7MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
7.96± 1.94
sp_run
-12.98± 2.81

Exposure and fluence thresholds

exp_up
2531.25± 925.73hour
exp_low
2422.02± 767.46hour
low_ft_68
1.9Jy ms
up_ft_68
1.4Jy ms
low_ft_95
3.5Jy ms
up_ft_95
2.7Jy ms

Fit quality

chi_sq
1972392.288
dof
1972668
flag_frac
0.257
