FRB 20200314D

One-off burst

Event ID
77037485
Arrival, 400 MHz
2020-03-14 12:40:05.259 UTC
Right ascension
242.820°
Declination
43.546°

Loading

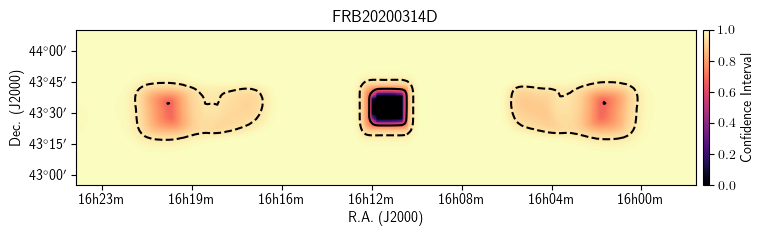

Localization

Loading

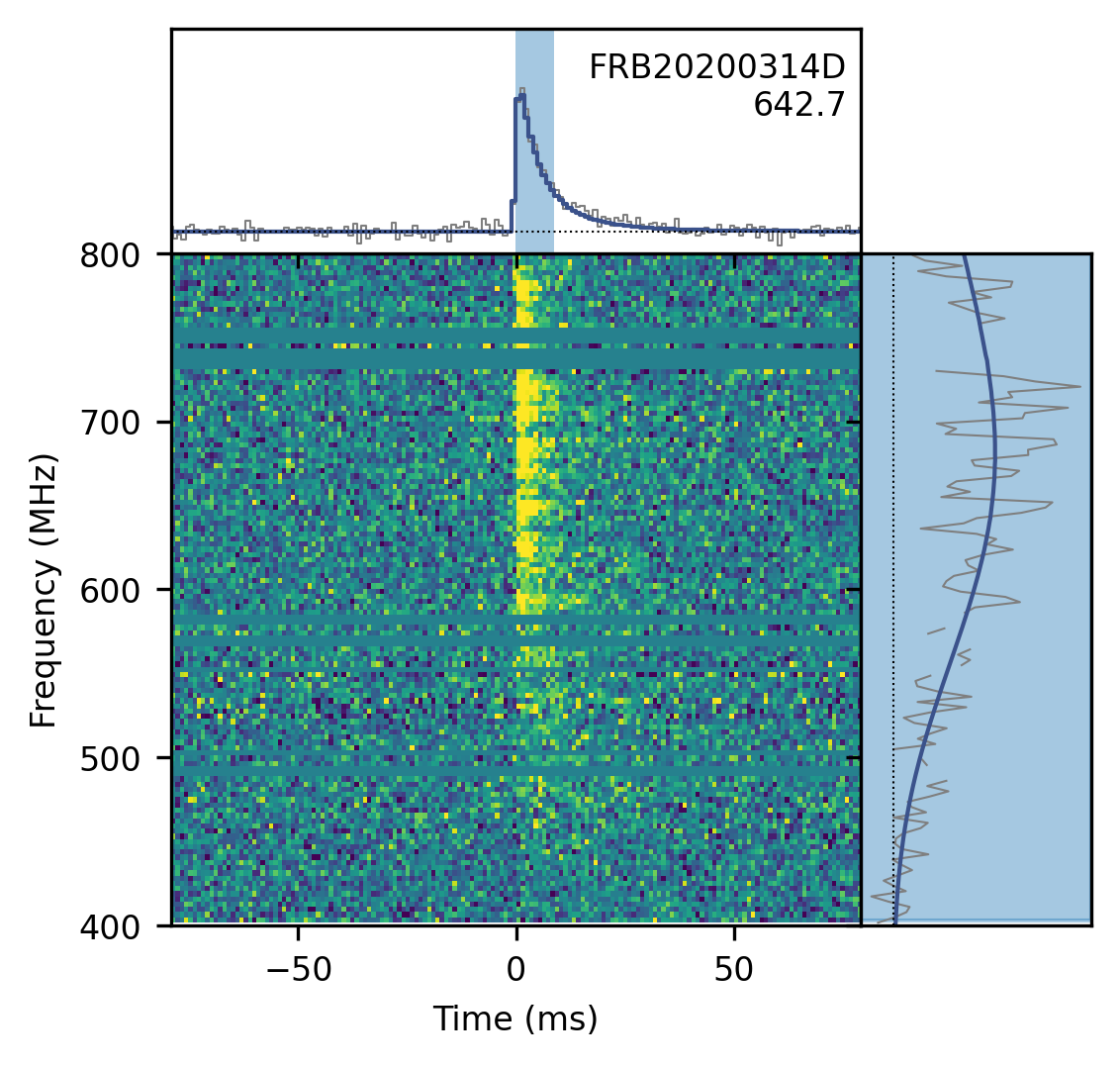

Waterfall

Position

ra
242.820± 0.151degrees
dec
43.546± 0.148degrees
gl
68.75degrees
gb
46.81degrees

Detection and dispersion

bonsai_snr
42.5
snr_fitb
65.6
bonsai_dm
643.8pc cm⁻³
dm_fitb
642.6765± 0.01498pc cm⁻³
dm_exc_ne2001
609.0pc cm⁻³
dm_exc_ymw16
615.2pc cm⁻³

Arrival time

mjd_400
58922.52783865147± 2.98 × 10⁻⁹MJD
mjd_inf
58922.52764593554± 5.39 × 10⁻⁹MJD

Burst shape

bc_width
0.00885s
width_fitb
0.000310± 0.0000337s
scat_time
0.043214± 0.0015198s

Flux and spectrum

flux
0.80± 0.17Jy
fluence
5.97± 1.12Jy ms
peak_freq
638.6MHz
low_freq
403.2MHz
high_freq
800.2MHz
sp_idx
10.18± 0.90
sp_run
-10.89± 0.90

Exposure and fluence thresholds

exp_up
128.71± 40.91hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.5Jy ms
low_ft_95
—
up_ft_95
2.5Jy ms

Fit quality

chi_sq
2170222.558
dof
2174519
flag_frac
0.181
