FRB 20200314E

One-off burst

Event ID
77034356
Arrival, 400 MHz
2020-03-14 11:14:48.557 UTC
Right ascension
218.363°
Declination
40.387°

Loading

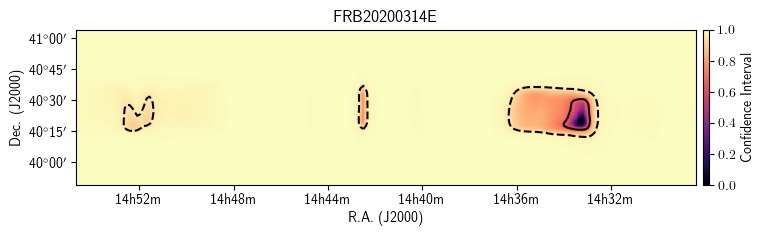

Localization

Loading

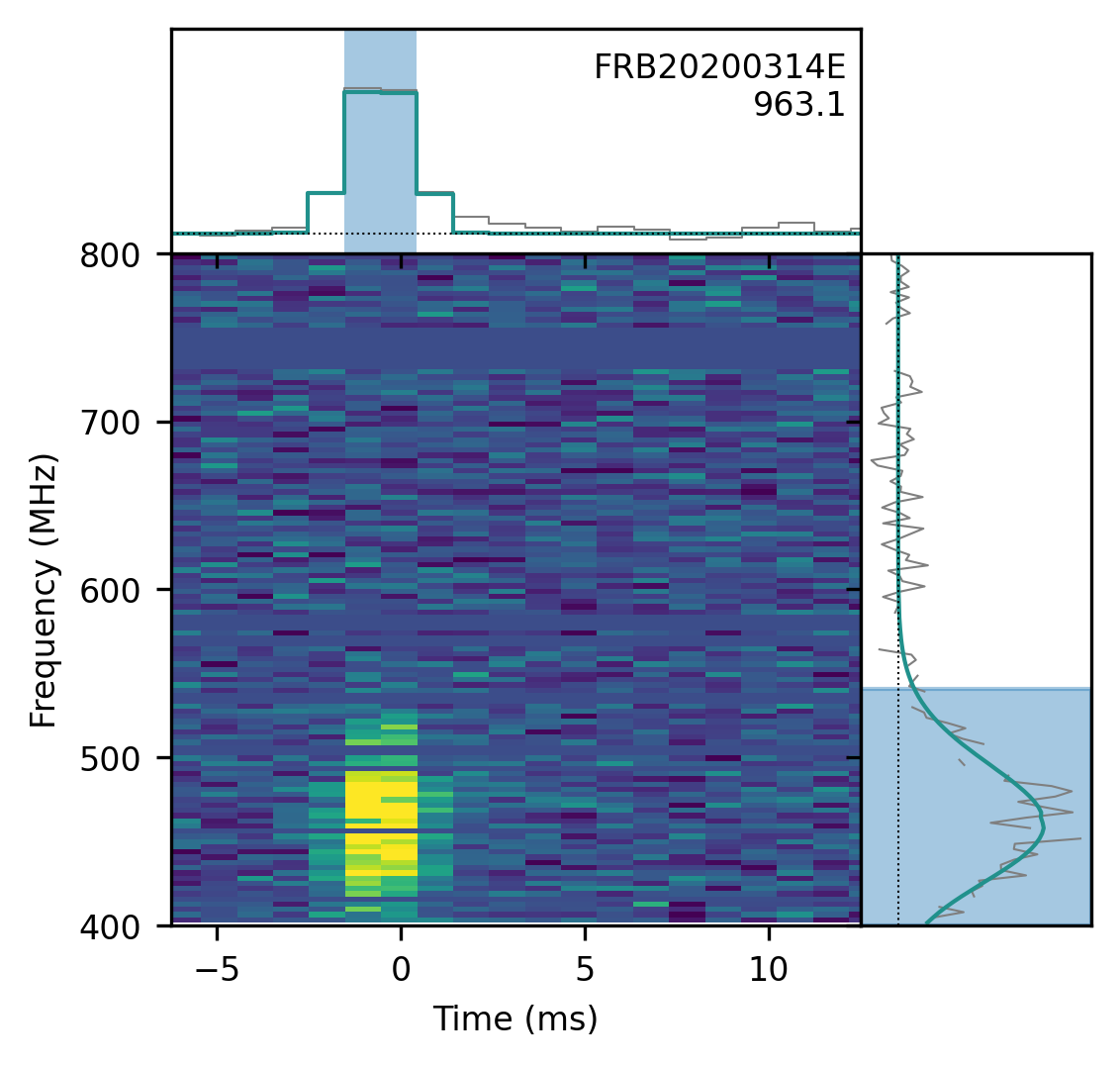

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
218.363± 0.106degrees
dec
40.387± 0.124degrees
gl
71.68degrees
gb
65.13degrees

Detection and dispersion

bonsai_snr
35.3
snr_fitb
54.6
bonsai_dm
962.4pc cm⁻³
dm_fitb
963.0968± 0.00275pc cm⁻³
dm_exc_ne2001
938.8pc cm⁻³
dm_exc_ymw16
941.1pc cm⁻³

Arrival time

mjd_400
58922.46861756246± 1.96 × 10⁻¹⁰MJD
mjd_inf
58922.468328763796± 8.47 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000446± 0.0000035s
scat_time
0.000000s

Flux and spectrum

flux
1.32± 0.36Jy
fluence
3.81± 0.84Jy ms
peak_freq
457.4MHz
low_freq
400.2MHz
high_freq
540.5MHz
sp_idx
22.08± 1.40
sp_run
-82.63± 4.69

Exposure and fluence thresholds

exp_up
108.50± 47.11hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.0Jy ms
low_ft_95
—
up_ft_95
1.7Jy ms

Fit quality

chi_sq
2173656.218
dof
2176626
flag_frac
0.180
