CHIME/FRBPublic data

FRB 20200314F

One-off burst

Event ID
77034116
Arrival, 400 MHz
2020-03-14 10:04:49.380 UTC
Right ascension
204.304°
Declination
21.155°

Loading

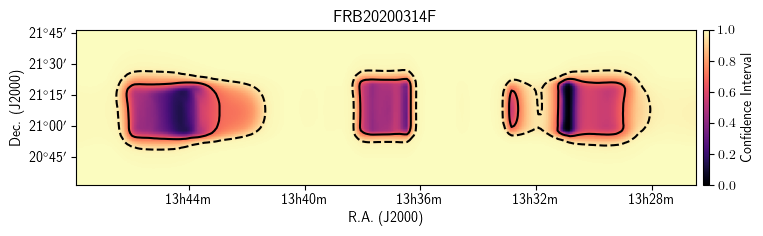

Localization

Loading

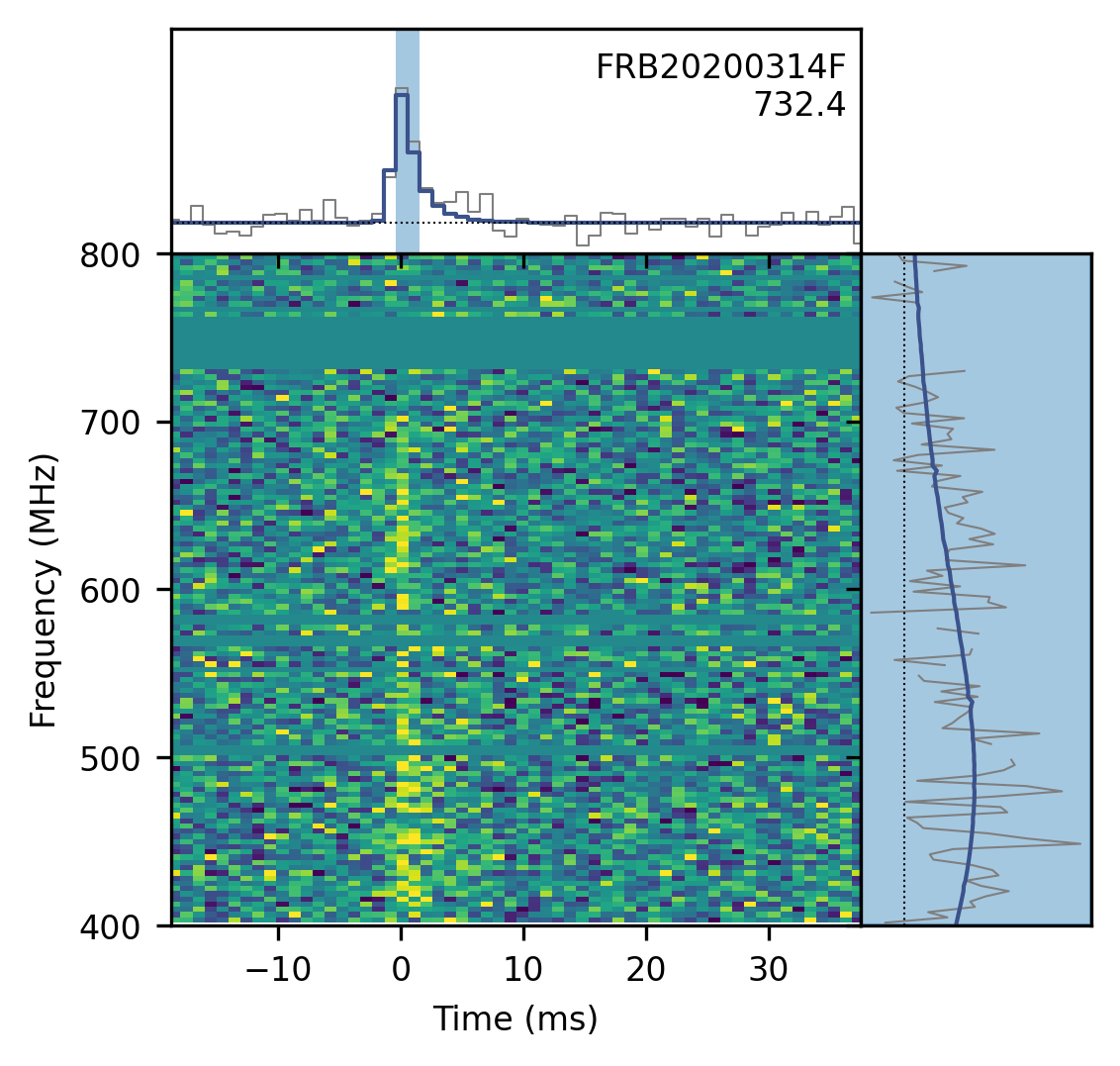

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
204.304± 0.207degrees
dec
21.155± 0.225degrees
gl
5.61degrees
gb
77.98degrees

Detection and dispersion

bonsai_snr
15.3
snr_fitb
20.7
bonsai_dm
732.7pc cm⁻³
dm_fitb
732.3949± 0.00912pc cm⁻³
dm_exc_ne2001
709.4pc cm⁻³
dm_exc_ymw16
712.0pc cm⁻³

Arrival time

mjd_400
58922.420015972144± 1.30 × 10⁻⁹MJD
mjd_inf
58922.41979635284± 3.03 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000337± 0.0000432s
scat_time
0.002950± 0.0005147s

Flux and spectrum

flux
1.11± 0.35Jy
fluence
2.74± 0.63Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-0.10± 1.05
sp_run
-4.39± 1.85

Exposure and fluence thresholds

exp_up
78.61± 44.19hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.7Jy ms
low_ft_95
—
up_ft_95
2.9Jy ms

Fit quality

chi_sq
2158547.356
dof
2158967
flag_frac
0.187
