FRB 20200320D

One-off burst

Event ID
77656788
Arrival, 400 MHz
2020-03-20 11:14:15.730 UTC
Right ascension
228.652°
Declination
72.494°

Loading

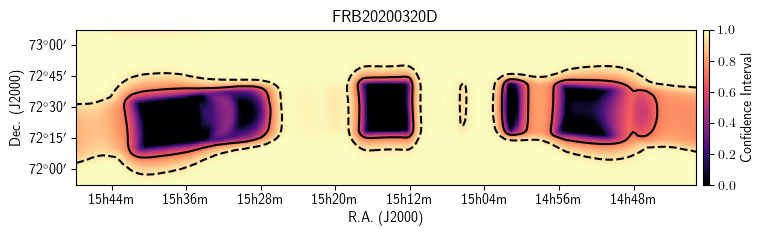

Localization

Loading

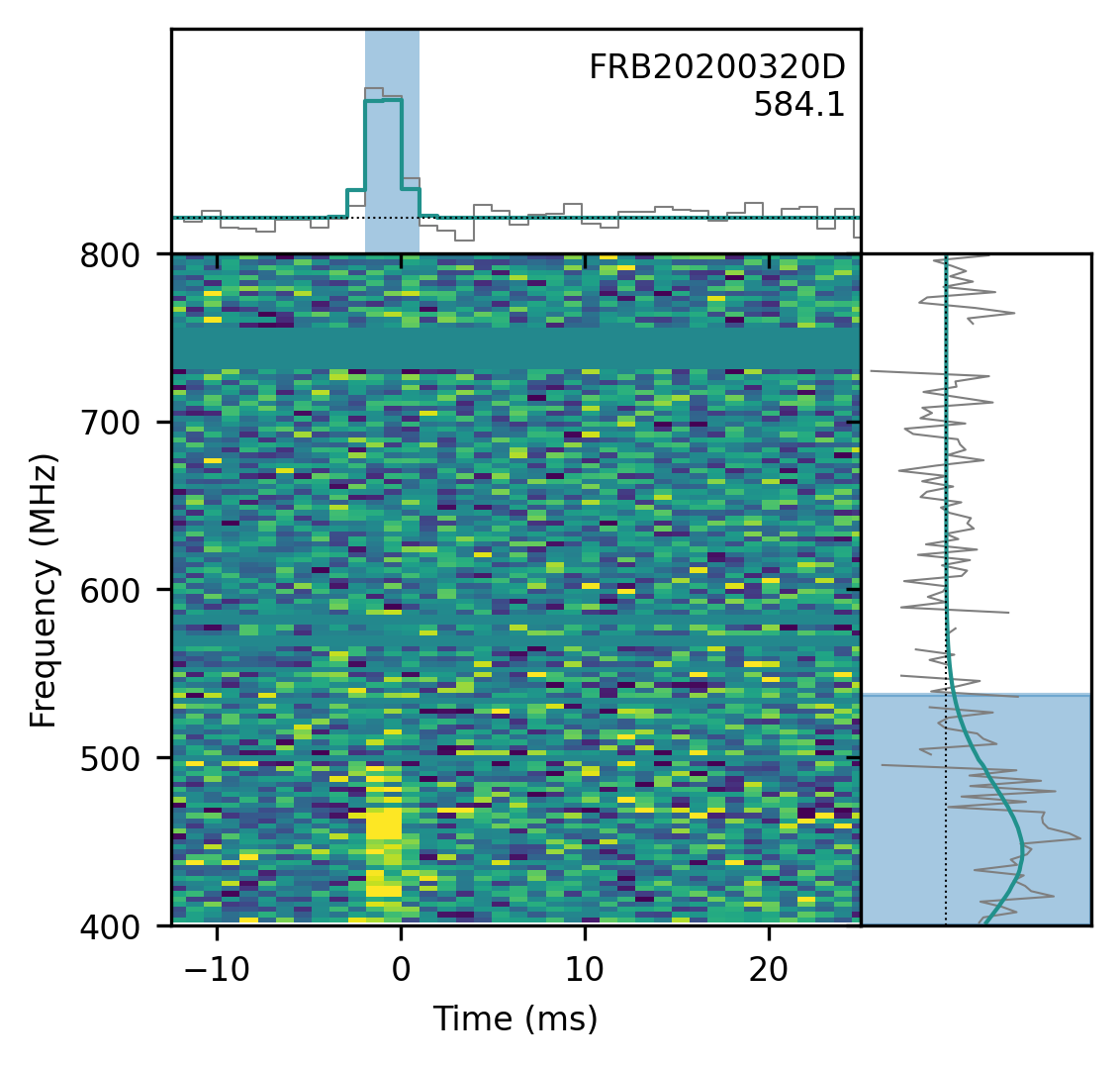

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
228.652± 0.225degrees
dec
72.494± 0.248degrees
gl
109.52degrees
gb
40.69degrees

Detection and dispersion

bonsai_snr
11.1
snr_fitb
15.9
bonsai_dm
583.9pc cm⁻³
dm_fitb
584.1374± 0.01682pc cm⁻³
dm_exc_ne2001
545.1pc cm⁻³
dm_exc_ymw16
551.9pc cm⁻³

Arrival time

mjd_400
58928.46823762106± 1.08 × 10⁻⁹MJD
mjd_inf
58928.46806245894± 5.16 × 10⁻⁹MJD

Burst shape

bc_width
0.00295s
width_fitb
0.000597± 0.0000300s
scat_time
0.000000s

Flux and spectrum

flux
0.55± 0.34Jy
fluence
0.80± 0.70Jy ms
peak_freq
443.4MHz
low_freq
400.2MHz
high_freq
537.1MHz
sp_idx
12.84± 4.05
sp_run
-62.62± 15.37

Exposure and fluence thresholds

exp_up
237.08± 132.79hour
exp_low
194.39± 111.04hour
low_ft_68
3.0Jy ms
up_ft_68
0.3Jy ms
low_ft_95
6.5Jy ms
up_ft_95
0.7Jy ms

Fit quality

chi_sq
2095380.460
dof
2095626
flag_frac
0.210
