FRB 20200320E

One-off burst

Event ID
77655895
Arrival, 400 MHz
2020-03-20 10:46:39.602 UTC
Right ascension
236.253°
Declination
88.337°

Loading

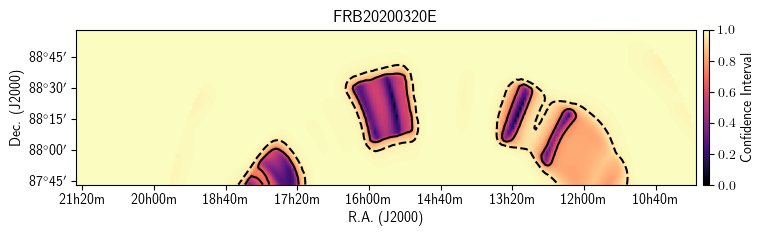

Localization

Loading

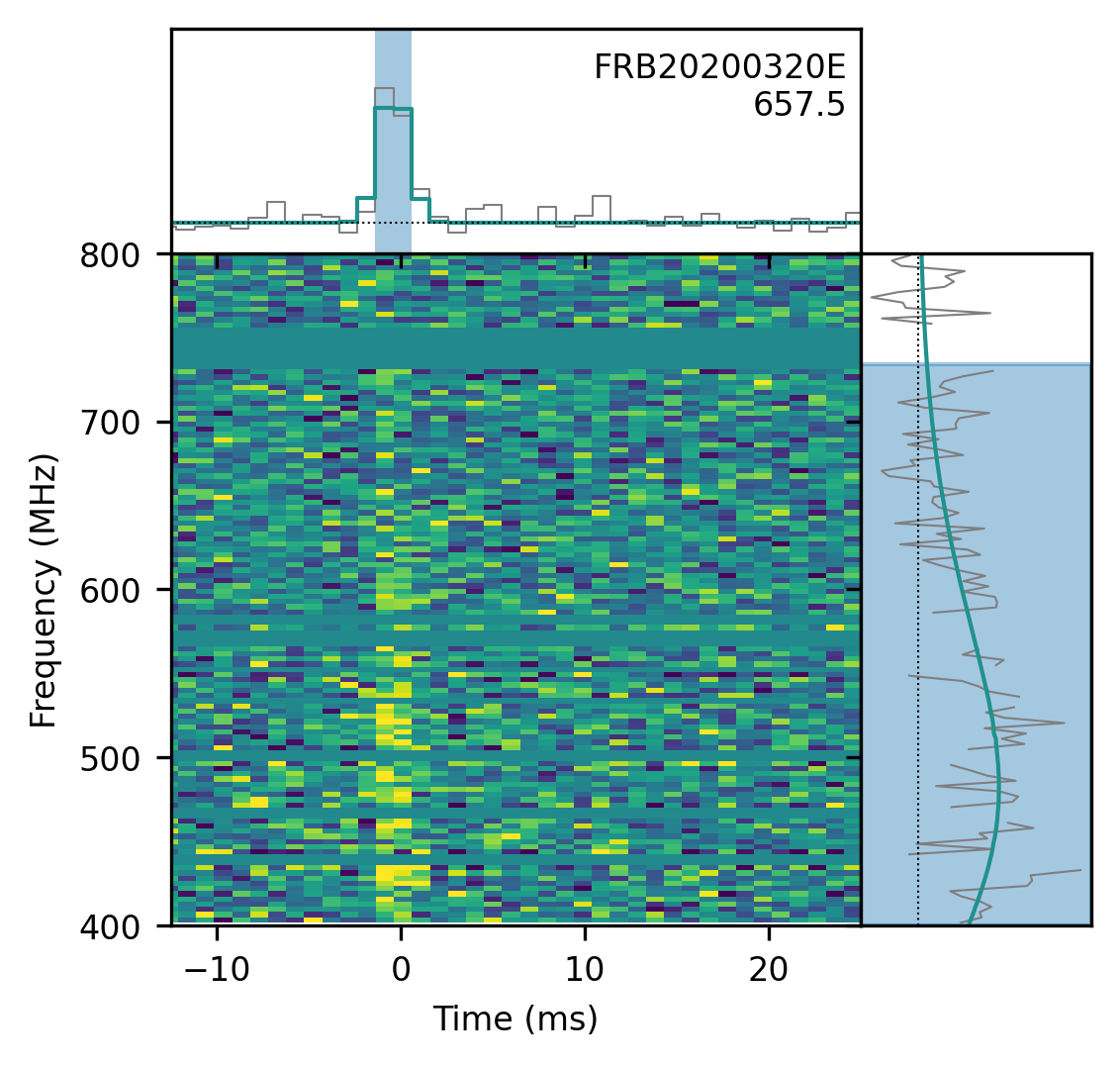

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
236.253± 0.241degrees
dec
88.337± 0.277degrees
gl
121.63degrees
gb
28.33degrees

Detection and dispersion

bonsai_snr
12.9
snr_fitb
18.3
bonsai_dm
658.3pc cm⁻³
dm_fitb
657.4796± 0.00787pc cm⁻³
dm_exc_ne2001
604.2pc cm⁻³
dm_exc_ymw16
607.7pc cm⁻³

Arrival time

mjd_400
58928.4490694724± 8.64 × 10⁻¹⁰MJD
mjd_inf
58928.44887231752± 2.51 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000595± 0.0000293s
scat_time
0.000000s

Flux and spectrum

flux
1.40± 0.69Jy
fluence
3.30± 1.88Jy ms
peak_freq
474.8MHz
low_freq
400.2MHz
high_freq
733.9MHz
sp_idx
4.15± 1.49
sp_run
-12.14± 2.76

Exposure and fluence thresholds

exp_up
2536.77± 763.19hour
exp_low
2186.26± 945.57hour
low_ft_68
0.9Jy ms
up_ft_68
0.8Jy ms
low_ft_95
1.9Jy ms
up_ft_95
1.5Jy ms

Fit quality

chi_sq
1992588.375
dof
1992918
flag_frac
0.249
