CHIME/FRBPublic data

FRB 20200509B

One-off burst

Event ID
83654939
Arrival, 400 MHz
2020-05-09 05:15:58.042 UTC
Right ascension
186.643°
Declination
5.551°

Loading

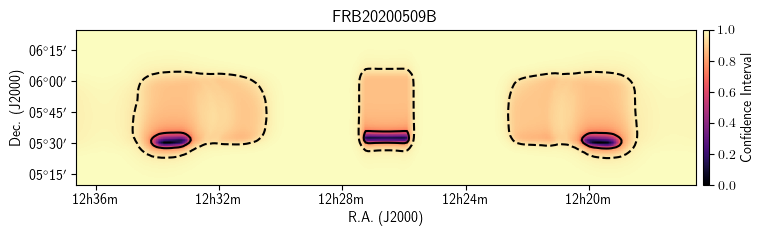

Localization

Loading

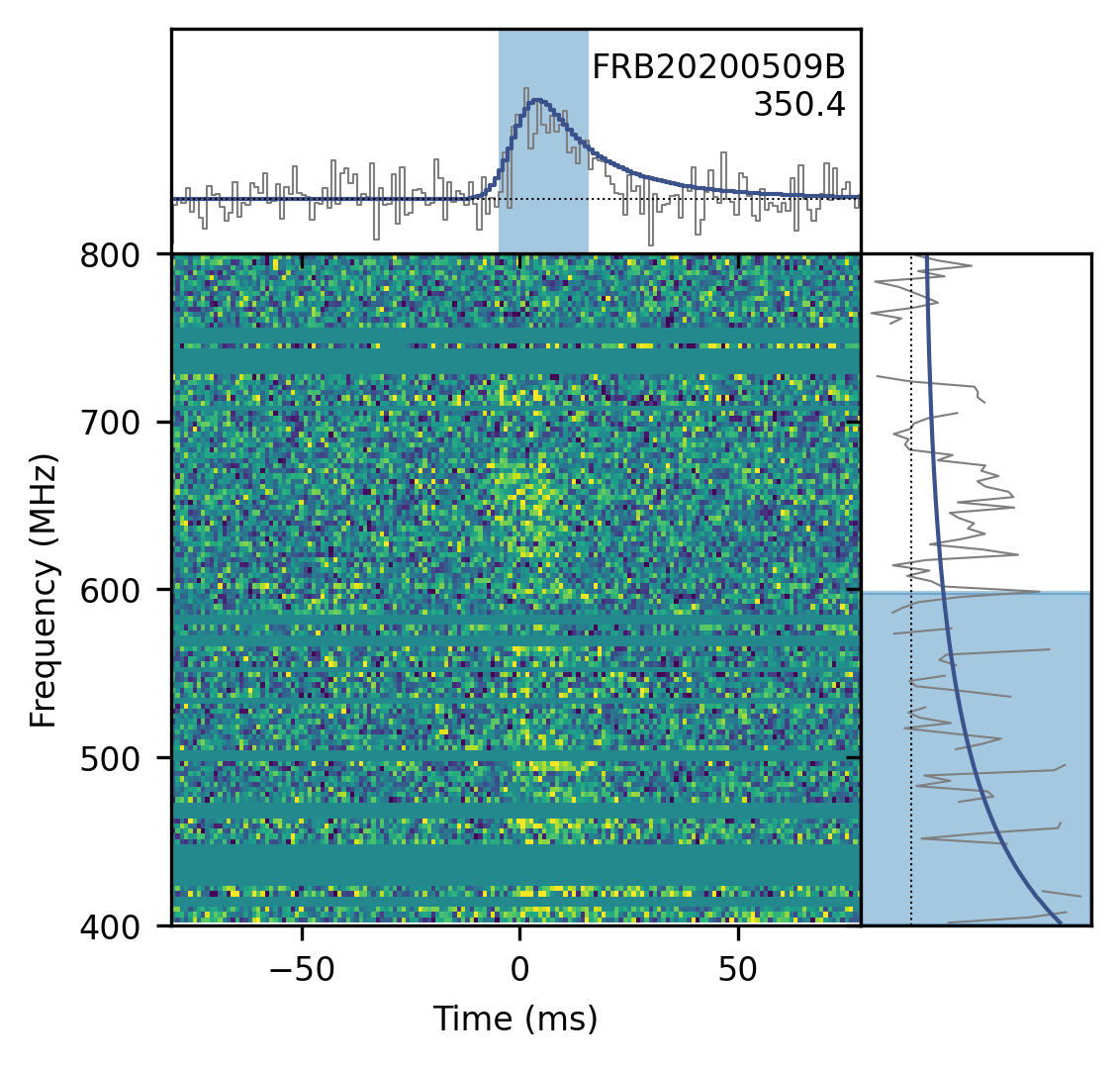

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
186.643± 0.183degrees
dec
5.551± 0.049degrees
gl
286.48degrees
gb
67.63degrees

Detection and dispersion

bonsai_snr
16.5
snr_fitb
27.1
bonsai_dm
349.4pc cm⁻³
dm_fitb
350.3767± 0.07745pc cm⁻³
dm_exc_ne2001
320.8pc cm⁻³
dm_exc_ymw16
328.4pc cm⁻³

Arrival time

mjd_400
58978.219421780836± 1.05 × 10⁻⁸MJD
mjd_inf
58978.21931671527± 2.55 × 10⁻⁸MJD

Burst shape

bc_width
0.02064s
width_fitb
0.004064± 0.0004941s
scat_time
0.030283± 0.0031463s

Flux and spectrum

flux
1.18± 0.43Jy
fluence
15.52± 3.93Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
597.9MHz
sp_idx
-7.58± 0.63
sp_run
4.60± 1.07

Exposure and fluence thresholds

exp_up
42.68± 42.63hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
6.6Jy ms
low_ft_95
—
up_ft_95
11.5Jy ms

Fit quality

chi_sq
1756802.642
dof
1757531
flag_frac
0.338
