CHIME/FRBPublic data

FRB 20200509A

One-off burst

Event ID
83733023
Arrival, 400 MHz
2020-05-09 21:18:00.475 UTC
Right ascension
67.357°
Declination
71.545°

Loading

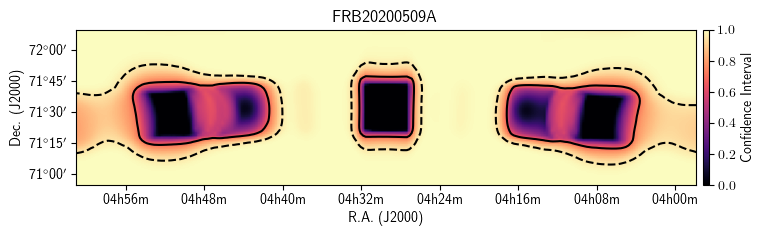

Localization

Loading

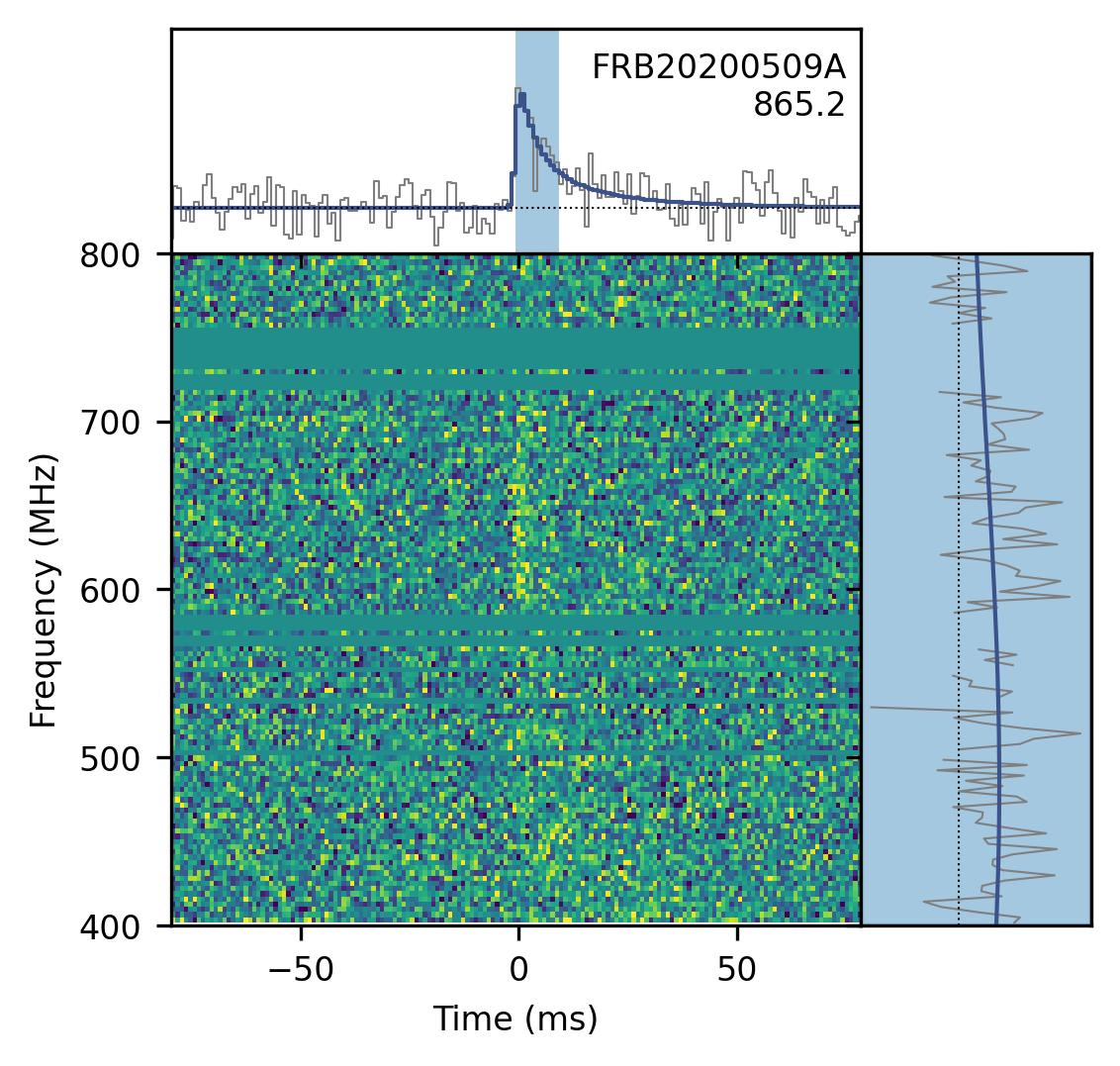

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
67.357± 0.221degrees
dec
71.545± 0.246degrees
gl
138.45degrees
gb
15.60degrees

Detection and dispersion

bonsai_snr
10.2
snr_fitb
14.6
bonsai_dm
863.7pc cm⁻³
dm_fitb
865.1889± 0.05501pc cm⁻³
dm_exc_ne2001
772.4pc cm⁻³
dm_exc_ymw16
747.4pc cm⁻³

Arrival time

mjd_400
58978.88750550148± 9.22 × 10⁻⁹MJD
mjd_inf
58978.88724606194± 1.89 × 10⁻⁸MJD

Burst shape

bc_width
0.00983s
width_fitb
0.000470± 0.0002882s
scat_time
0.030572± 0.0043550s

Flux and spectrum

flux
0.55± 0.29Jy
fluence
3.28± 1.33Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-2.73± 1.41
sp_run
-0.15± 1.99

Exposure and fluence thresholds

exp_up
237.08± 140.04hour
exp_low
215.35± 79.05hour
low_ft_68
35.4Jy ms
up_ft_68
3.7Jy ms
low_ft_95
64.2Jy ms
up_ft_95
6.8Jy ms

Fit quality

chi_sq
1995951.865
dof
1996157
flag_frac
0.248
