CHIME/FRBPublic data
Repeater
FRB20200510A
Event ID
83744922
Arrival, 400 MHz
2020-05-10 02:22:04.586 UTC
Right ascension
143.940°
Declination
36.514°

Loading

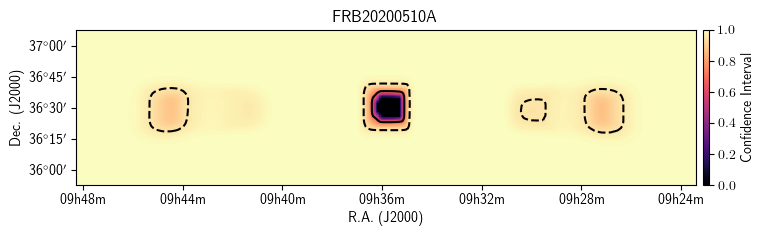

Localization

Loading

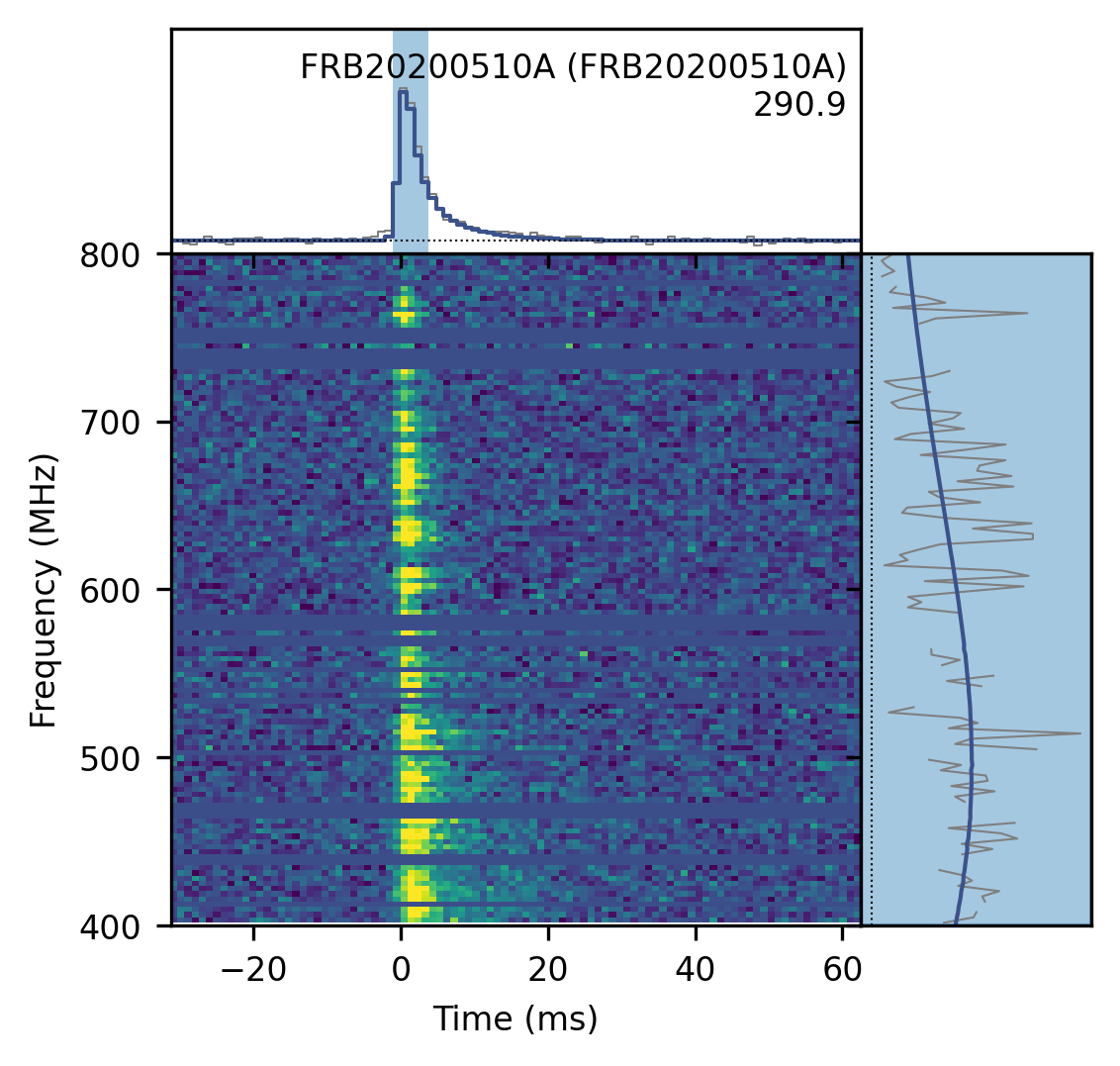

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
143.940± 0.131degrees
dec
36.514± 0.125degrees
gl
187.45degrees
gb
47.85degrees

Detection and dispersion

bonsai_snr
66.1
snr_fitb
129.6
bonsai_dm
289.5pc cm⁻³
dm_fitb
290.8786± 0.00287pc cm⁻³
dm_exc_ne2001
251.2pc cm⁻³
dm_exc_ymw16
263.7pc cm⁻³

Arrival time

mjd_400
58979.09866419378± 4.97 × 10⁻¹⁰MJD
mjd_inf
58979.09857696957± 9.93 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00492s
width_fitb
0.000558± 0.0000182s
scat_time
0.009584± 0.0002138s

Flux and spectrum

flux
4.09± 1.30Jy
fluence
22.11± 6.73Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-1.67± 0.15
sp_run
-1.57± 0.23

Exposure and fluence thresholds

exp_up
128.01± 22.74hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
4.8Jy ms
low_ft_95
0.0Jy ms
up_ft_95
8.4Jy ms

Fit quality

chi_sq
1906465.287
dof
1923257
flag_frac
0.275
