FRB 20200514D

One-off burst

Event ID
84140210
Arrival, 400 MHz
2020-05-14 12:13:33.034 UTC
Right ascension
295.492°
Declination
63.370°

Loading

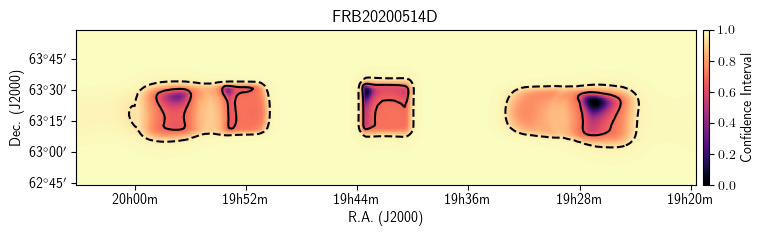

Localization

Loading

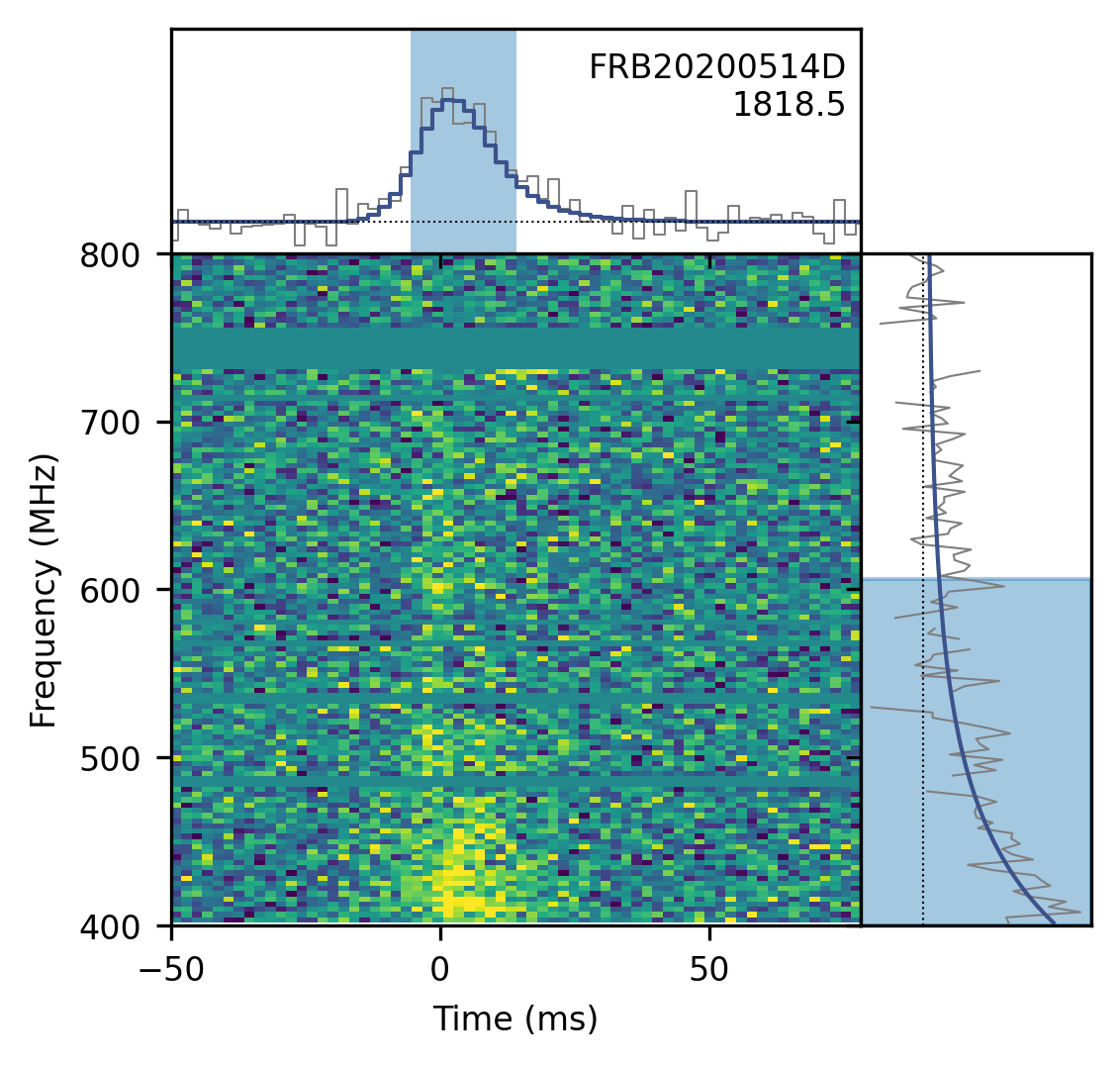

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.
  • Flux and fluence. Flux/fluence could not be determined due to an unspecified computational failure in the fluence pipeline.

Position

ra
295.492± 0.185degrees
dec
63.370± 0.184degrees
gl
95.43degrees
gb
18.69degrees

Detection and dispersion

bonsai_snr
22.6
snr_fitb
29.3
bonsai_dm
1818.1pc cm⁻³
dm_fitb
1818.5299± 0.07162pc cm⁻³
dm_exc_ne2001
1745.3pc cm⁻³
dm_exc_ymw16
1743.4pc cm⁻³

Arrival time

mjd_400
58983.509410110775± 8.24 × 10⁻⁹MJD
mjd_inf
58983.508864798016± 2.30 × 10⁻⁸MJD

Burst shape

bc_width
0.01966s
width_fitb
0.005338± 0.0004325s
scat_time
0.010109± 0.0010542s

Flux and spectrum

flux
—
fluence
—
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
605.9MHz
sp_idx
-6.99± 0.73
sp_run
3.46± 1.49

Exposure and fluence thresholds

exp_up
188.78± 86.23hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
—
low_ft_95
—
up_ft_95
—

Fit quality

chi_sq
1086789.262
dof
1087641
flag_frac
0.190
