FRB 20200514E

One-off burst

Event ID
84133486
Arrival, 400 MHz
2020-05-14 11:22:47.733 UTC
Right ascension
286.446°
Declination
80.928°

Loading

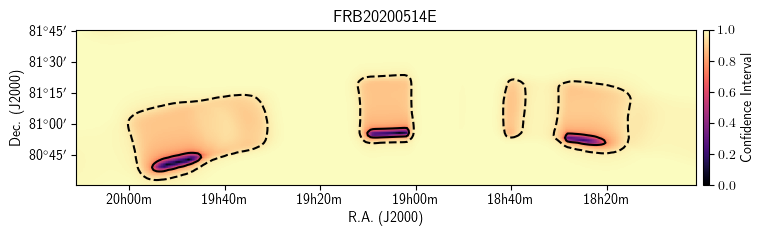

Localization

Loading

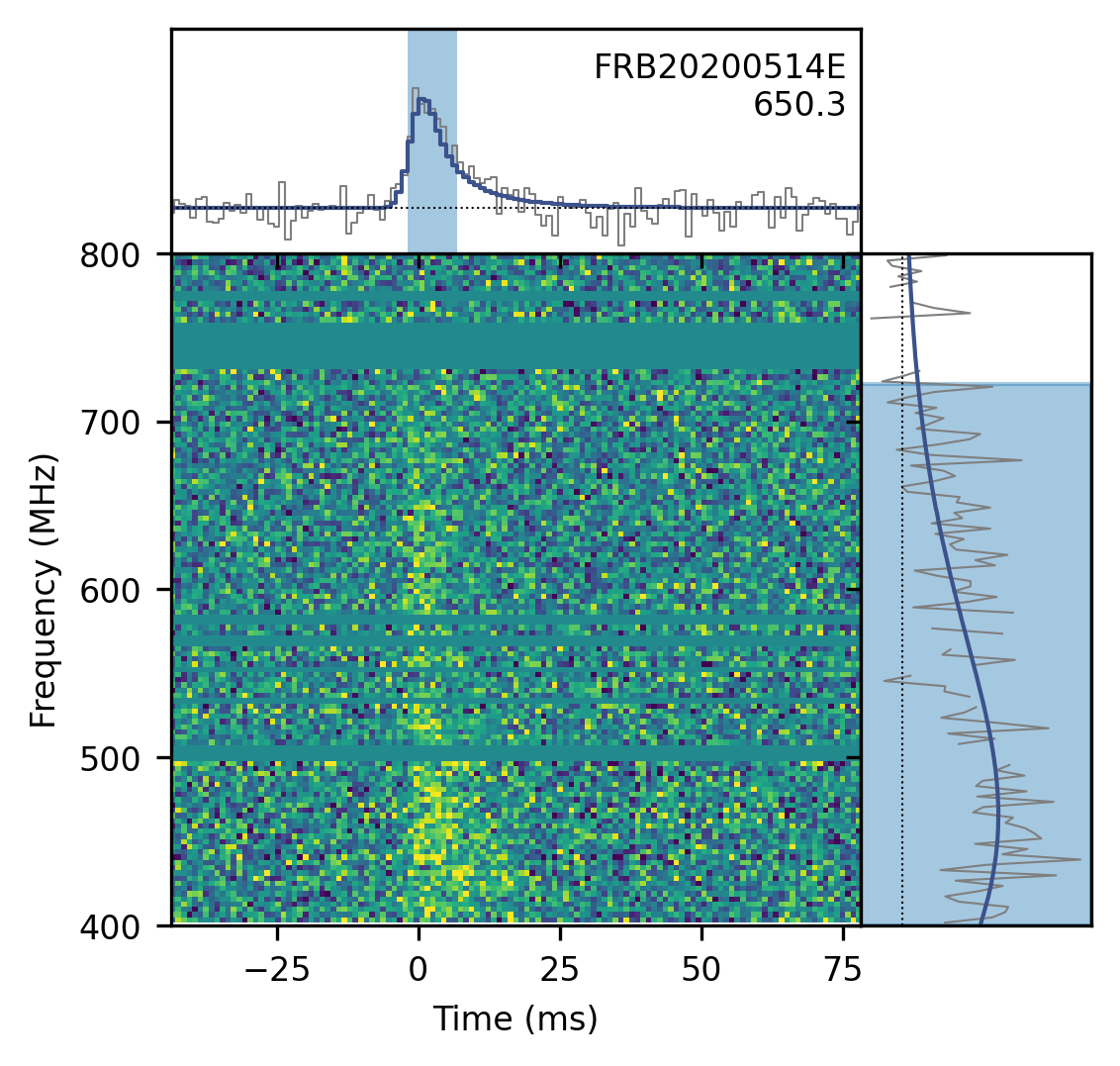

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
286.446± 0.172degrees
dec
80.928± 0.039degrees
gl
112.83degrees
gb
26.20degrees

Detection and dispersion

bonsai_snr
17.9
snr_fitb
25.1
bonsai_dm
653.5pc cm⁻³
dm_fitb
650.3383± 0.04088pc cm⁻³
dm_exc_ne2001
594.6pc cm⁻³
dm_exc_ymw16
597.3pc cm⁻³

Arrival time

mjd_400
58983.47416358096± 5.94 × 10⁻⁹MJD
mjd_inf
58983.47396856751± 1.36 × 10⁻⁸MJD

Burst shape

bc_width
0.00885s
width_fitb
0.001705± 0.0003012s
scat_time
0.012735± 0.0014816s

Flux and spectrum

flux
0.88± 0.47Jy
fluence
7.68± 2.40Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
722.3MHz
sp_idx
-0.12± 0.84
sp_run
-6.40± 1.55

Exposure and fluence thresholds

exp_up
397.56± 276.82hour
exp_low
572.85± 196.73hour
low_ft_68
6.1Jy ms
up_ft_68
2.1Jy ms
low_ft_95
12.1Jy ms
up_ft_95
4.1Jy ms

Fit quality

chi_sq
1916639.818
dof
1917263
flag_frac
0.278
