CHIME/FRBPublic data

FRB 20200516B

One-off burst

Event ID
84368152
Arrival, 400 MHz
2020-05-16 18:38:19.349 UTC
Right ascension
34.778°
Declination
77.261°

Loading

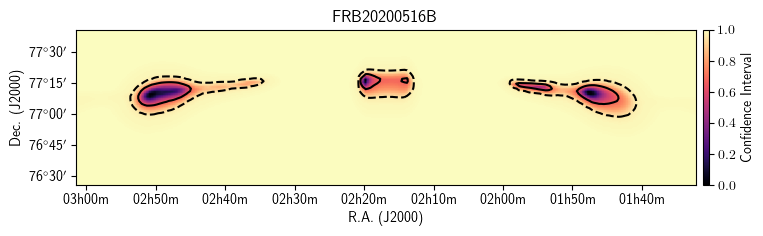

Localization

Loading

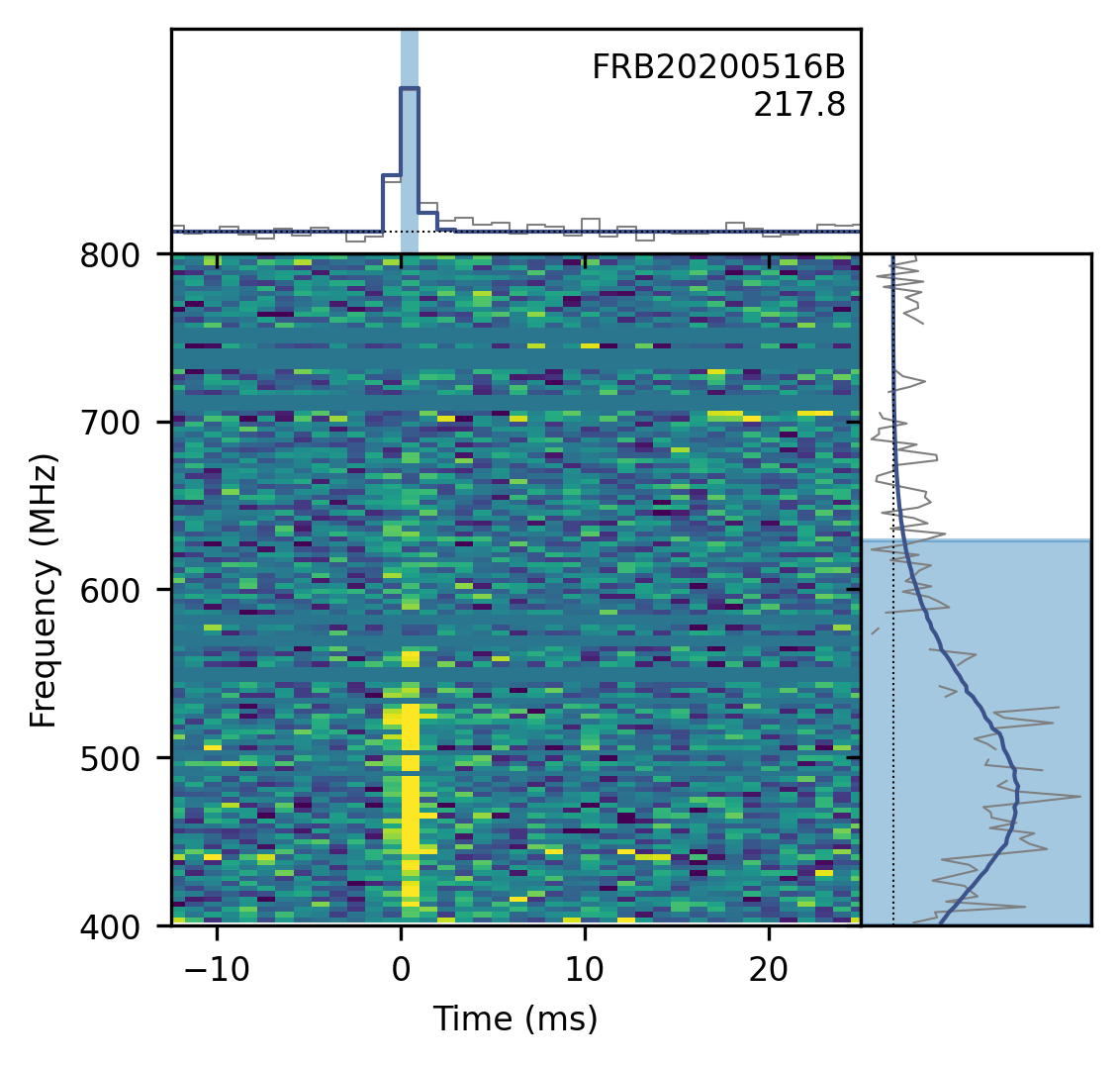

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
34.778± 0.079degrees
dec
77.261± 0.061degrees
gl
127.83degrees
gb
15.23degrees

Detection and dispersion

bonsai_snr
23.1
snr_fitb
38.6
bonsai_dm
218.4pc cm⁻³
dm_fitb
217.7732± 0.00170pc cm⁻³
dm_exc_ne2001
122.6pc cm⁻³
dm_exc_ymw16
95.2pc cm⁻³

Arrival time

mjd_400
58985.776612837864± 1.96 × 10⁻¹⁰MJD
mjd_inf
58985.77654753538± 5.46 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00098s
width_fitb
0.000141± 0.0000070s
scat_time
0.000678± 0.0000226s

Flux and spectrum

flux
1.45± 0.33Jy
fluence
3.38± 0.55Jy ms
peak_freq
474.1MHz
low_freq
400.2MHz
high_freq
629.0MHz
sp_idx
9.76± 1.22
sp_run
-28.80± 3.07

Exposure and fluence thresholds

exp_up
274.19± 173.56hour
exp_low
208.17± 155.68hour
low_ft_68
2.9Jy ms
up_ft_68
0.6Jy ms
low_ft_95
5.0Jy ms
up_ft_95
1.0Jy ms

Fit quality

chi_sq
1851464.808
dof
1852949
flag_frac
0.302
