FRB 20200518B

One-off burst

Event ID
84479374
Arrival, 400 MHz
2020-05-18 06:06:32.202 UTC
Right ascension
208.612°
Declination
3.635°

Loading

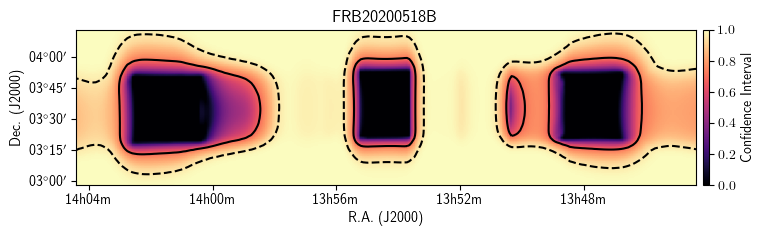

Localization

Loading

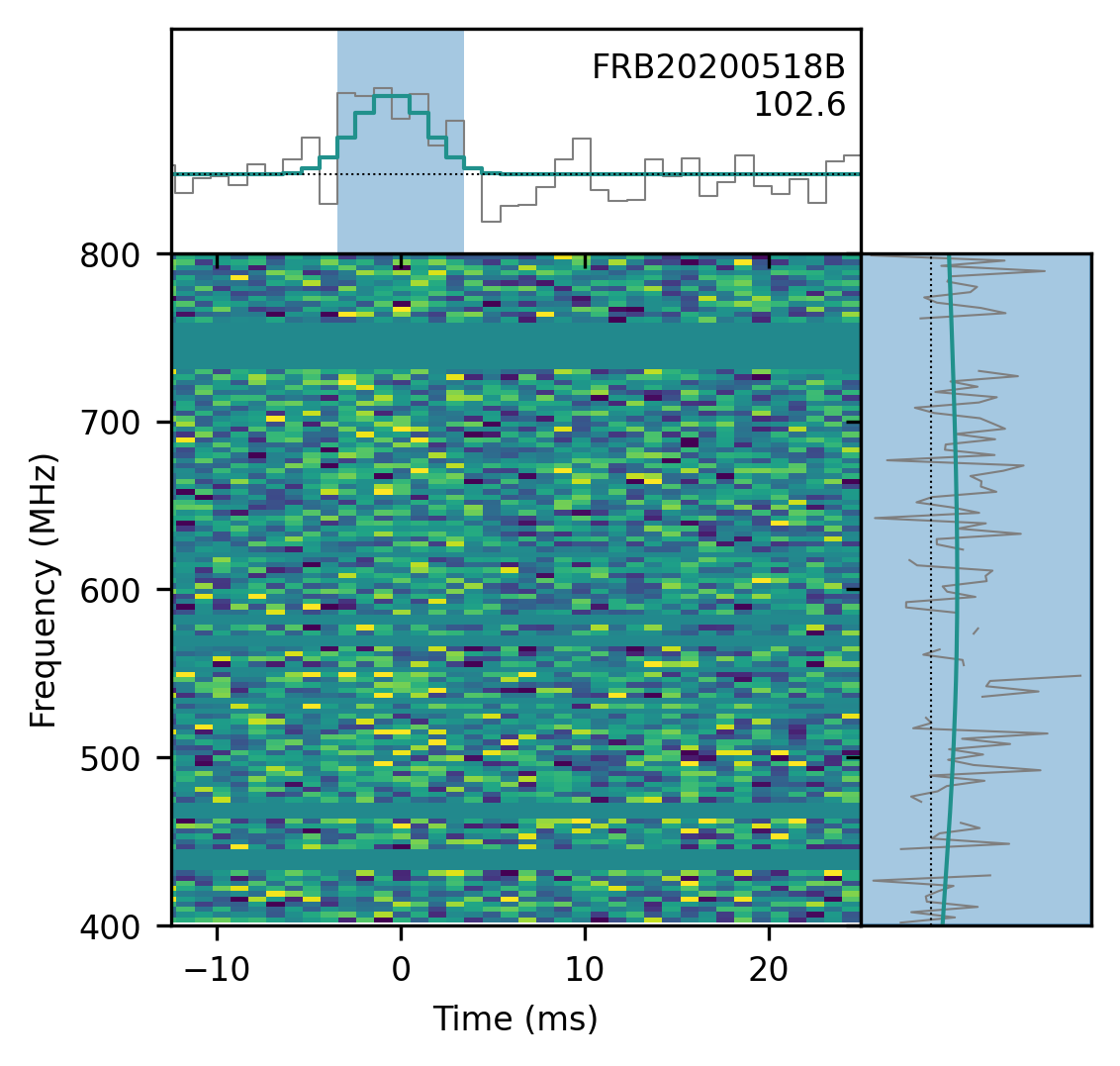

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
208.612± 0.252degrees
dec
3.635± 0.357degrees
gl
338.31degrees
gb
62.10degrees

Detection and dispersion

bonsai_snr
8.5
snr_fitb
7.1
bonsai_dm
100.3pc cm⁻³
dm_fitb
102.6465± 0.09645pc cm⁻³
dm_exc_ne2001
76.4pc cm⁻³
dm_exc_ymw16
79.6pc cm⁻³

Arrival time

mjd_400
58987.254539380025± 1.67 × 10⁻⁸MJD
mjd_inf
58987.254508599966± 3.34 × 10⁻⁸MJD

Burst shape

bc_width
0.00688s
width_fitb
0.001917± 0.0002878s
scat_time
0.000000s

Flux and spectrum

flux
0.87± 0.46Jy
fluence
1.47± 0.41Jy ms
peak_freq
604.4MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
4.04± 3.33
sp_run
-4.90± 4.32

Exposure and fluence thresholds

exp_up
69.24± 40.31hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.0Jy ms
low_ft_95
—
up_ft_95
3.6Jy ms

Fit quality

chi_sq
1810948.025
dof
1810992
flag_frac
0.318
