FRB 20200516G

One-off burst

Event ID
84303233
Arrival, 400 MHz
2020-05-16 05:21:08.807 UTC
Right ascension
193.996°
Declination
36.117°

Loading

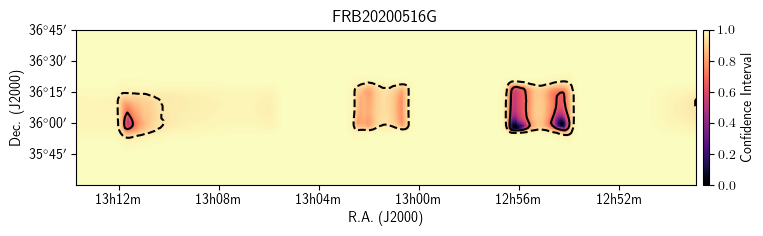

Localization

Loading

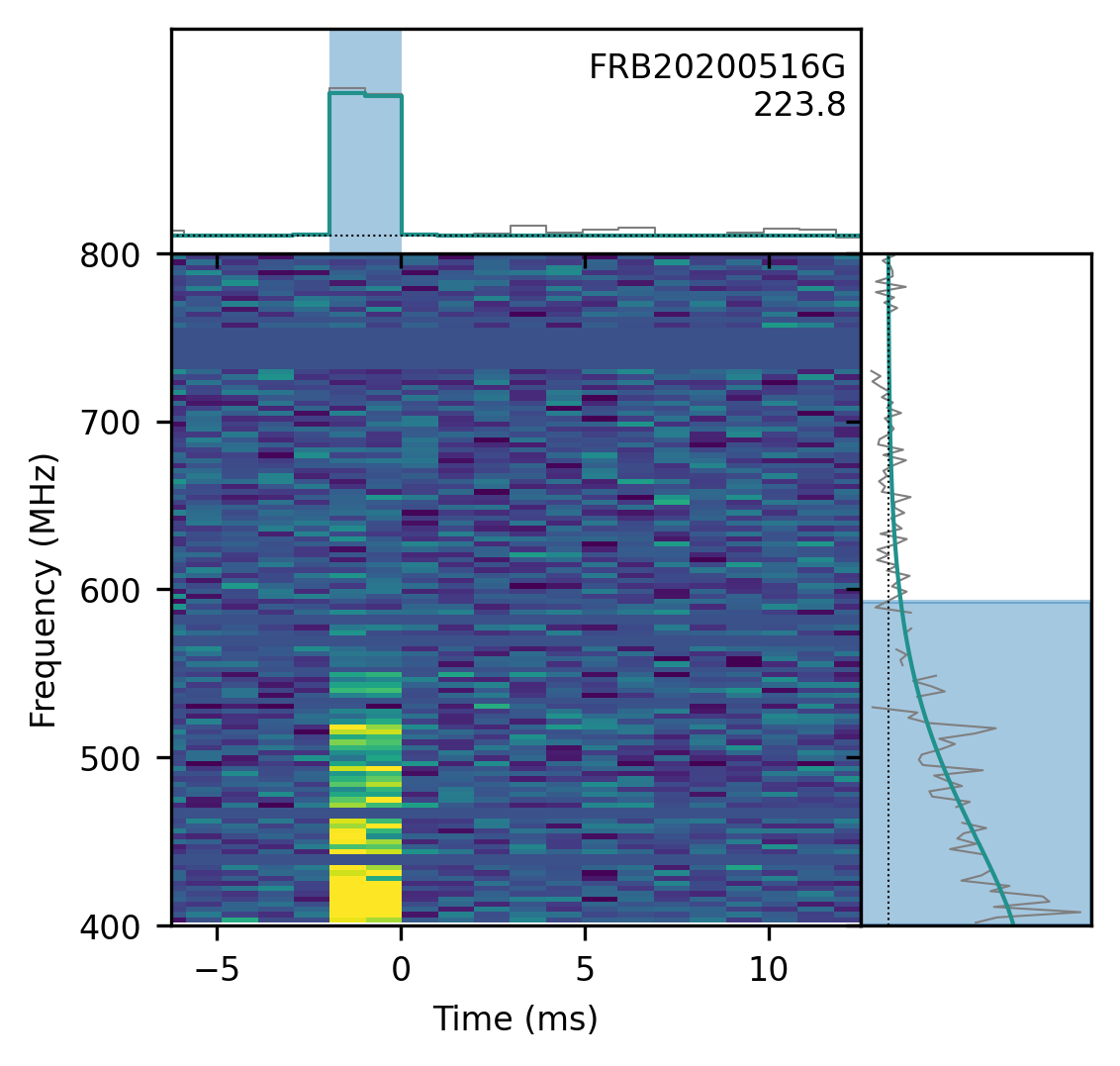

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
193.996± 0.082degrees
dec
36.117± 0.176degrees
gl
117.08degrees
gb
80.96degrees

Detection and dispersion

bonsai_snr
39.0
snr_fitb
60.6
bonsai_dm
224.8pc cm⁻³
dm_fitb
223.8199± 0.00078pc cm⁻³
dm_exc_ne2001
203.8pc cm⁻³
dm_exc_ymw16
204.1pc cm⁻³

Arrival time

mjd_400
58985.22301859478± 4.97 × 10⁻¹¹MJD
mjd_inf
58985.22295147911± 2.37 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000208± 0.0000013s
scat_time
0.000000s

Flux and spectrum

flux
1.13± 0.40Jy
fluence
2.73± 0.87Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
592.5MHz
sp_idx
-1.61± 0.52
sp_run
-10.85± 1.55

Exposure and fluence thresholds

exp_up
101.12± 41.12hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.5Jy ms
low_ft_95
—
up_ft_95
0.9Jy ms

Fit quality

chi_sq
1916675.646
dof
1920342
flag_frac
0.276
