CHIME/FRBPublic data

FRB 20200516H

One-off burst

Event ID
84299077
Arrival, 400 MHz
2020-05-16 01:47:25.771 UTC
Right ascension
133.072°
Declination
83.509°

Loading

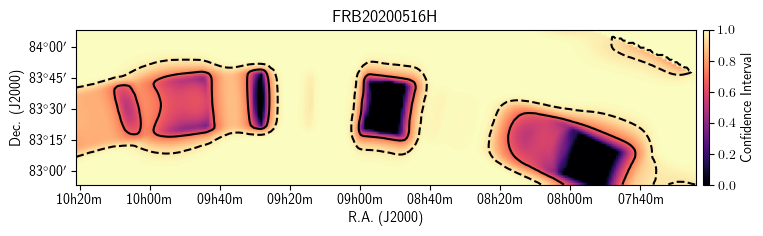

Localization

Loading

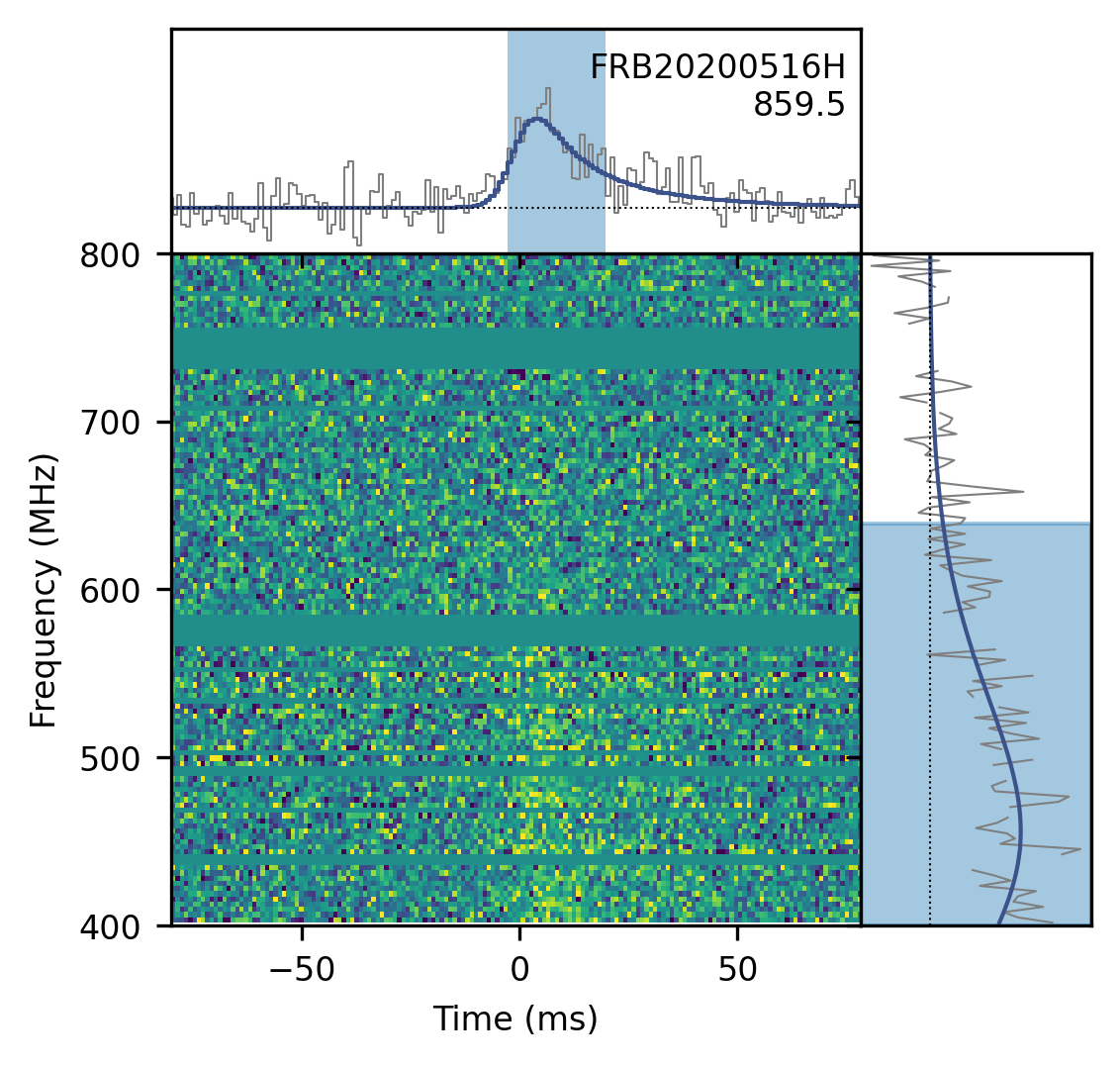

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
133.072± 0.230degrees
dec
83.509± 0.267degrees
gl
129.43degrees
gb
30.24degrees

Detection and dispersion

bonsai_snr
14.4
snr_fitb
22.2
bonsai_dm
867.0pc cm⁻³
dm_fitb
859.4515± 0.12237pc cm⁻³
dm_exc_ne2001
808.7pc cm⁻³
dm_exc_ymw16
813.3pc cm⁻³

Arrival time

mjd_400
58985.07460383381± 1.44 × 10⁻⁸MJD
mjd_inf
58985.07434611473± 3.94 × 10⁻⁸MJD

Burst shape

bc_width
0.02261s
width_fitb
0.003892± 0.0007133s
scat_time
0.029525± 0.0037306s

Flux and spectrum

flux
0.57± 0.26Jy
fluence
8.73± 3.24Jy ms
peak_freq
424.2MHz
low_freq
400.2MHz
high_freq
639.2MHz
sp_idx
1.60± 1.24
sp_run
-13.70± 2.83

Exposure and fluence thresholds

exp_up
596.28± 310.20hour
exp_low
660.69± 361.28hour
low_ft_68
9.3Jy ms
up_ft_68
4.1Jy ms
low_ft_95
17.7Jy ms
up_ft_95
7.4Jy ms

Fit quality

chi_sq
1817309.025
dof
1817795
flag_frac
0.315
