CHIME/FRBPublic data

FRB 20200521B

One-off burst

Event ID
84893974
Arrival, 400 MHz
2020-05-21 07:57:36.050 UTC
Right ascension
238.595°
Declination
10.890°

Loading

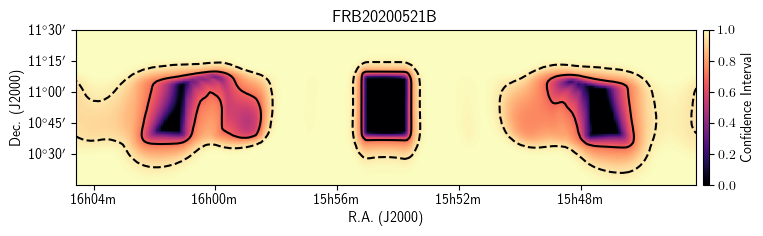

Localization

Loading

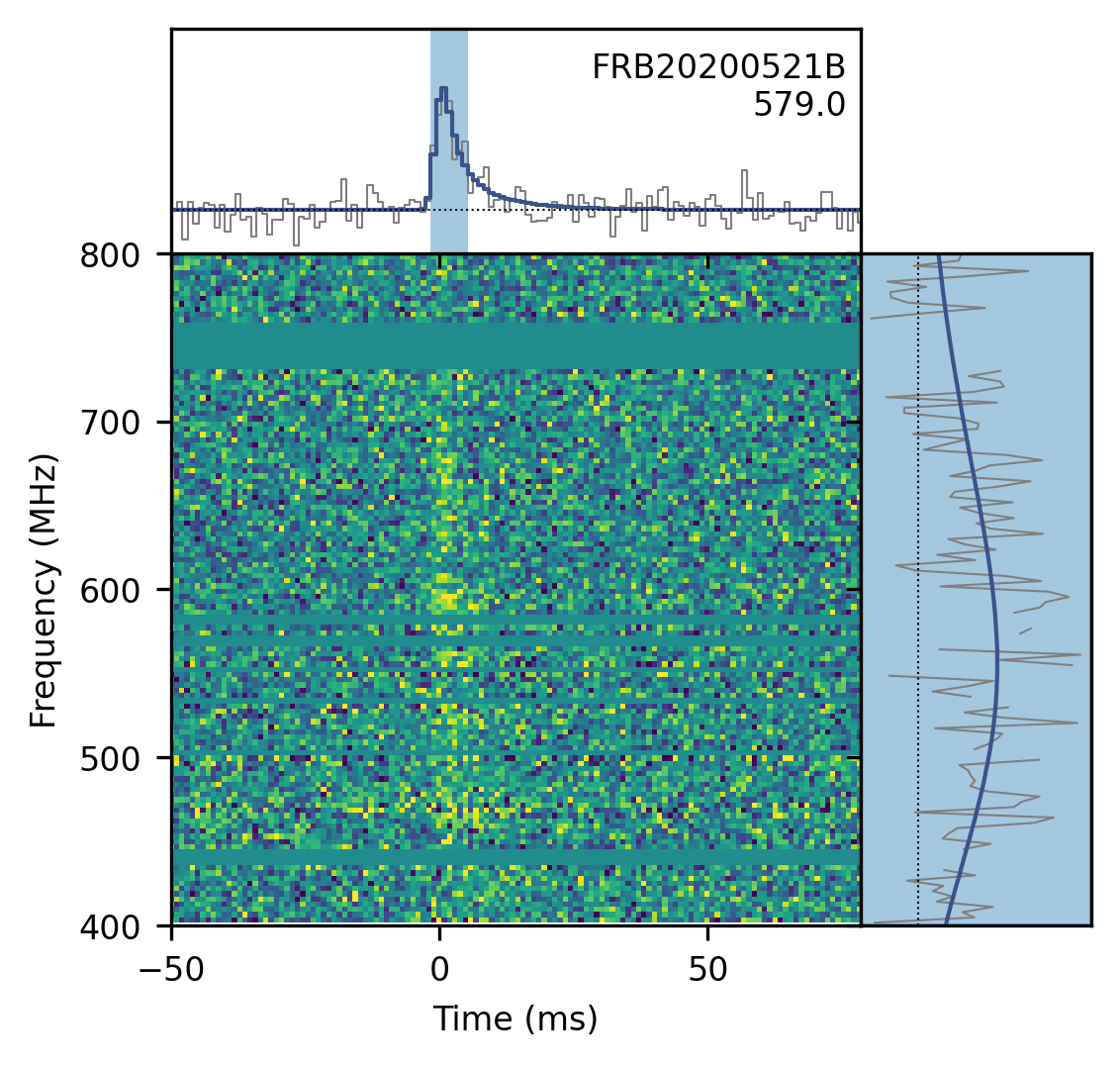

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
238.595± 0.201degrees
dec
10.890± 0.277degrees
gl
21.33degrees
gb
44.12degrees

Detection and dispersion

bonsai_snr
14.0
snr_fitb
20.6
bonsai_dm
577.4pc cm⁻³
dm_fitb
578.9998± 0.04128pc cm⁻³
dm_exc_ne2001
545.3pc cm⁻³
dm_exc_ymw16
548.5pc cm⁻³

Arrival time

mjd_400
58990.331667243605± 7.62 × 10⁻⁹MJD
mjd_inf
58990.331493622056± 1.45 × 10⁻⁸MJD

Burst shape

bc_width
0.00688s
width_fitb
0.000864± 0.0001565s
scat_time
0.016285± 0.0020653s

Flux and spectrum

flux
1.76± 0.68Jy
fluence
11.45± 3.65Jy ms
peak_freq
489.0MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
2.91± 1.32
sp_run
-7.25± 1.88

Exposure and fluence thresholds

exp_up
72.54± 42.78hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
9.7Jy ms
low_ft_95
—
up_ft_95
17.8Jy ms

Fit quality

chi_sq
1853667.010
dof
1854083
flag_frac
0.301
