FRB 20200521D

One-off burst

Event ID
84890991
Arrival, 400 MHz
2020-05-21 07:44:03.673 UTC
Right ascension
236.885°
Declination
67.924°

Loading

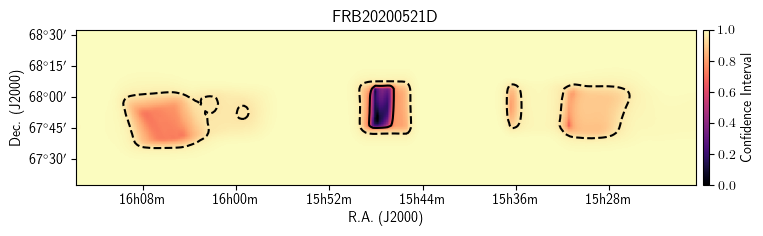

Localization

Loading

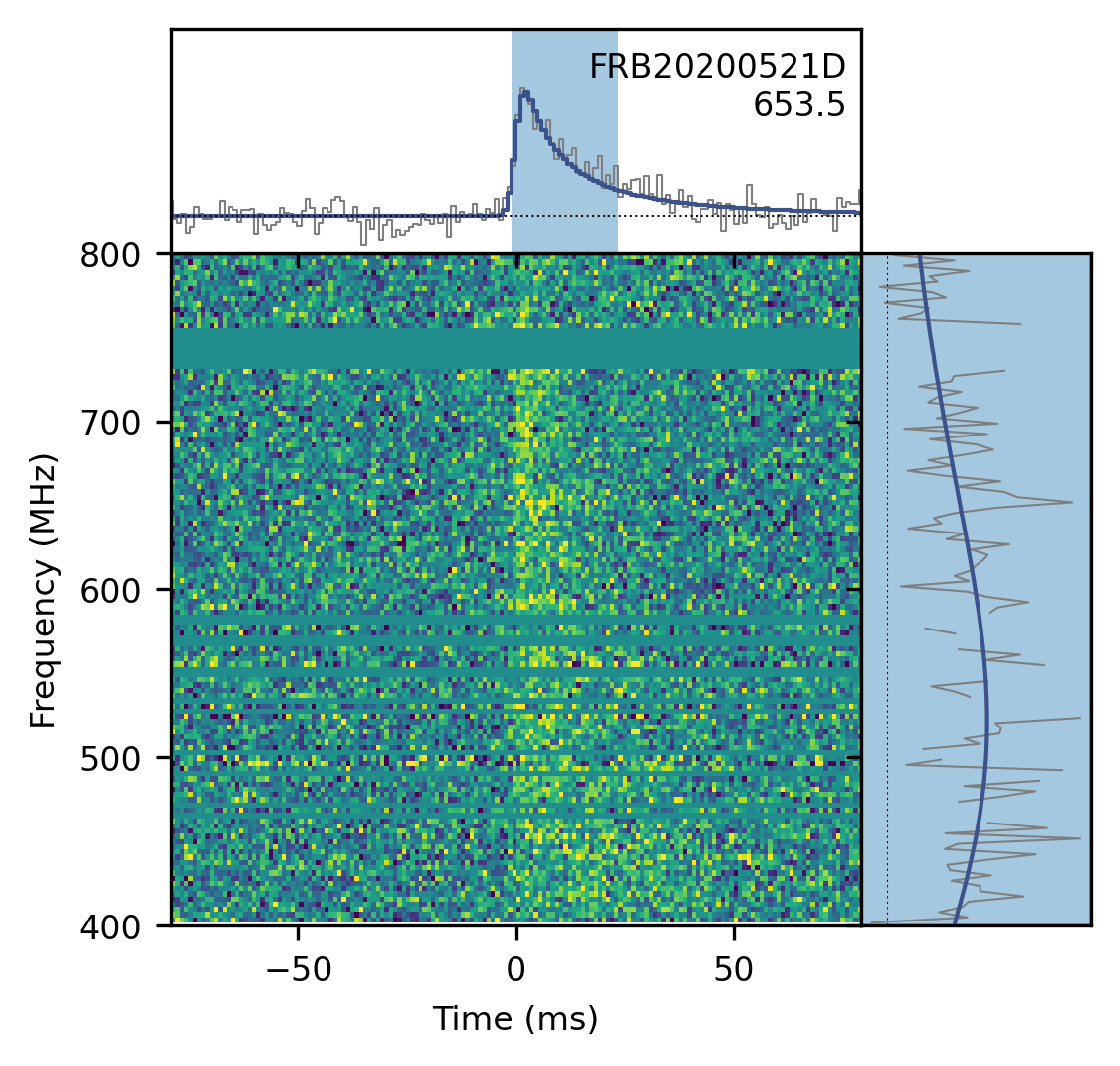

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
236.885± 0.100degrees
dec
67.924± 0.171degrees
gl
102.51degrees
gb
41.53degrees

Detection and dispersion

bonsai_snr
23.0
snr_fitb
35.0
bonsai_dm
653.5pc cm⁻³
dm_fitb
653.5350± 0.04308pc cm⁻³
dm_exc_ne2001
615.5pc cm⁻³
dm_exc_ymw16
622.2pc cm⁻³

Arrival time

mjd_400
58990.32226473265± 7.92 × 10⁻⁹MJD
mjd_inf
58990.32206876063± 1.52 × 10⁻⁸MJD

Burst shape

bc_width
0.02458s
width_fitb
0.001301± 0.0002568s
scat_time
0.055020± 0.0036304s

Flux and spectrum

flux
0.87± 0.38Jy
fluence
12.59± 3.26Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-0.33± 0.58
sp_run
-3.17± 0.84

Exposure and fluence thresholds

exp_up
217.55± 99.10hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
5.1Jy ms
low_ft_95
—
up_ft_95
8.8Jy ms

Fit quality

chi_sq
1883480.007
dof
1884701
flag_frac
0.290
