FRB 20200522A

One-off burst

Event ID
85528572
Arrival, 400 MHz
2020-05-22 13:34:03.003 UTC
Right ascension
324.763°
Declination
13.851°

Loading

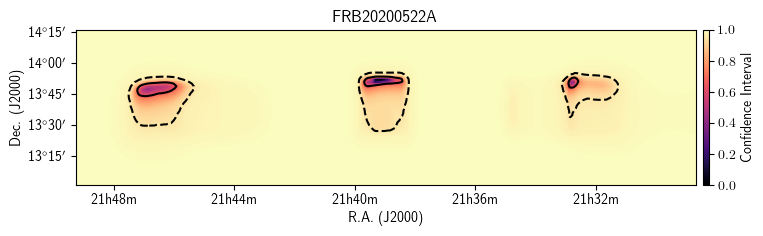

Localization

Loading

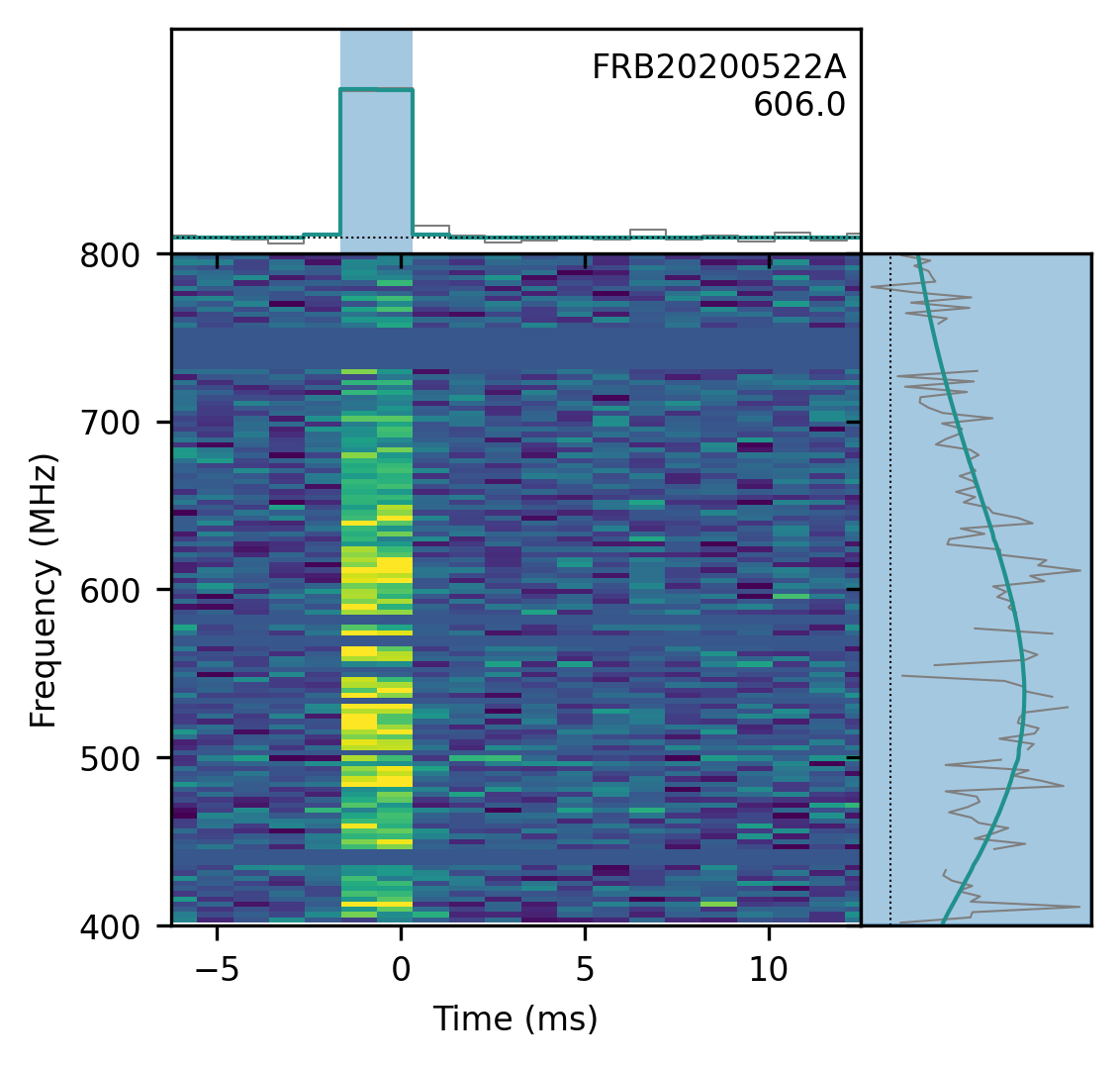

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
324.763± 0.154degrees
dec
13.851± 0.040degrees
gl
68.08degrees
gb
-27.90degrees

Detection and dispersion

bonsai_snr
43.7
snr_fitb
68.6
bonsai_dm
606.6pc cm⁻³
dm_fitb
605.9503± 0.00065pc cm⁻³
dm_exc_ne2001
553.5pc cm⁻³
dm_exc_ymw16
562.9pc cm⁻³

Arrival time

mjd_400
58991.565312539± 9.11 × 10⁻¹¹MJD
mjd_inf
58991.56513083597± 2.15 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000250± 0.0000015s
scat_time
0.000000s

Flux and spectrum

flux
5.08± 1.55Jy
fluence
9.06± 2.56Jy ms
peak_freq
534.7MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
5.67± 0.44
sp_run
-9.79± 0.63

Exposure and fluence thresholds

exp_up
53.31± 44.25hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.5Jy ms
low_ft_95
—
up_ft_95
2.8Jy ms

Fit quality

chi_sq
1821194.458
dof
1825896
flag_frac
0.312
