CHIME/FRBPublic data

FRB 20200523E

One-off burst

Event ID
85584724
Arrival, 400 MHz
2020-05-23 02:51:06.914 UTC
Right ascension
164.111°
Declination
15.740°

Loading

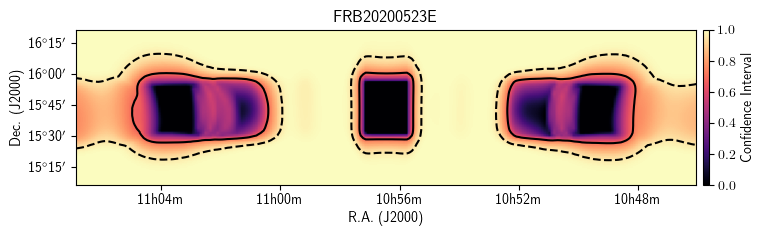

Localization

Loading

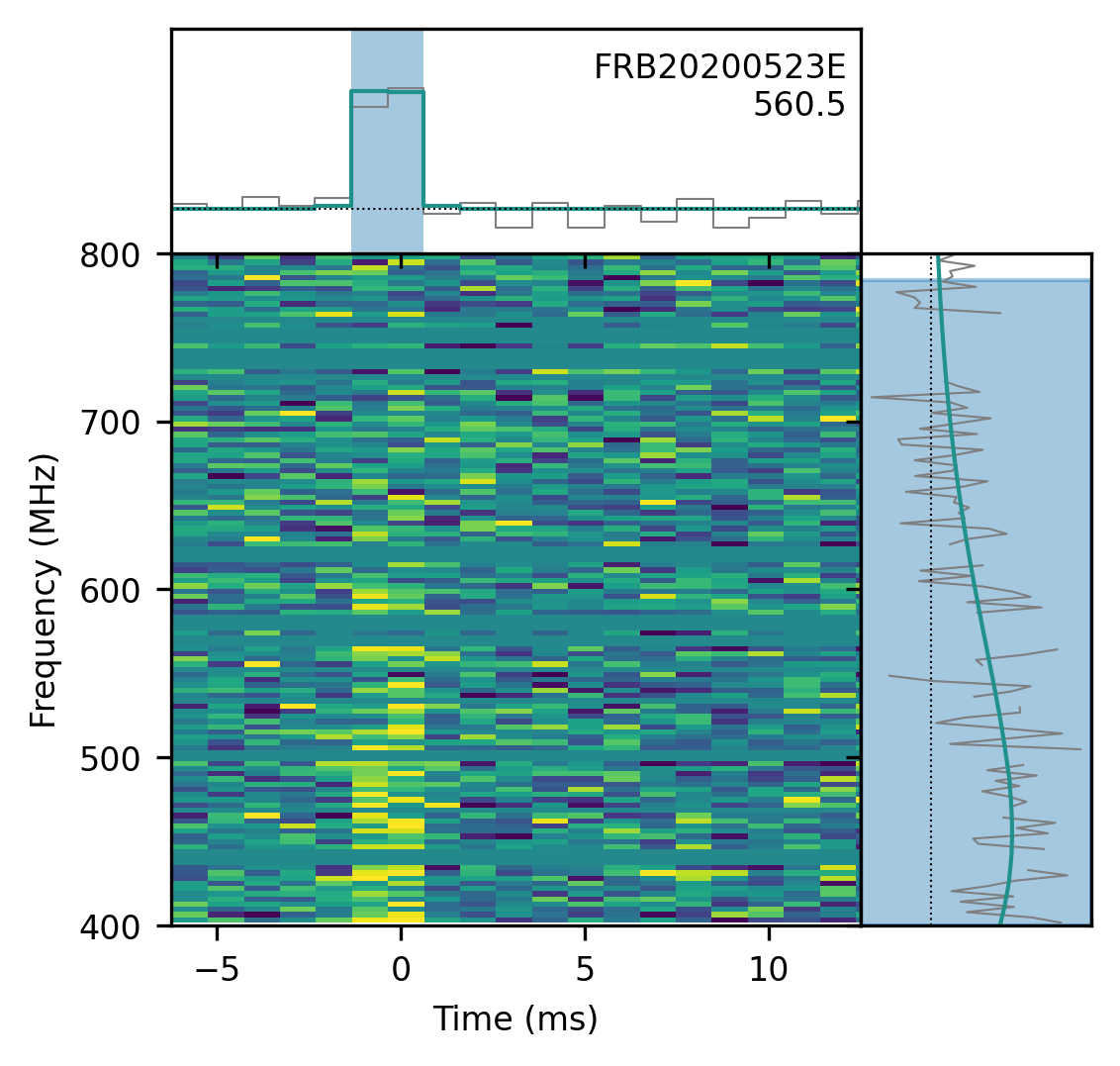

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
164.111± 0.218degrees
dec
15.740± 0.269degrees
gl
230.14degrees
gb
61.01degrees

Detection and dispersion

bonsai_snr
11.5
snr_fitb
17.6
bonsai_dm
561.3pc cm⁻³
dm_fitb
560.4871± 0.00096pc cm⁻³
dm_exc_ne2001
527.9pc cm⁻³
dm_exc_ymw16
537.9pc cm⁻³

Arrival time

mjd_400
58992.118830023916± 9.66 × 10⁻¹¹MJD
mjd_inf
58992.11866195366± 3.04 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000171± 0.0000017s
scat_time
0.000000s

Flux and spectrum

flux
0.72± 0.24Jy
fluence
1.29± 0.43Jy ms
peak_freq
446.0MHz
low_freq
400.2MHz
high_freq
784.1MHz
sp_idx
1.57± 1.32
sp_run
-7.23± 2.32

Exposure and fluence thresholds

exp_up
74.22± 43.91hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.7Jy ms
low_ft_95
—
up_ft_95
1.2Jy ms

Fit quality

chi_sq
1797405.448
dof
1797708
flag_frac
0.323
