FRB 20200609A

One-off burst

Event ID
90709758
Arrival, 400 MHz
2020-06-09 23:38:23.395 UTC
Right ascension
134.075°
Declination
26.106°

Loading

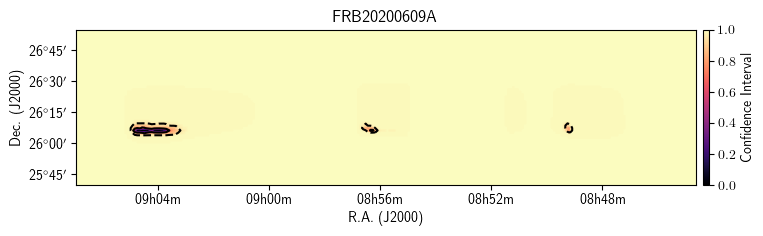

Localization

Loading

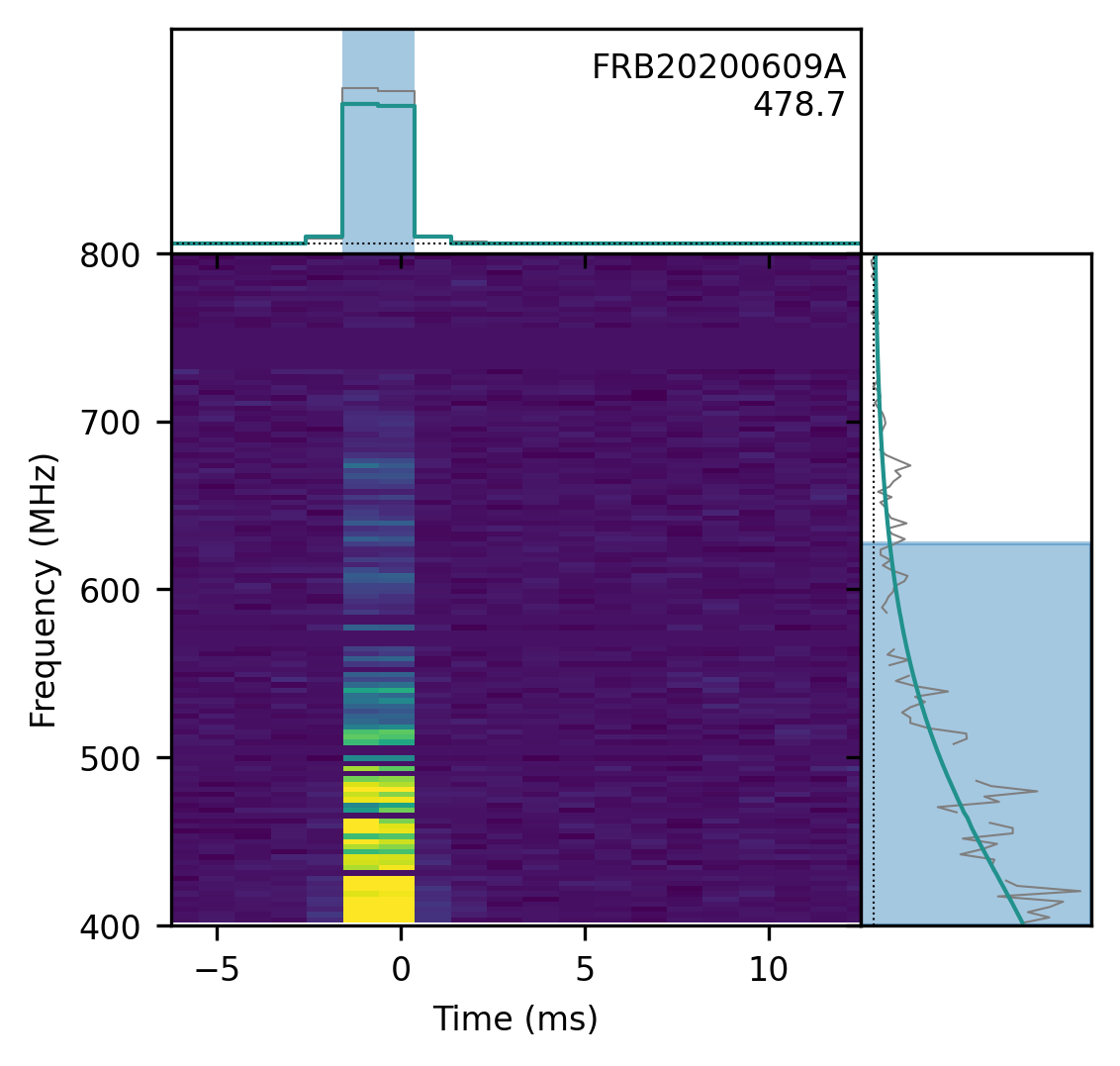

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
134.075± 0.015degrees
dec
26.106± 0.004degrees
gl
199.78degrees
gb
37.94degrees

Detection and dispersion

bonsai_snr
163.5
snr_fitb
348.1
bonsai_dm
477.2pc cm⁻³
dm_fitb
478.7389± 0.00016pc cm⁻³
dm_exc_ne2001
431.8pc cm⁻³
dm_exc_ymw16
435.9pc cm⁻³

Arrival time

mjd_400
59009.98499300202± 1.10 × 10⁻¹¹MJD
mjd_inf
59009.98484944517± 4.97 × 10⁻¹¹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000284± 0.0000003s
scat_time
0.000000s

Flux and spectrum

flux
10.36± 2.69Jy
fluence
20.21± 5.00Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
627.5MHz
sp_idx
-2.85± 0.08
sp_run
-5.05± 0.20

Exposure and fluence thresholds

exp_up
5.46± 13.37hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.9Jy ms
low_ft_95
—
up_ft_95
1.6Jy ms

Fit quality

chi_sq
1959859.828
dof
2081046
flag_frac
0.216
