FRB 20200609B

One-off burst

Event ID
90660562
Arrival, 400 MHz
2020-06-09 11:47:19.624 UTC
Right ascension
314.371°
Declination
30.693°

Loading

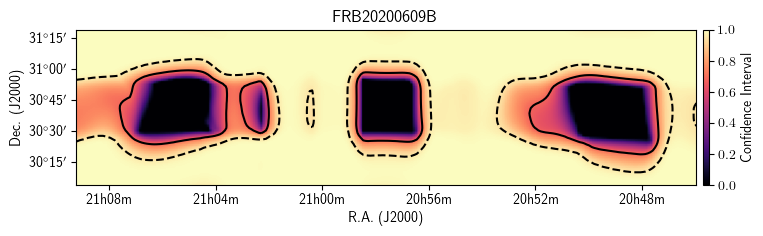

Localization

Loading

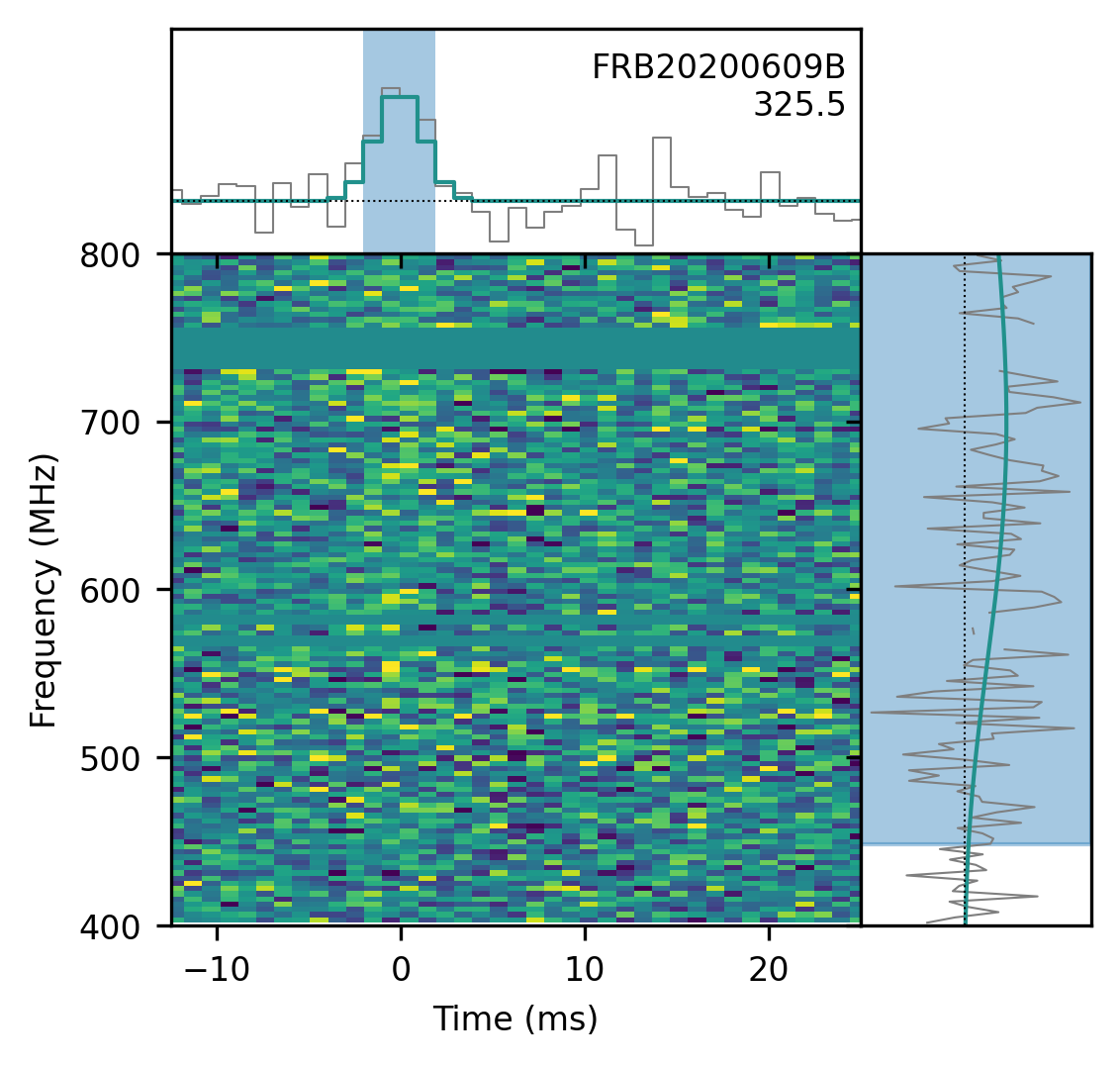

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
314.371± 0.266degrees
dec
30.693± 0.280degrees
gl
74.89degrees
gb
-9.63degrees

Detection and dispersion

bonsai_snr
8.1
snr_fitb
8.6
bonsai_dm
325.1pc cm⁻³
dm_fitb
325.4639± 0.08580pc cm⁻³
dm_exc_ne2001
184.3pc cm⁻³
dm_exc_ymw16
218.7pc cm⁻³

Arrival time

mjd_400
59009.491199351665± 1.66 × 10⁻⁸MJD
mjd_inf
59009.49110175657± 3.06 × 10⁻⁸MJD

Burst shape

bc_width
0.00393s
width_fitb
0.001244± 0.0001881s
scat_time
0.000000s

Flux and spectrum

flux
0.36± 0.16Jy
fluence
0.75± 0.28Jy ms
peak_freq
699.6MHz
low_freq
448.2MHz
high_freq
800.2MHz
sp_idx
12.97± 6.81
sp_run
-11.61± 6.78

Exposure and fluence thresholds

exp_up
78.08± 49.83hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.8Jy ms
low_ft_95
—
up_ft_95
1.5Jy ms

Fit quality

chi_sq
2141241.323
dof
2141310
flag_frac
0.193
