FRB 20200617A

One-off burst

Event ID
93628004
Arrival, 400 MHz
2020-06-17 09:25:07.584 UTC
Right ascension
288.003°
Declination
66.606°

Loading

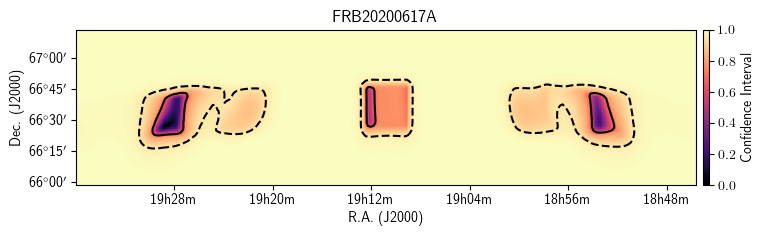

Localization

Loading

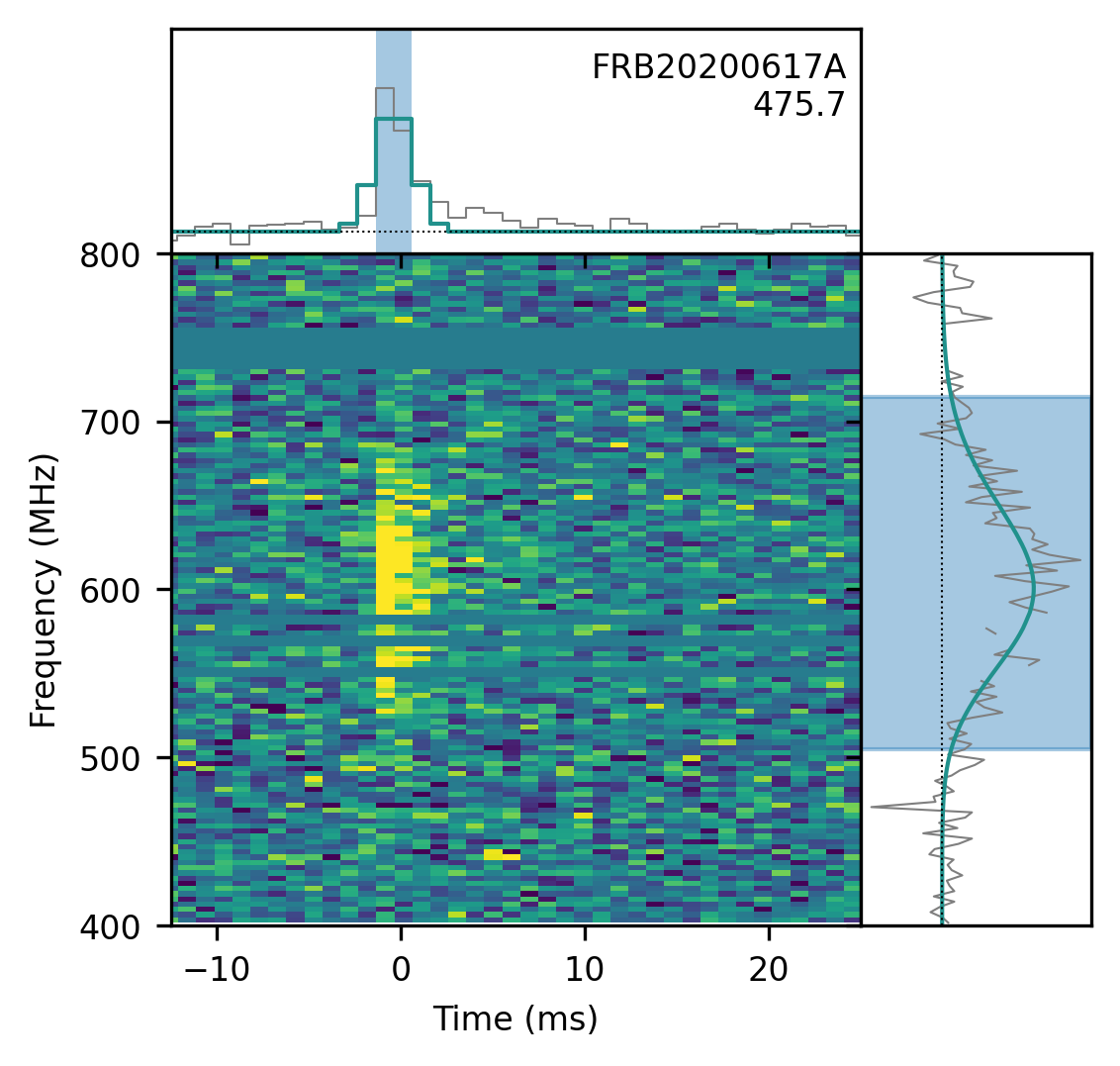

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
288.003± 0.037degrees
dec
66.606± 0.161degrees
gl
97.54degrees
gb
22.76degrees

Detection and dispersion

bonsai_snr
21.0
snr_fitb
32.6
bonsai_dm
473.9pc cm⁻³
dm_fitb
475.6788± 0.02949pc cm⁻³
dm_exc_ne2001
414.5pc cm⁻³
dm_exc_ymw16
416.7pc cm⁻³

Arrival time

mjd_400
59017.392448891296± 5.04 × 10⁻⁹MJD
mjd_inf
59017.39230625205± 1.02 × 10⁻⁸MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000962± 0.0000507s
scat_time
0.000000s

Flux and spectrum

flux
1.61± 0.71Jy
fluence
6.82± 2.34Jy ms
peak_freq
600.5MHz
low_freq
504.8MHz
high_freq
714.2MHz
sp_idx
62.09± 5.60
sp_run
-76.52± 6.72

Exposure and fluence thresholds

exp_up
213.43± 102.80hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
5.2Jy ms
low_ft_95
—
up_ft_95
9.3Jy ms

Fit quality

chi_sq
2177510.498
dof
2178570
flag_frac
0.179
