FRB 20200617B

One-off burst

Event ID
93625528
Arrival, 400 MHz
2020-06-17 07:58:29.838 UTC
Right ascension
267.476°
Declination
73.271°

Loading

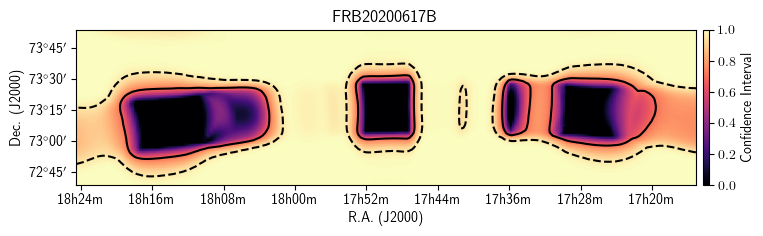

Localization

Loading

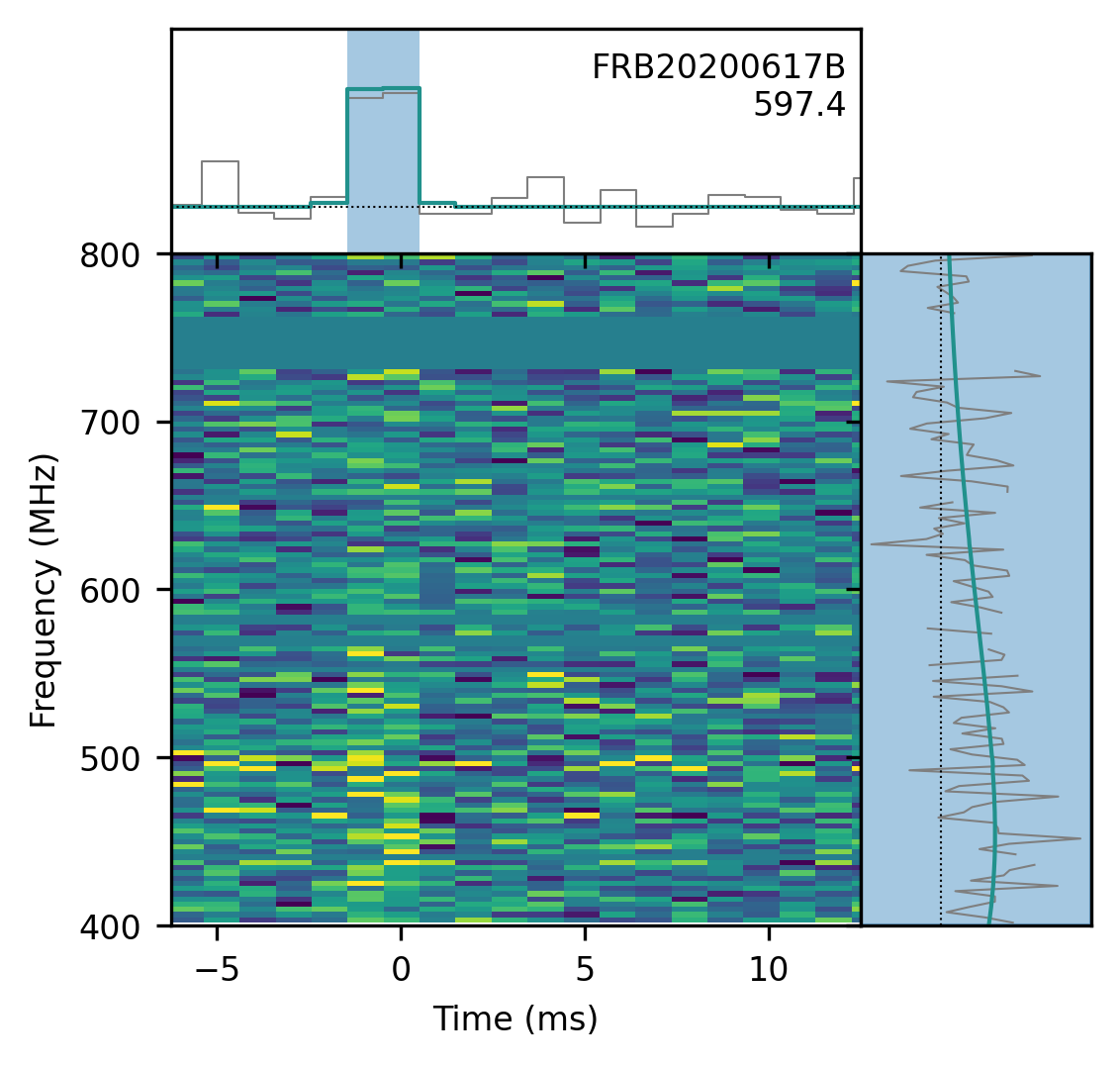

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
267.476± 0.237degrees
dec
73.271± 0.259degrees
gl
104.18degrees
gb
30.31degrees

Detection and dispersion

bonsai_snr
9.4
snr_fitb
12.8
bonsai_dm
596.9pc cm⁻³
dm_fitb
597.4176± 0.00255pc cm⁻³
dm_exc_ne2001
549.1pc cm⁻³
dm_exc_ymw16
554.2pc cm⁻³

Arrival time

mjd_400
59017.332289791295± 2.90 × 10⁻¹⁰MJD
mjd_inf
59017.3321106469± 8.17 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000250± 0.0000073s
scat_time
0.000000s

Flux and spectrum

flux
0.66± 0.42Jy
fluence
1.55± 0.71Jy ms
peak_freq
436.0MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
0.90± 1.65
sp_run
-5.23± 2.83

Exposure and fluence thresholds

exp_up
255.82± 147.84hour
exp_low
165.05± 114.40hour
low_ft_68
6.0Jy ms
up_ft_68
0.9Jy ms
low_ft_95
12.1Jy ms
up_ft_95
1.7Jy ms

Fit quality

chi_sq
2164802.910
dof
2164962
flag_frac
0.184
