CHIME/FRBPublic data

FRB 20200713B

One-off burst

Event ID
99491290
Arrival, 400 MHz
2020-07-13 04:56:13.935 UTC
Right ascension
246.217°
Declination
31.689°

Loading

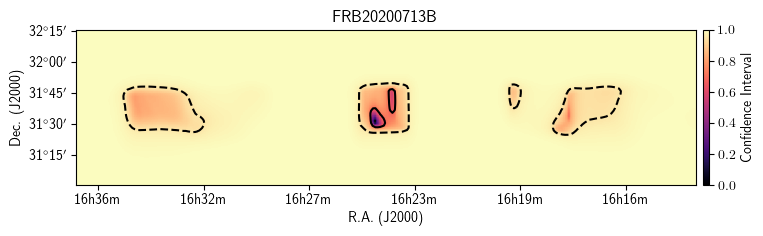

Localization

Loading

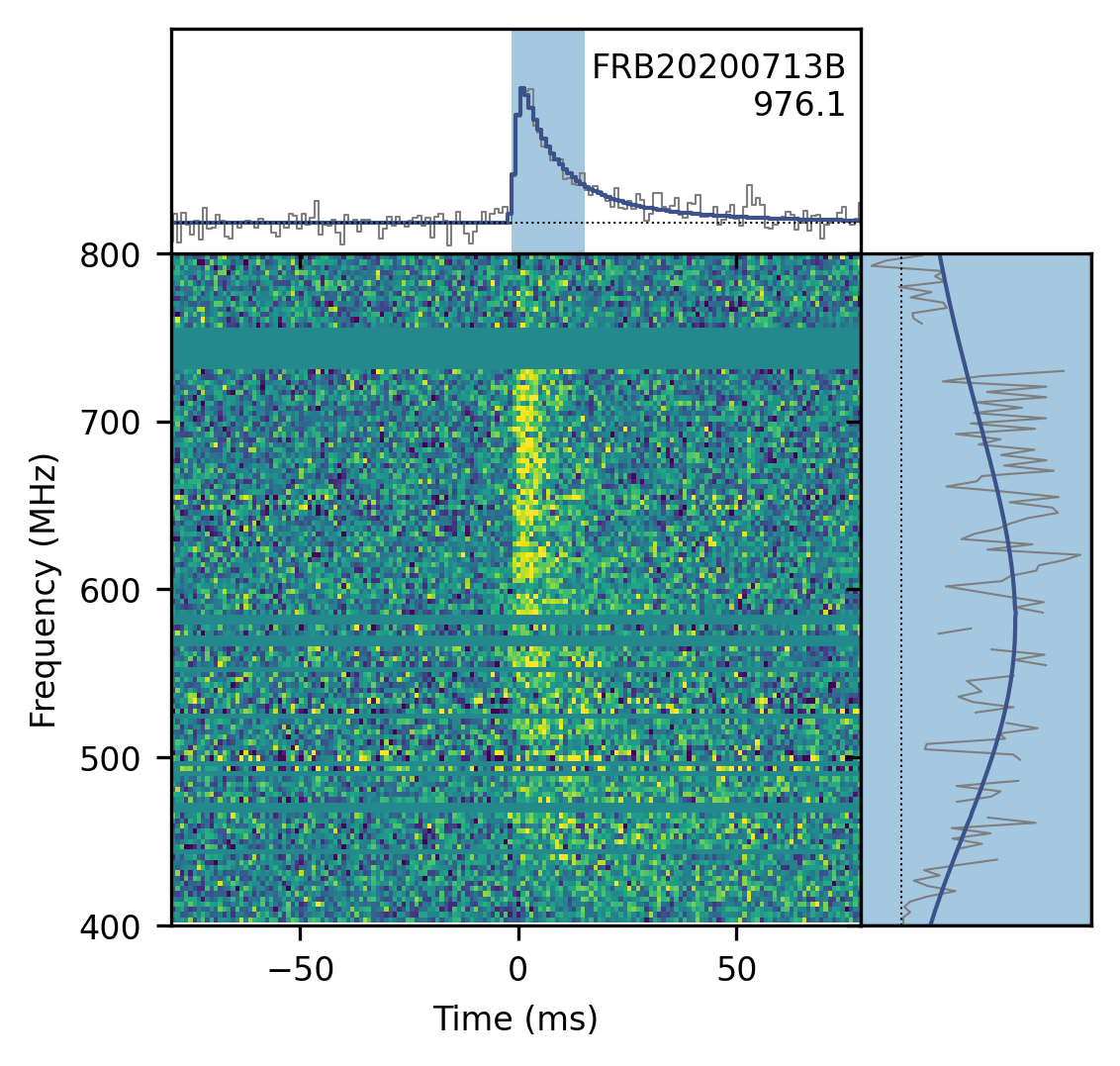

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
246.217± 0.027degrees
dec
31.689± 0.096degrees
gl
52.00degrees
gb
43.75degrees

Detection and dispersion

bonsai_snr
31.8
snr_fitb
46.3
bonsai_dm
977.0pc cm⁻³
dm_fitb
976.0763± 0.02926pc cm⁻³
dm_exc_ne2001
942.7pc cm⁻³
dm_exc_ymw16
946.9pc cm⁻³

Arrival time

mjd_400
59043.20571684247± 5.49 × 10⁻⁹MJD
mjd_inf
59043.20542415172± 1.04 × 10⁻⁸MJD

Burst shape

bc_width
0.01671s
width_fitb
0.000791± 0.0001217s
scat_time
0.057467± 0.0028534s

Flux and spectrum

flux
1.26± 0.41Jy
fluence
14.52± 4.28Jy ms
peak_freq
506.6MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
3.54± 0.55
sp_run
-7.51± 0.71

Exposure and fluence thresholds

exp_up
104.19± 28.57hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
6.2Jy ms
low_ft_95
—
up_ft_95
10.6Jy ms

Fit quality

chi_sq
2000504.716
dof
2002637
flag_frac
0.245
