CHIME/FRBPublic data

FRB 20200713C

One-off burst

Event ID
99492614
Arrival, 400 MHz
2020-07-13 05:00:58.894 UTC
Right ascension
247.358°
Declination
83.405°

Loading

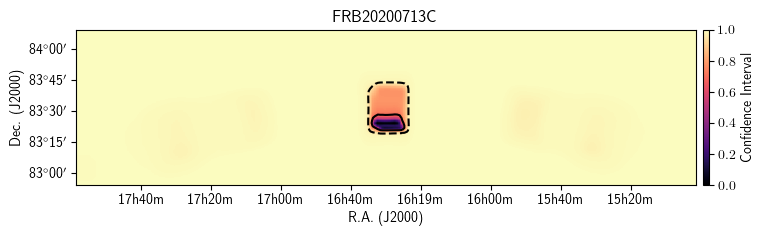

Localization

Loading

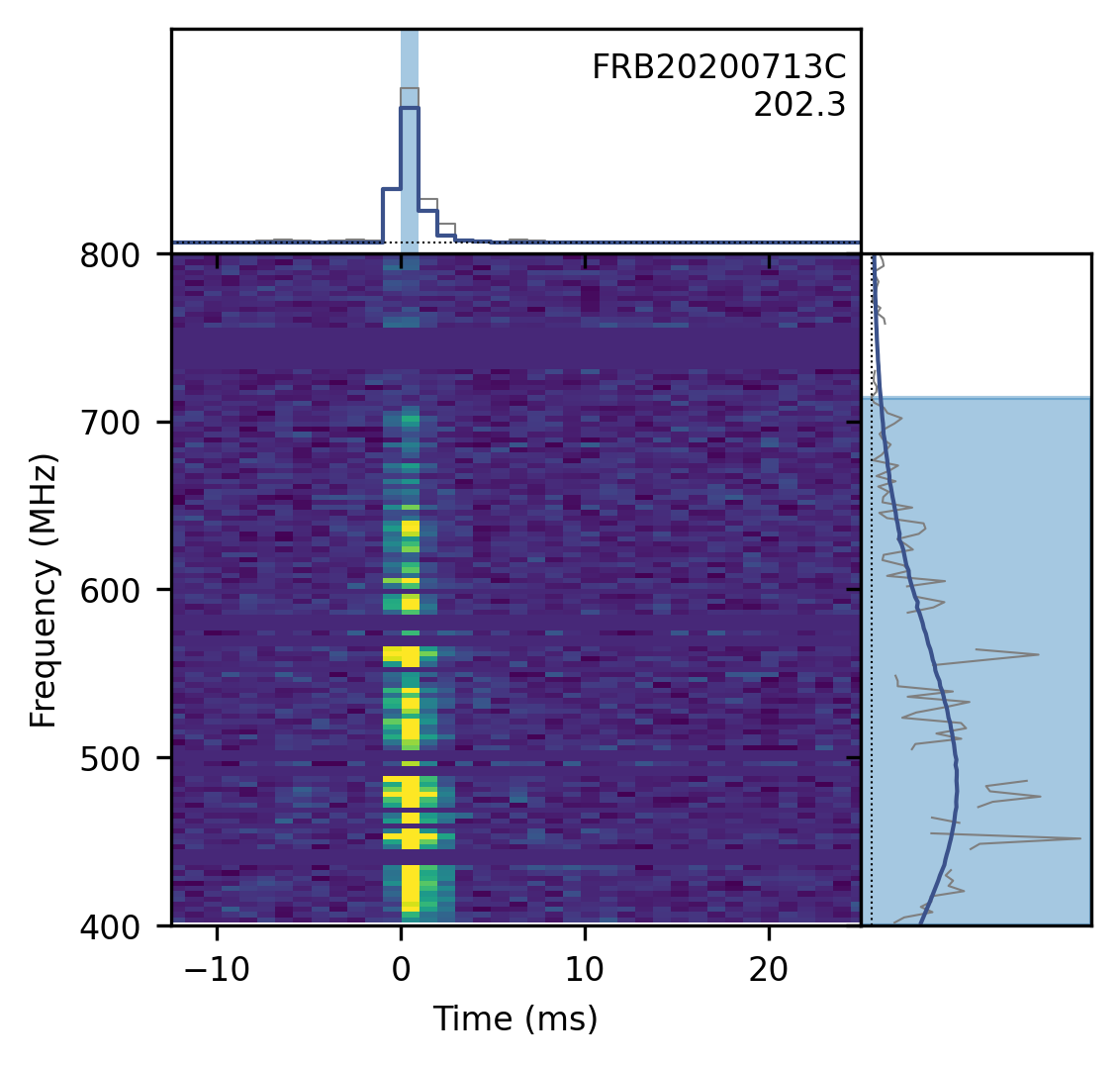

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
247.358± 0.134degrees
dec
83.405± 0.064degrees
gl
116.68degrees
gb
30.82degrees

Detection and dispersion

bonsai_snr
75.5
snr_fitb
205.6
bonsai_dm
202.2pc cm⁻³
dm_fitb
202.2973± 0.00052pc cm⁻³
dm_exc_ne2001
153.4pc cm⁻³
dm_exc_ymw16
158.4pc cm⁻³

Arrival time

mjd_400
59043.20901498076± 7.17 × 10⁻¹¹MJD
mjd_inf
59043.20895431896± 1.71 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00098s
width_fitb
0.000249± 0.0000020s
scat_time
0.001112± 0.0000104s

Flux and spectrum

flux
2.13± 0.96Jy
fluence
3.62± 1.59Jy ms
peak_freq
464.5MHz
low_freq
400.2MHz
high_freq
713.6MHz
sp_idx
3.72± 0.12
sp_run
-12.48± 0.24

Exposure and fluence thresholds

exp_up
731.32± 166.84hour
exp_low
477.72± 306.21hour
low_ft_68
1.3Jy ms
up_ft_68
0.6Jy ms
low_ft_95
2.4Jy ms
up_ft_95
1.1Jy ms

Fit quality

chi_sq
1825605.448
dof
1867853
flag_frac
0.296
