CHIME/FRBPublic data

FRB 20200717E

One-off burst

Event ID
101259530
Arrival, 400 MHz
2020-07-17 23:50:50.740 UTC
Right ascension
174.048°
Declination
56.816°

Loading

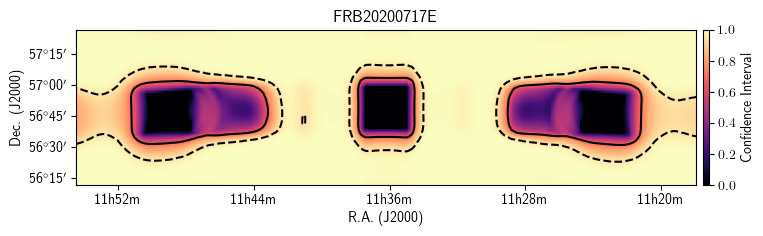

Localization

Loading

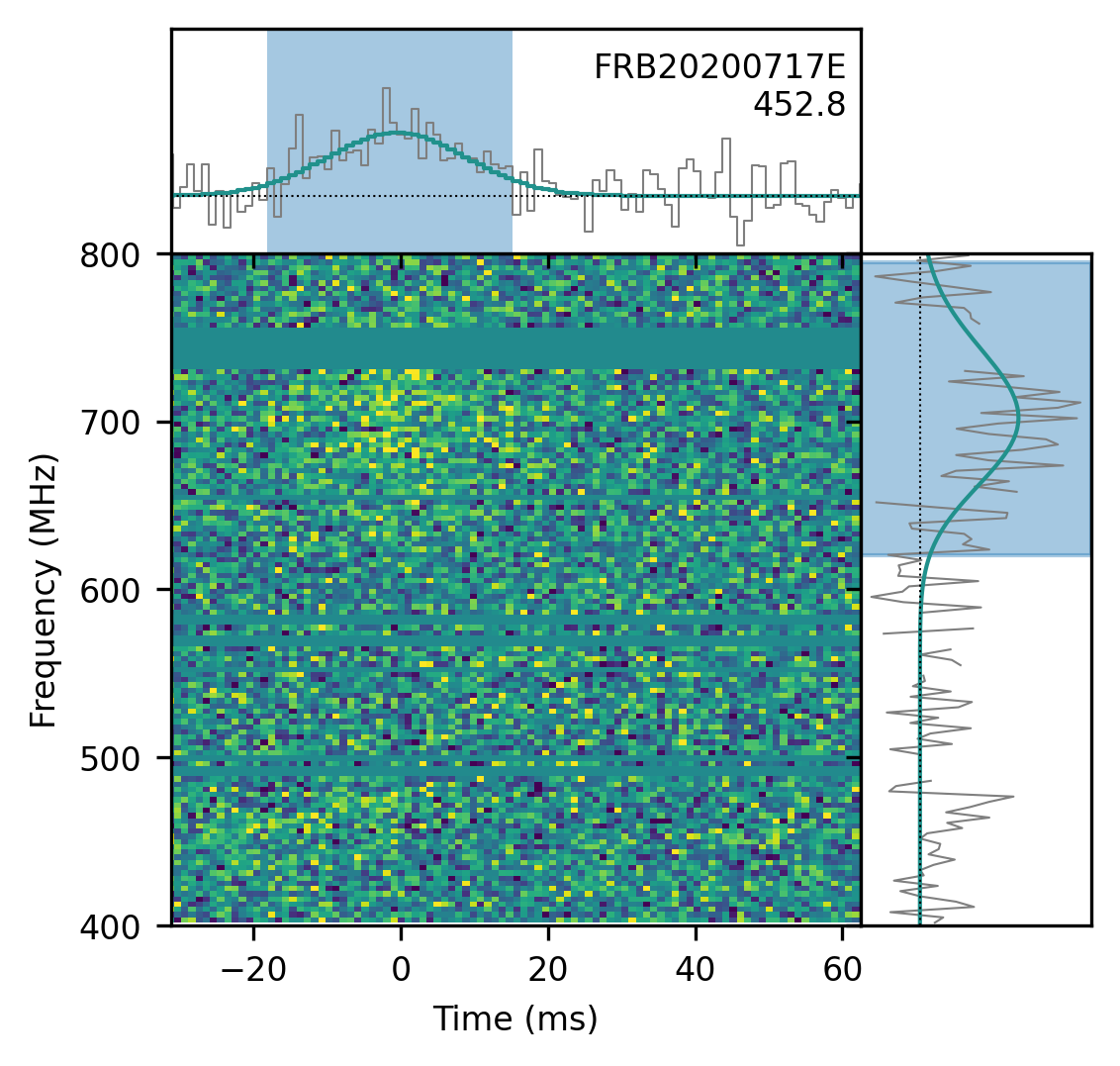

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
174.048± 0.227degrees
dec
56.816± 0.241degrees
gl
142.07degrees
gb
57.43degrees

Detection and dispersion

bonsai_snr
9.9
snr_fitb
16.4
bonsai_dm
452.9pc cm⁻³
dm_fitb
452.8443± 1.15764pc cm⁻³
dm_exc_ne2001
420.0pc cm⁻³
dm_exc_ymw16
429.6pc cm⁻³

Arrival time

mjd_400
59047.99364282381± 2.33 × 10⁻⁷MJD
mjd_inf
59047.99350703183± 4.18 × 10⁻⁷MJD

Burst shape

bc_width
0.03342s
width_fitb
0.009519± 0.0009500s
scat_time
0.000000s

Flux and spectrum

flux
0.25± 0.13Jy
fluence
4.16± 1.35Jy ms
peak_freq
702.1MHz
low_freq
620.2MHz
high_freq
794.7MHz
sp_idx
168.40± 29.04
sp_run
-149.79± 25.83

Exposure and fluence thresholds

exp_up
130.01± 76.73hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
5.6Jy ms
low_ft_95
—
up_ft_95
10.2Jy ms

Fit quality

chi_sq
3923570.280
dof
3923832
flag_frac
0.217
