CHIME/FRBPublic data

FRB 20200718D

One-off burst

Event ID
101478954
Arrival, 400 MHz
2020-07-18 04:20:13.616 UTC
Right ascension
241.176°
Declination
42.372°

Loading

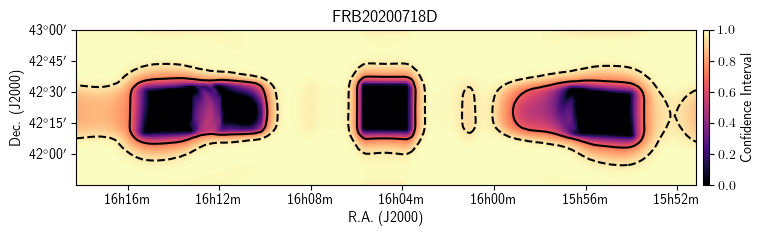

Localization

Loading

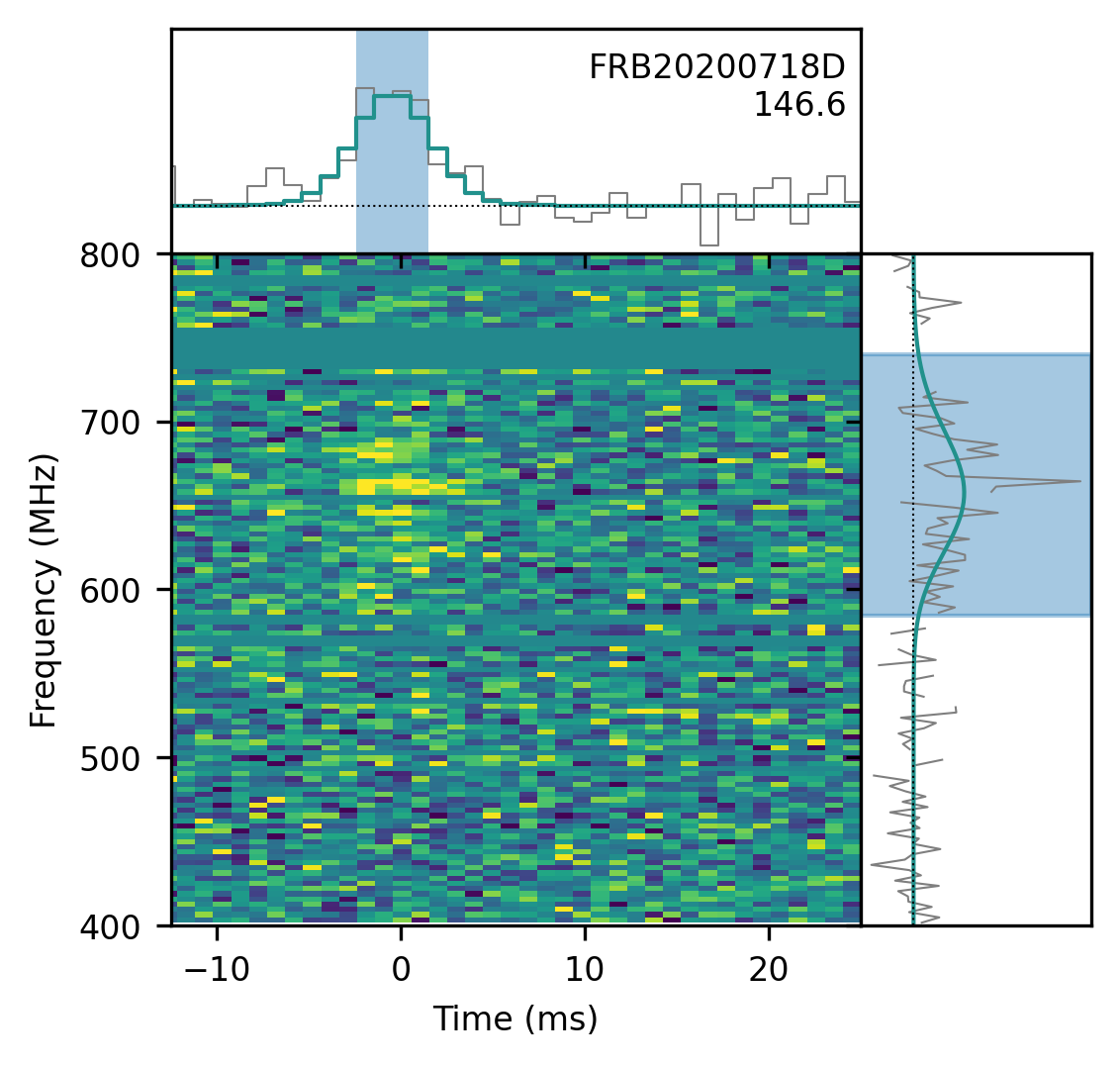

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
241.176± 0.236degrees
dec
42.372± 0.252degrees
gl
67.19degrees
gb
48.12degrees

Detection and dispersion

bonsai_snr
9.0
snr_fitb
15.6
bonsai_dm
147.2pc cm⁻³
dm_fitb
146.6194± 0.25596pc cm⁻³
dm_exc_ne2001
114.7pc cm⁻³
dm_exc_ymw16
119.7pc cm⁻³

Arrival time

mjd_400
59048.180713150476± 4.85 × 10⁻⁸MJD
mjd_inf
59048.1806691845± 9.08 × 10⁻⁸MJD

Burst shape

bc_width
0.00393s
width_fitb
0.002057± 0.0002091s
scat_time
0.000000s

Flux and spectrum

flux
0.34± 0.11Jy
fluence
5.25± 0.79Jy ms
peak_freq
657.5MHz
low_freq
584.5MHz
high_freq
739.6MHz
sp_idx
164.97± 42.46
sp_run
-166.16± 42.38

Exposure and fluence thresholds

exp_up
95.94± 57.12hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
6.2Jy ms
low_ft_95
—
up_ft_95
10.2Jy ms

Fit quality

chi_sq
1988308.164
dof
1988544
flag_frac
0.251
