FRB 20200718C

One-off burst

Event ID
101527874
Arrival, 400 MHz
2020-07-18 14:16:24.880 UTC
Right ascension
31.282°
Declination
23.553°

Loading

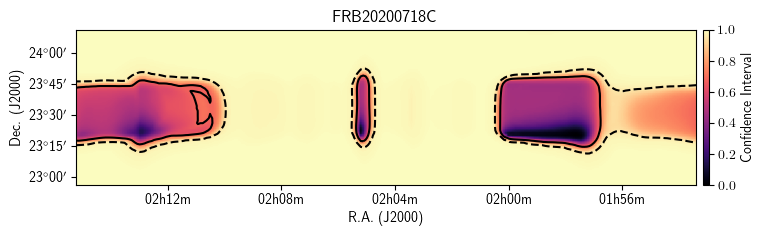

Localization

Loading

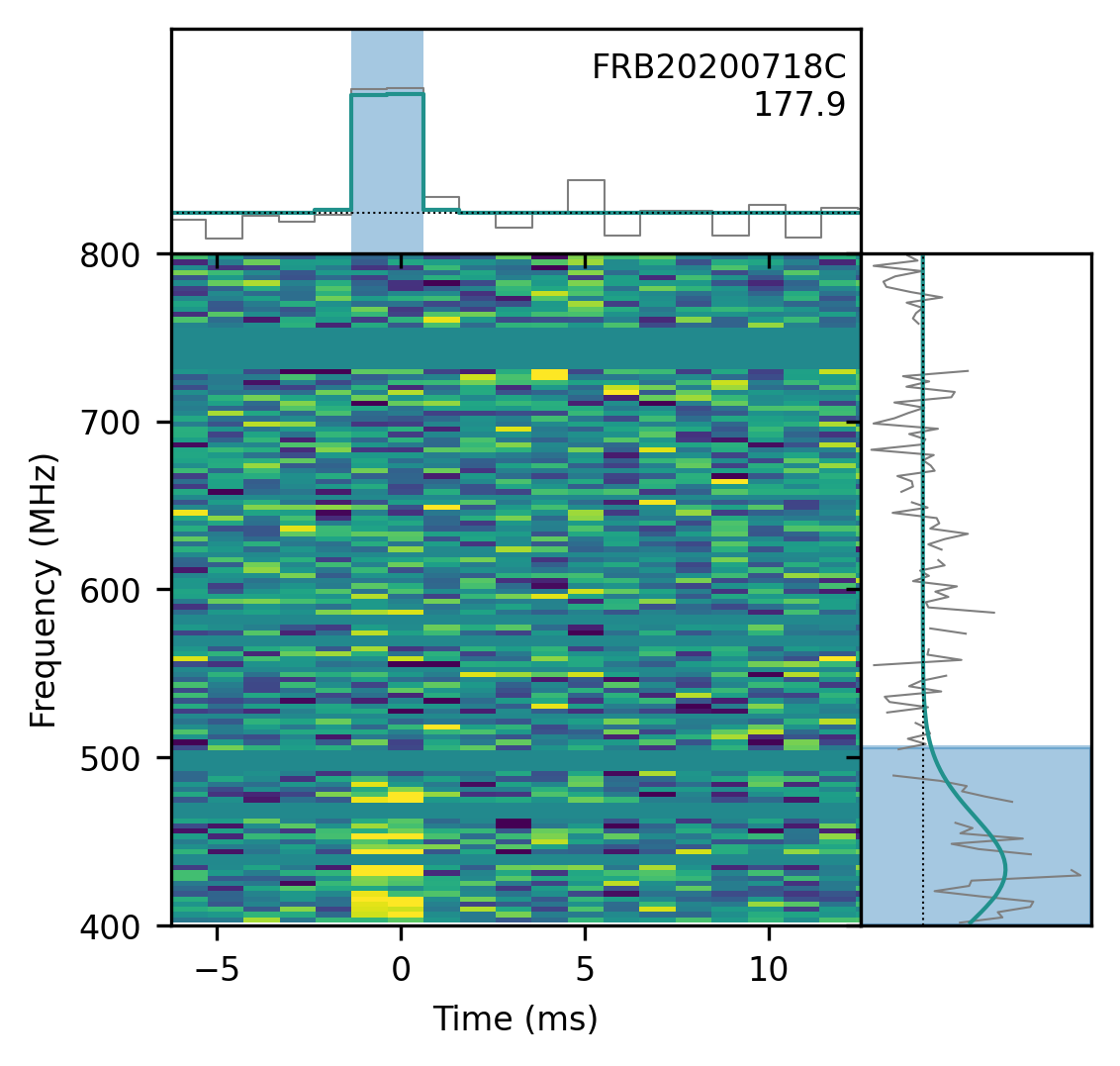

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
31.282± 0.055degrees
dec
23.553± 0.265degrees
gl
144.00degrees
gb
-36.29degrees

Detection and dispersion

bonsai_snr
11.5
snr_fitb
15.8
bonsai_dm
179.5pc cm⁻³
dm_fitb
177.9446± 0.01064pc cm⁻³
dm_exc_ne2001
132.2pc cm⁻³
dm_exc_ymw16
140.6pc cm⁻³

Arrival time

mjd_400
59048.59473240363± 5.46 × 10⁻¹⁰MJD
mjd_inf
59048.594679044356± 3.24 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000323± 0.0000134s
scat_time
0.000000s

Flux and spectrum

flux
0.31± 0.13Jy
fluence
0.30± 0.17Jy ms
peak_freq
433.4MHz
low_freq
400.2MHz
high_freq
506.2MHz
sp_idx
15.22± 4.27
sp_run
-95.48± 21.07

Exposure and fluence thresholds

exp_up
76.30± 51.04hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.4Jy ms
low_ft_95
—
up_ft_95
0.8Jy ms

Fit quality

chi_sq
1890615.320
dof
1890858
flag_frac
0.288
