FRB 20200720A

One-off burst

Event ID
103197460
Arrival, 400 MHz
2020-07-20 23:39:45.880 UTC
Right ascension
172.669°
Declination
58.613°

Loading

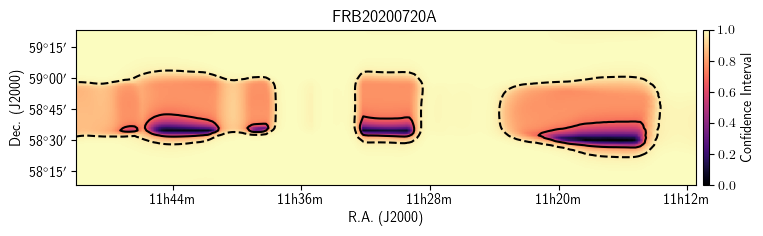

Localization

Loading

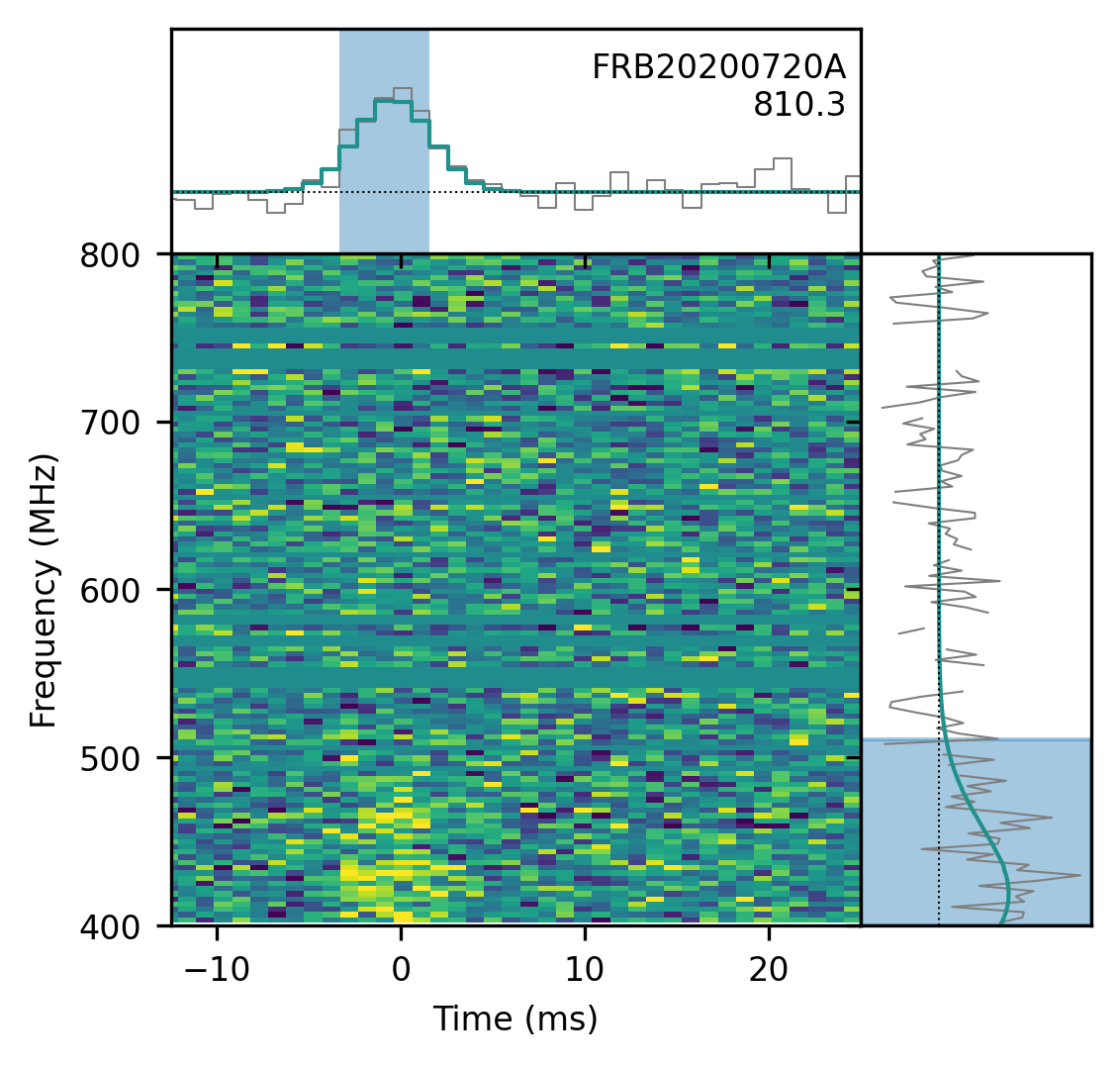

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
172.669± 0.220degrees
dec
58.613± 0.082degrees
gl
141.44degrees
gb
55.52degrees

Detection and dispersion

bonsai_snr
9.6
snr_fitb
12.5
bonsai_dm
812.0pc cm⁻³
dm_fitb
810.3431± 0.08767pc cm⁻³
dm_exc_ne2001
776.8pc cm⁻³
dm_exc_ymw16
786.3pc cm⁻³

Arrival time

mjd_400
59050.985947689944± 4.25 × 10⁻⁹MJD
mjd_inf
59050.98570469674± 2.66 × 10⁻⁸MJD

Burst shape

bc_width
0.00492s
width_fitb
0.001917± 0.0001606s
scat_time
0.000000s

Flux and spectrum

flux
0.36± 0.16Jy
fluence
1.84± 0.42Jy ms
peak_freq
418.4MHz
low_freq
400.2MHz
high_freq
510.9MHz
sp_idx
5.12± 4.27
sp_run
-57.62± 20.72

Exposure and fluence thresholds

exp_up
117.96± 82.96hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.2Jy ms
low_ft_95
—
up_ft_95
2.1Jy ms

Fit quality

chi_sq
2034239.321
dof
2034390
flag_frac
0.234
