FRB 20200720B

One-off burst

Event ID
102823390
Arrival, 400 MHz
2020-07-20 07:27:31.862 UTC
Right ascension
289.470°
Declination
46.945°

Loading

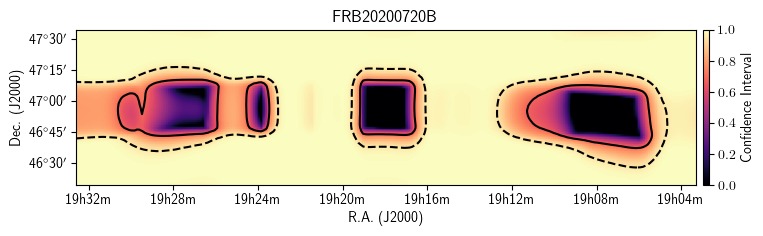

Localization

Loading

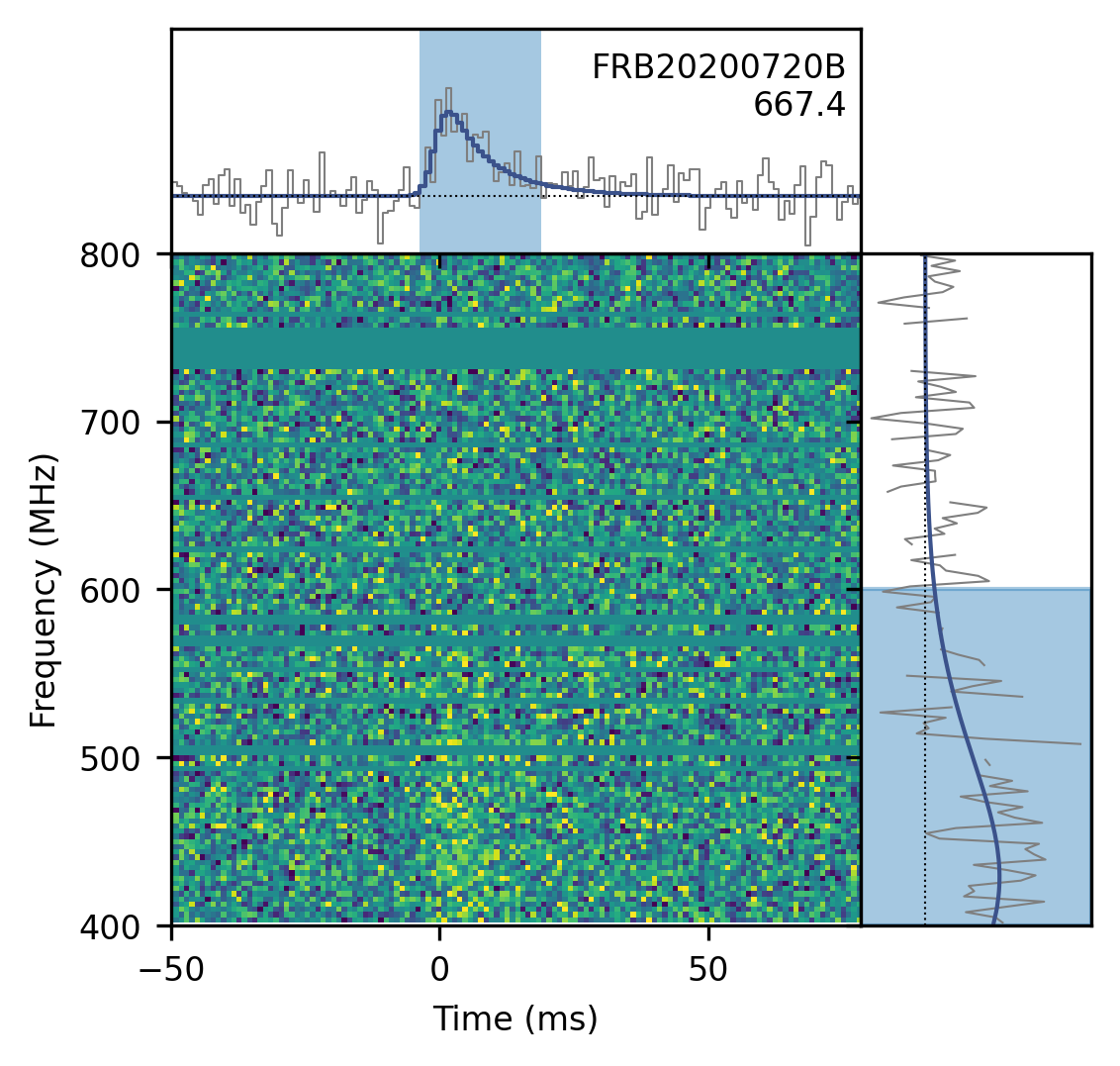

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
289.470± 0.225degrees
dec
46.945± 0.222degrees
gl
78.27degrees
gb
15.26degrees

Detection and dispersion

bonsai_snr
11.8
snr_fitb
14.5
bonsai_dm
666.4pc cm⁻³
dm_fitb
667.3628± 0.11057pc cm⁻³
dm_exc_ne2001
579.0pc cm⁻³
dm_exc_ymw16
581.6pc cm⁻³

Arrival time

mjd_400
59050.31078544507± 1.11 × 10⁻⁸MJD
mjd_inf
59050.31058532657± 3.50 × 10⁻⁸MJD

Burst shape

bc_width
0.02261s
width_fitb
0.001737± 0.0005786s
scat_time
0.014660± 0.0028313s

Flux and spectrum

flux
0.41± 0.19Jy
fluence
4.13± 1.22Jy ms
peak_freq
409.5MHz
low_freq
400.2MHz
high_freq
600.3MHz
sp_idx
0.72± 2.41
sp_run
-15.73± 7.05

Exposure and fluence thresholds

exp_up
109.90± 64.21hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.3Jy ms
low_ft_95
—
up_ft_95
4.1Jy ms

Fit quality

chi_sq
2076954.584
dof
2077157
flag_frac
0.217
