CHIME/FRBPublic data

FRB 20200722B

One-off burst

Event ID
104231403
Arrival, 400 MHz
2020-07-22 20:46:28.441 UTC
Right ascension
132.348°
Declination
24.168°

Loading

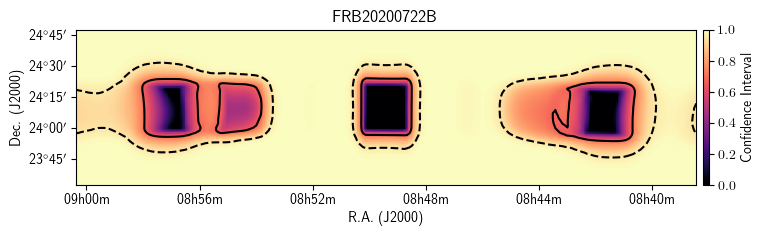

Localization

Loading

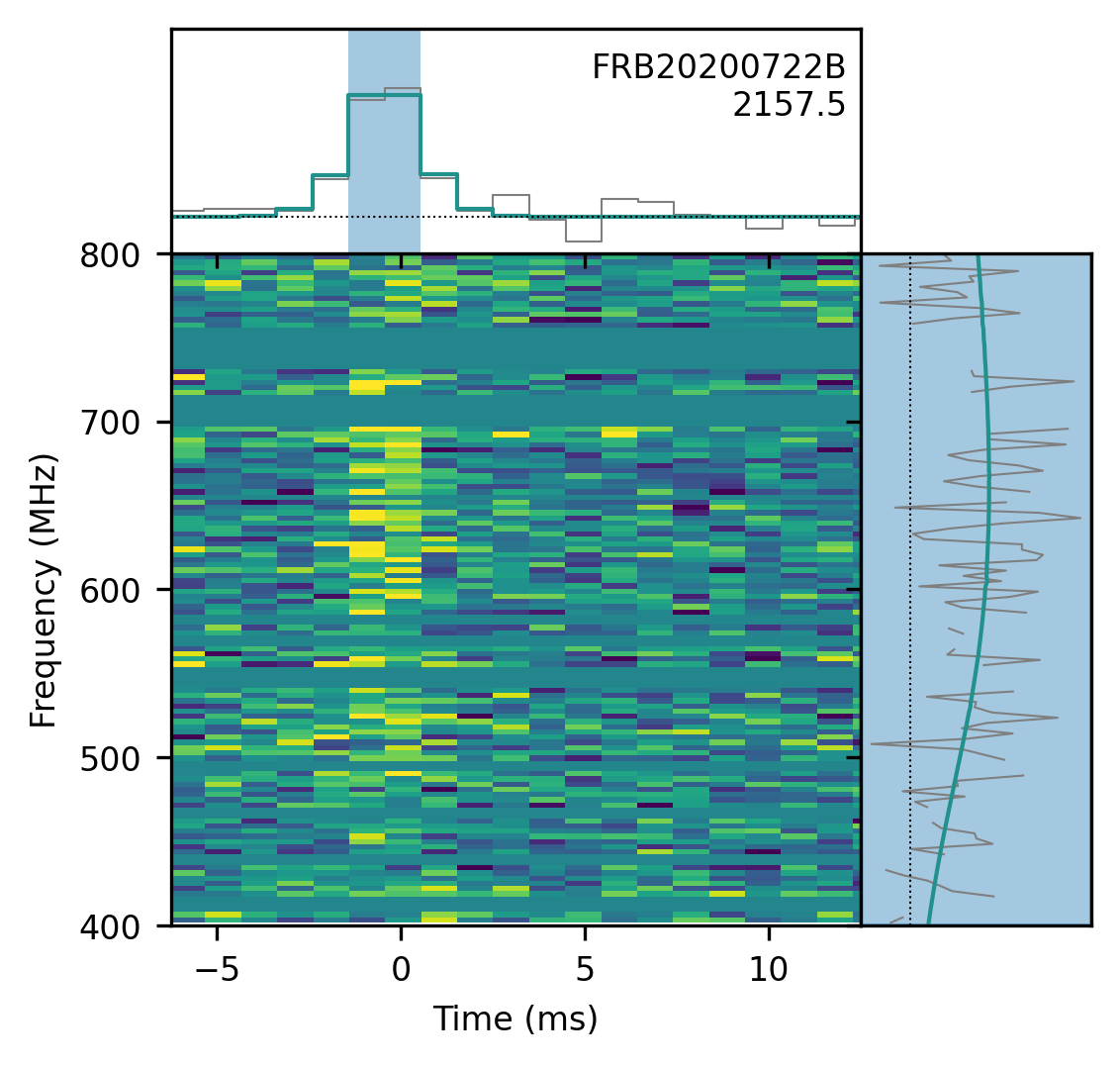

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
132.348± 0.203degrees
dec
24.168± 0.230degrees
gl
201.57degrees
gb
35.90degrees

Detection and dispersion

bonsai_snr
13.6
snr_fitb
20.1
bonsai_dm
2157.7pc cm⁻³
dm_fitb
2157.4737± 0.00453pc cm⁻³
dm_exc_ne2001
2108.6pc cm⁻³
dm_exc_ymw16
2110.7pc cm⁻³

Arrival time

mjd_400
59052.865606960164± 6.68 × 10⁻¹⁰MJD
mjd_inf
59052.864960010134± 1.51 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000510± 0.0000124s
scat_time
0.000000s

Flux and spectrum

flux
0.83± 0.22Jy
fluence
2.64± 0.40Jy ms
peak_freq
596.5MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
2.37± 1.67
sp_run
-2.97± 1.86

Exposure and fluence thresholds

exp_up
80.38± 47.74hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.4Jy ms
low_ft_95
—
up_ft_95
4.0Jy ms

Fit quality

chi_sq
1528877.019
dof
1529274
flag_frac
0.424
