CHIME/FRBPublic data

FRB 20200722C

One-off burst

Event ID
104225736
Arrival, 400 MHz
2020-07-22 17:47:59.185 UTC
Right ascension
84.926°
Declination
79.788°

Loading

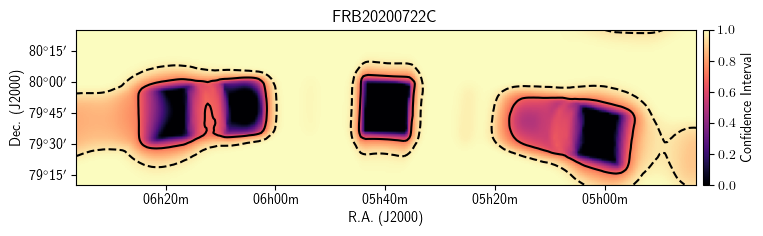

Localization

Loading

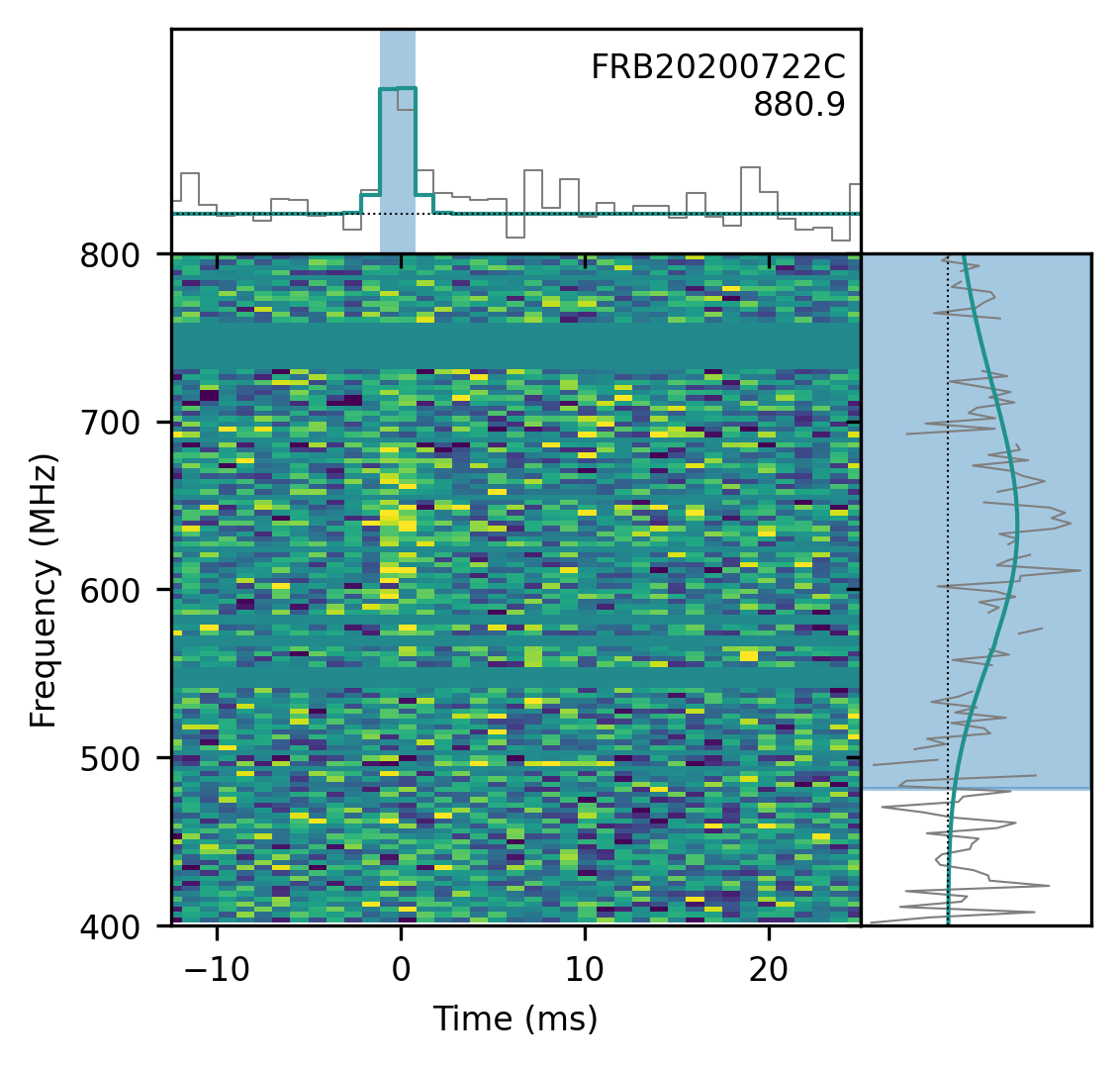

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
84.926± 0.226degrees
dec
79.788± 0.266degrees
gl
133.54degrees
gb
23.59degrees

Detection and dispersion

bonsai_snr
11.7
snr_fitb
14.4
bonsai_dm
881.5pc cm⁻³
dm_fitb
880.9402± 0.02831pc cm⁻³
dm_exc_ne2001
817.3pc cm⁻³
dm_exc_ymw16
815.0pc cm⁻³

Arrival time

mjd_400
59052.74165722975± 5.25 × 10⁻⁹MJD
mjd_inf
59052.74139306696± 9.98 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000550± 0.0000492s
scat_time
0.000000s

Flux and spectrum

flux
0.85± 0.41Jy
fluence
2.96± 1.62Jy ms
peak_freq
636.6MHz
low_freq
481.4MHz
high_freq
800.2MHz
sp_idx
27.37± 7.41
sp_run
-29.48± 7.92

Exposure and fluence thresholds

exp_up
420.00± 226.34hour
exp_low
413.67± 227.39hour
low_ft_68
10.8Jy ms
up_ft_68
3.4Jy ms
low_ft_95
22.3Jy ms
up_ft_95
7.0Jy ms

Fit quality

chi_sq
1932129.905
dof
1932330
flag_frac
0.272
