FRB 20200809A

One-off burst

Event ID
114225517
Arrival, 400 MHz
2020-08-09 21:38:41.474 UTC
Right ascension
163.635°
Declination
28.418°

Loading

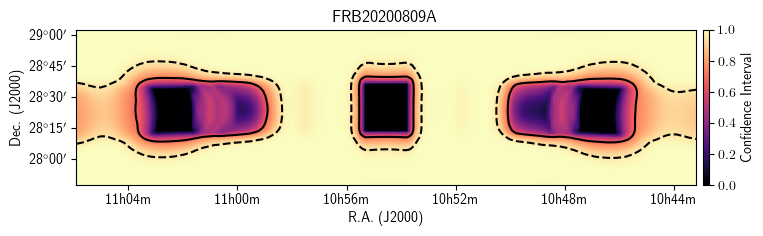

Localization

Loading

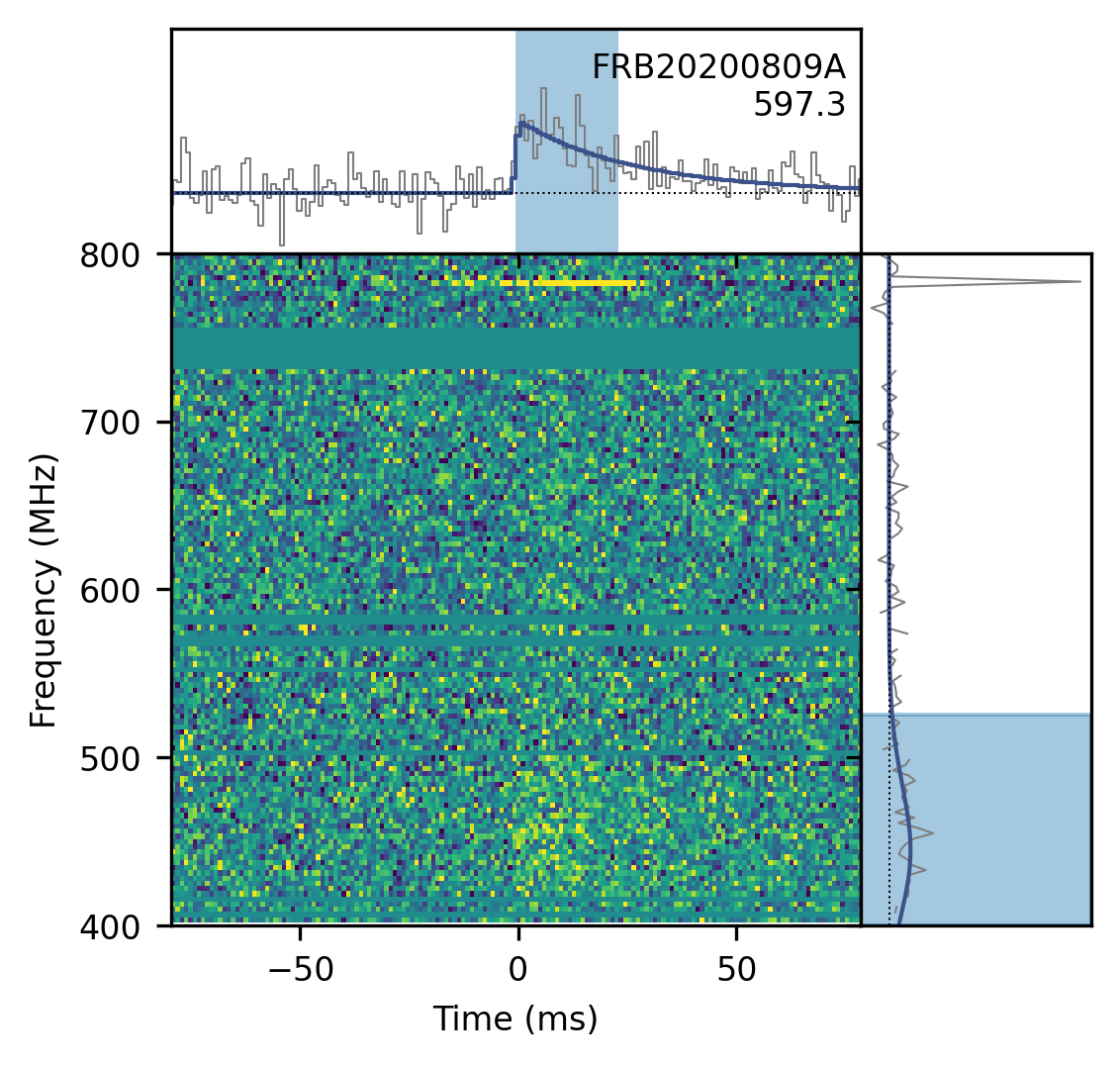

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
163.635± 0.220degrees
dec
28.418± 0.245degrees
gl
203.21degrees
gb
64.17degrees

Detection and dispersion

bonsai_snr
10.6
snr_fitb
15.9
bonsai_dm
601.7pc cm⁻³
dm_fitb
597.3311± 0.07855pc cm⁻³
dm_exc_ne2001
567.2pc cm⁻³
dm_exc_ymw16
577.7pc cm⁻³

Arrival time

mjd_400
59070.90186890934± 5.33 × 10⁻⁹MJD
mjd_inf
59070.90168979087± 2.42 × 10⁻⁸MJD

Burst shape

bc_width
0.02359s
width_fitb
0.000162± 0.0002514s
scat_time
0.045863± 0.0063594s

Flux and spectrum

flux
0.33± 0.21Jy
fluence
1.02± 0.78Jy ms
peak_freq
436.3MHz
low_freq
400.2MHz
high_freq
525.4MHz
sp_idx
11.55± 3.94
sp_run
-66.79± 16.05

Exposure and fluence thresholds

exp_up
75.23± 46.22hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.9Jy ms
low_ft_95
—
up_ft_95
1.9Jy ms

Fit quality

chi_sq
2166012.064
dof
2166257
flag_frac
0.184
