CHIME/FRBPublic data

FRB 20200809B

One-off burst

Event ID
114214706
Arrival, 400 MHz
2020-08-09 19:24:44.724 UTC
Right ascension
311.827°
Declination
85.341°

Loading

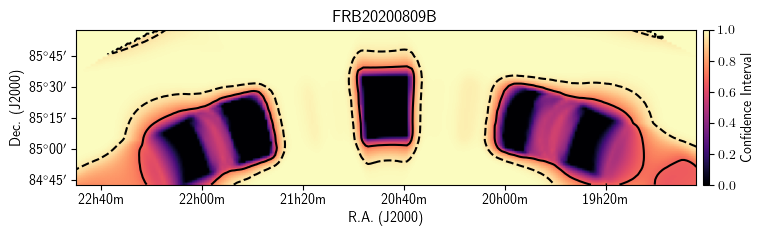

Localization

Loading

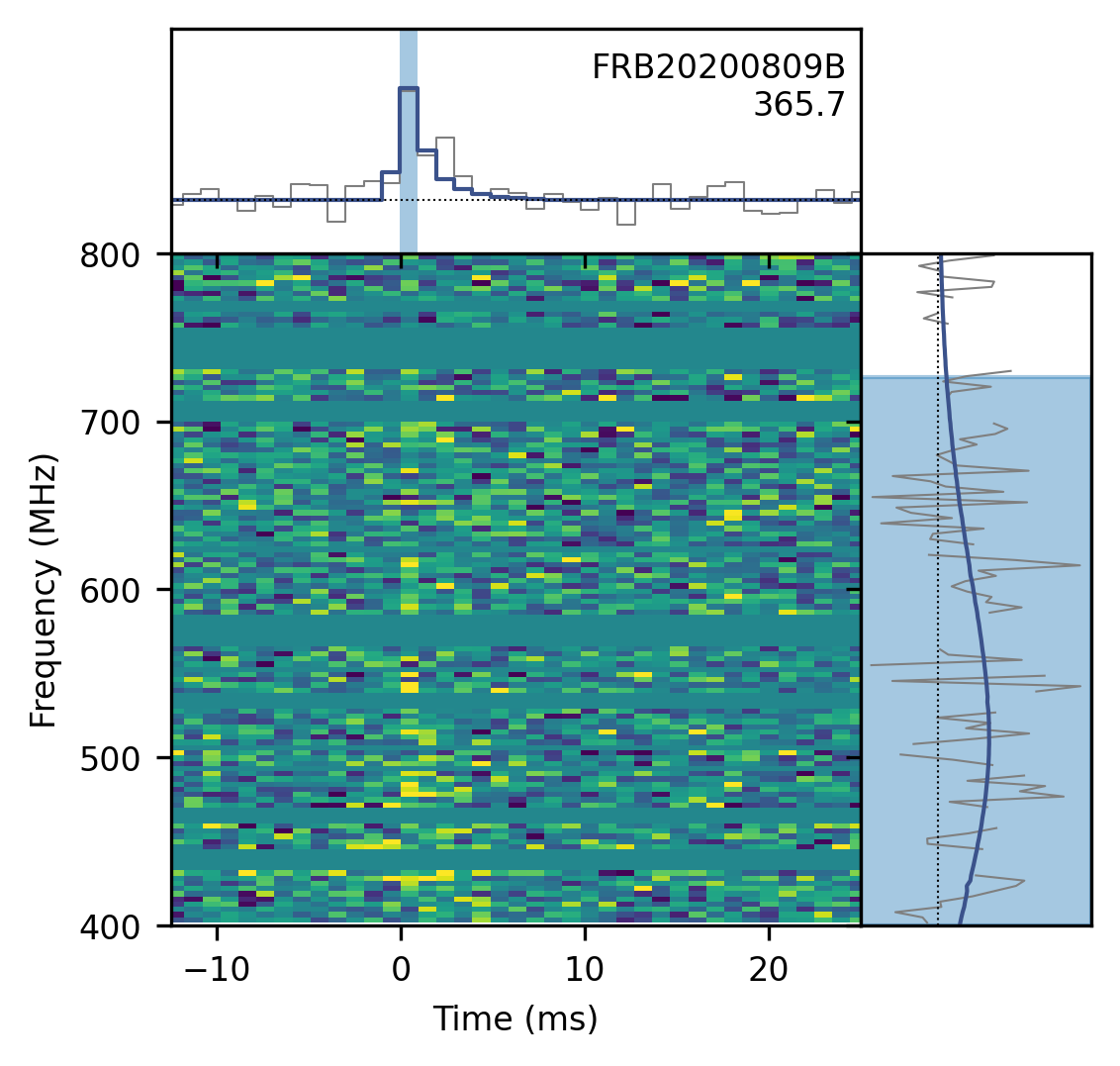

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
311.827± 0.230degrees
dec
85.341± 0.323degrees
gl
118.44degrees
gb
24.80degrees

Detection and dispersion

bonsai_snr
9.7
snr_fitb
11.8
bonsai_dm
367.2pc cm⁻³
dm_fitb
365.7061± 0.00343pc cm⁻³
dm_exc_ne2001
306.8pc cm⁻³
dm_exc_ymw16
307.9pc cm⁻³

Arrival time

mjd_400
59070.80885097346± 5.24 × 10⁻¹⁰MJD
mjd_inf
59070.808741311135± 1.15 × 10⁻⁹MJD

Burst shape

bc_width
0.00098s
width_fitb
0.000022± 0.0000171s
scat_time
0.002827± 0.0004094s

Flux and spectrum

flux
0.68± 0.32Jy
fluence
2.24± 0.87Jy ms
peak_freq
462.3MHz
low_freq
400.2MHz
high_freq
726.3MHz
sp_idx
3.25± 2.29
sp_run
-11.28± 4.04

Exposure and fluence thresholds

exp_up
896.20± 419.53hour
exp_low
948.01± 465.35hour
low_ft_68
1.1Jy ms
up_ft_68
0.6Jy ms
low_ft_95
2.0Jy ms
up_ft_95
1.2Jy ms

Fit quality

chi_sq
1859459.361
dof
1859591
flag_frac
0.299
