FRB 20200814A

One-off burst

Event ID
116766422
Arrival, 400 MHz
2020-08-14 22:51:36.543 UTC
Right ascension
188.343°
Declination
70.017°

Loading

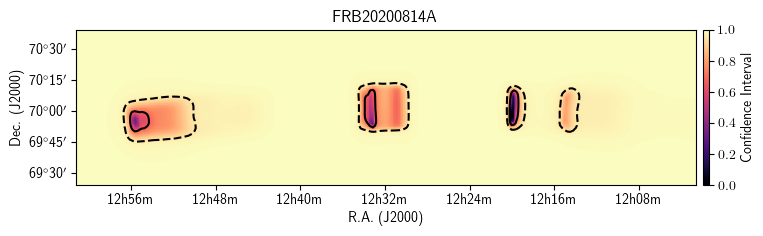

Localization

Loading

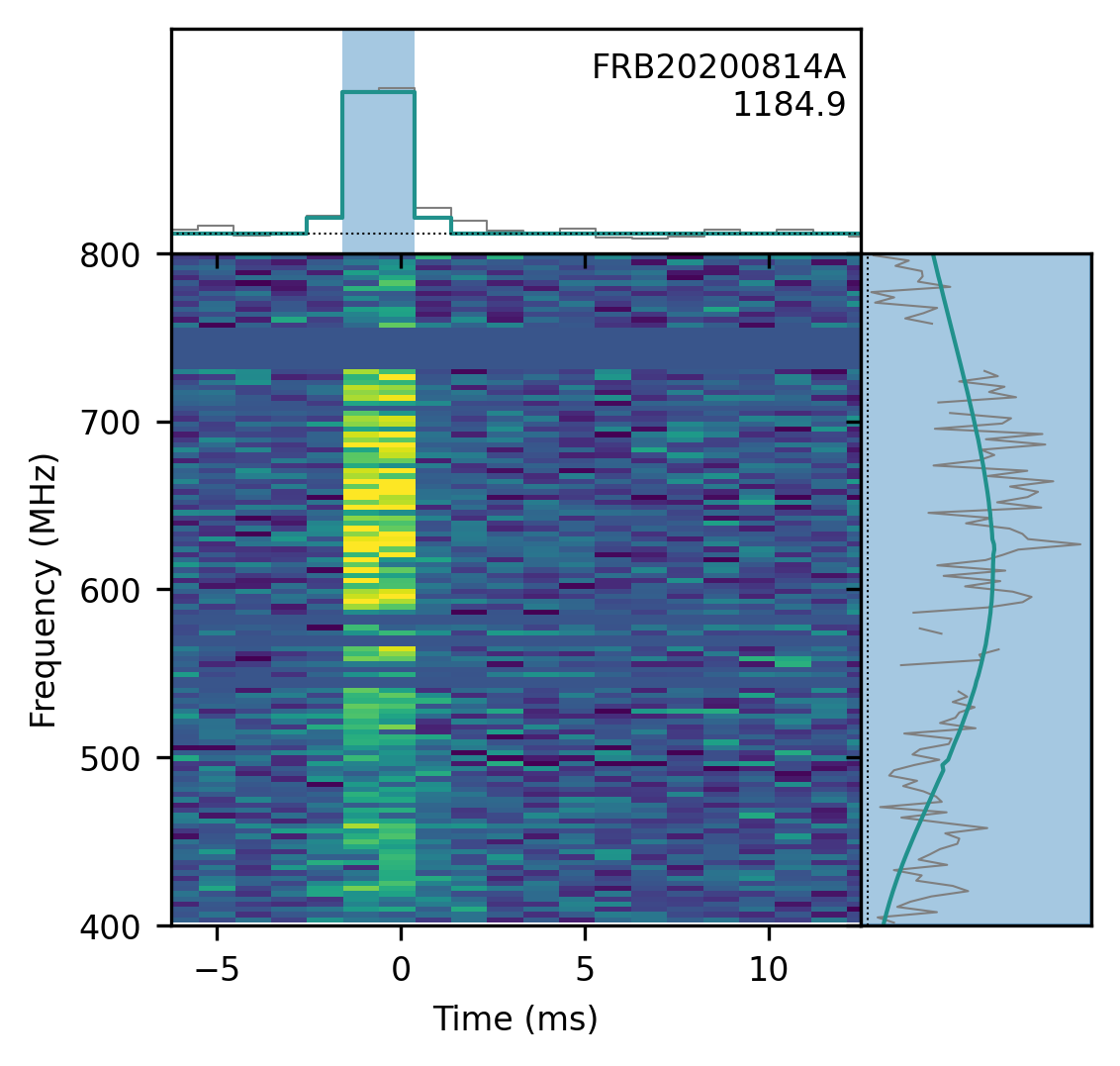

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
188.343± 0.046degrees
dec
70.017± 0.152degrees
gl
125.19degrees
gb
47.03degrees

Detection and dispersion

bonsai_snr
41.4
snr_fitb
59.3
bonsai_dm
1182.4pc cm⁻³
dm_fitb
1184.8712± 0.00135pc cm⁻³
dm_exc_ne2001
1148.7pc cm⁻³
dm_exc_ymw16
1156.6pc cm⁻³

Arrival time

mjd_400
59075.95250629008± 2.24 × 10⁻¹⁰MJD
mjd_inf
59075.952150989135± 4.61 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000343± 0.0000030s
scat_time
0.000000s

Flux and spectrum

flux
2.45± 0.99Jy
fluence
5.67± 2.16Jy ms
peak_freq
604.3MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
7.22± 0.72
sp_run
-8.76± 0.81

Exposure and fluence thresholds

exp_up
257.17± 91.03hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.9Jy ms
low_ft_95
—
up_ft_95
3.4Jy ms

Fit quality

chi_sq
2128083.750
dof
2131590
flag_frac
0.197
